1.27mm (0.05") Pitch PCB Connector - Archer M50 IDC

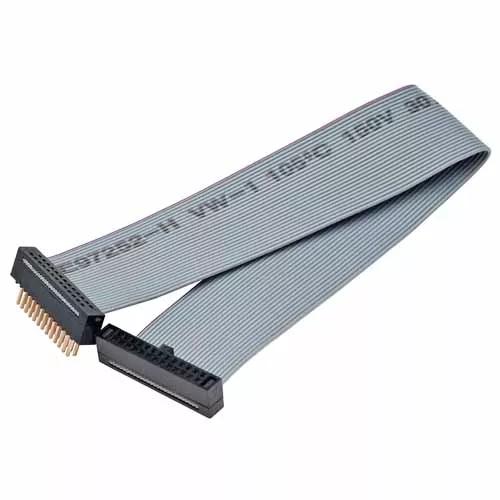

Female-to-Male IDC Cable Assembly (Socket to DIP Transition), 150mm (6") long cable (0.635mm pitch ribbon) - 26 contacts (13+13).
Manufactured with M50-3301342 and M50-3801342 IDC connectors. Gold finish on contact areas.
Ribbon cable is 0.635mm pitch, 30AWG to UL2678.
View Technical Details & Downloads
Checking stock availability...
Check Availability
Related Products
Further Details
Jump To:
Product Characteristics
Materials
Dimensions
Technical Documentation
Product Information
Environmental Compliance
Technical Details
Product Characteristics
End Stackable:
No
Mating Pin Size:
0.4mm square
Number of Rows:
2
Connector Orientation:
Angled
Country of Origin:
CN
Side Stackable:
No
Number of Signal Contacts:
26
Operating Temperature:
-40°C to +105°C
RoHS Status:
RoHS Compliant (2015/863/EU) with no Exemption required
Current Rating:
0.5A per contact
Polarised:
Yes
Cuttable:
No
Materials
Finish / Plating on Contact Surface:
Gold
Housing Material:
PBT
Base Material of Contact:
Phosphor Bronze
Flammability Rating:
UL94V-0
Packaging Style:
Bulk/Loose
Finish / Plating on Termination:
100% Tin over Nickel
Housing Colour:
Black
Dimensions
Contact Pitch:
1.27mm (0.05")
Weight:
4.706g
Dimensions:
156.10 x 20.71 x 8.20
Downloads
Technical Drawing / Datasheet - M50-90X.pdf
C029XX Component Specification - Archer M50 and M52 Series (1.27mm pitch PCB connectors)
Catalog page - Archer M50 IDC Specification + Mating Profiles
Product Training Module - Overview Guide to the Harwin Archer range
Product Training Module - Cable Connectors and Assemblies from Harwin
Product Training Module - Cable Products from Harwin
Product Datasheet - ARCHER: M50 and M52 ranges (BBi)
REACH - Harwin statement including all current SVHCs & Annex XIV & XVII
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Environmental Legislation Statement - includes all material legislations
Material composition for M50-901 series
RoHS - M50-9011342
