M50-9010542
5+5 Pos. Male-Female DIL Cable Assembly, 150mm
1.27mm (0.05") Pitch PCB Connector - Archer M50 IDC
Loading… Check availability
5 similar products View products
Traceparts account required
Product Description

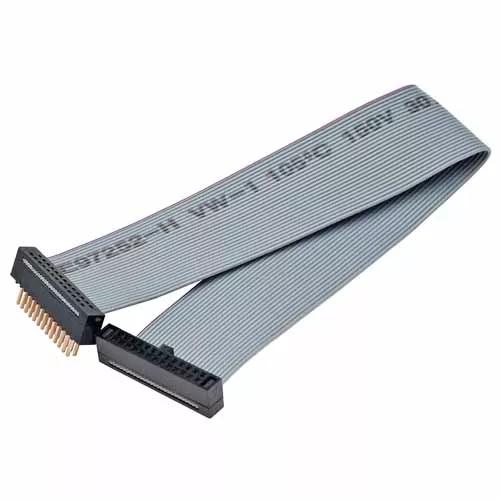

- Female-to-Male IDC Cable Assembly (Socket to DIP Transition), 150mm (6″) long cable (0.635mm pitch ribbon) – 10 contacts (5+5).
- Manufactured with M50-3300542 and M50-3800542 IDC connectors. Gold finish on contact areas.
- Ribbon cable is 0.635mm pitch, 30AWG to UL2678.
Traceparts account required
Technical Details
Specification
EU RoHS Status:
Contact Pitch:
1.27mm (0.05")
Contact Gender:
Male & Female
Connector Orientation:
Angled
Connection Type:
Cable Assembly
Mating Pin Size:
0.4mm square
Current Rating:
0.5A per contact
Operating Temperature:
-40°C to +105°C
Polarising Features:
Yes
End Stackable:
No
Side Stackable:
No
Can be cut to another size:
No
Number of Rows:
2
Number of Signal Contacts:
10
Materials
Finish / Plating on Termination:
100% Tin over Nickel
Finish / Plating on Contact Surface:
Gold
Base Material of Contact:
Phosphor Bronze
Housing Material:
PBT
Housing Colour:
Black
Housing Material UL Rating:
UL94V-0
Packaging Style:
Bulk/Loose
Dimensions
Individual Part Weight:
1.931g
Overall Dimensions (L x W x D) in mm:
156.10 x 10.55 x 8.20
Mating Profiles:
Frequently Asked Questions Ask a Question
Do the cables connect PIN 1 to PIN 1 of the connectors at the two ends and so on?
Yes, these cable assemblies are contact 1 to contact 1, contact 2 to contact 2 and so on.
