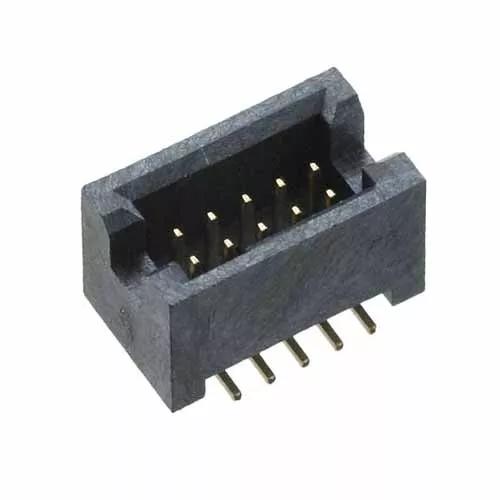

5+5 Pos. Male DIL Vertical SMT Conn.
1.27mm (0.05") Pitch PCB Connector - Archer M50 Polarized
- Double Row Surface Mount, shrouded and single polarization, no locating pegs – 10 contacts (5+5).
- Gold finish on contact area and termination.
- Packaged in tubes.
EU RoHS Status:
Surface Mount (SMT)
Mating Pin Size:
1A per contact
-40°C to +105°C
Max Solder Temperature: 260°C for 10 seconds
Can be cut to another size:
Number of Rows:
Number of Signal Contacts:
Finish / Plating on Termination:
Finish / Plating on Contact Surface:
Base Material of Contact:
Housing Material UL Rating:
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
9.55 x 6.50 x 6.10
Height of Connector above PCB:
M50-4900545 CAD Model (ZIP file containing STP and IGES)Download
