M50-4801245

12+12 Pos. Male DIL Horizontal Throughboard Conn.

1.27mm (0.05") Pitch PCB Connector - Archer M50 Polarized

Order Sample

Add to Favorites

1,681 in stock Check availability

6 similiar products View products

Traceparts account required

Product Description

Double Row, 2.1mm PC Tail, shrouded and single polarization – 24 contacts (12+12).
Gold finish on contact area and termination.

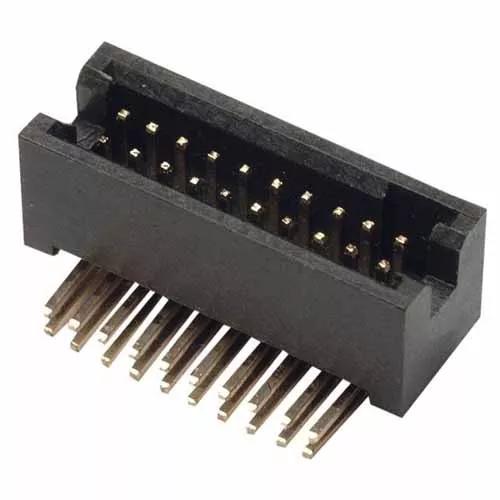

M50-4801245 - 12+12 Pos. Male DIL Horizontal Throughboard Conn.

Representative image of product family

Traceparts account required

Technical Details

EU RoHS Status:

RoHS Compliant (2015/863/EU) with no Exemption required

Contact Pitch:

1.27mm (0.05")

Contact Gender:

Male/Plug

Connector Orientation:

Horizontal

Connection Type:

PC Tail / Throughboard

Mating Pin Size:

0.4mm square

Current Rating:

1A per contact

Operating Temperature:

-40°C to +105°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

Yes

End Stackable:

Side Stackable:

Can be cut to another size:

Number of Rows:

Number of Signal Contacts:

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Copper Alloy

Housing Material:

LCP

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tube

Individual Part Weight:

0.906g

Overall Dimensions (L x W x D) in mm:

18.44 x 7.67 x 7.75

Height of Connector above PCB:

5.65mm

Length of Throughboard Tail:

2.10mm

Mating Profiles:
