Active Product

M50-4800545

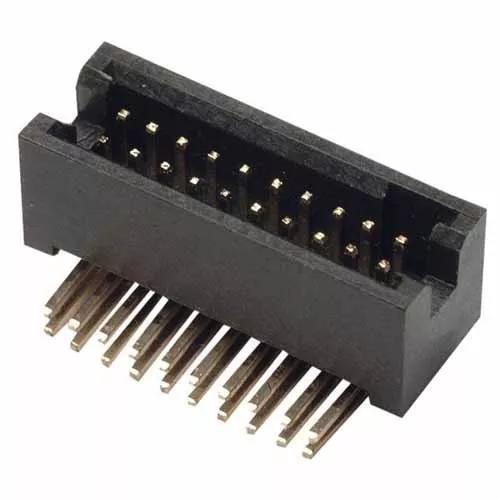

5+5 Pos. Male DIL Horizontal Throughboard Conn.

1.27mm (0.05") Pitch PCB Connector - Archer M50 Polarized

Add to Favorites

Loading…   Check availability

6 similar products View products

Traceparts account required

Product Description

  • Double Row, 2.1mm PC Tail, shrouded and single polarization – 10 contacts (5+5).
  • Gold finish on contact area and termination.

Technical Details

Specification

Contact Pitch:

1.27mm (0.05")

Contact Gender:

Male/Plug

Connector Orientation:

Horizontal

Connection Type:

PC Tail / Throughboard

Mating Pin Size:

0.4mm square

Current Rating:

1A per contact

Operating Temperature:

-40°C to +105°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

10

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Copper Alloy

Housing Material:

LCP

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tube

Dimensions

Individual Part Weight:

0.449g

Overall Dimensions (L x W x D) in mm:

9.55 x 7.67 x 7.75

Height of Connector above PCB:

5.65mm

Length of Throughboard Tail:

2.10mm
