M50-4701045

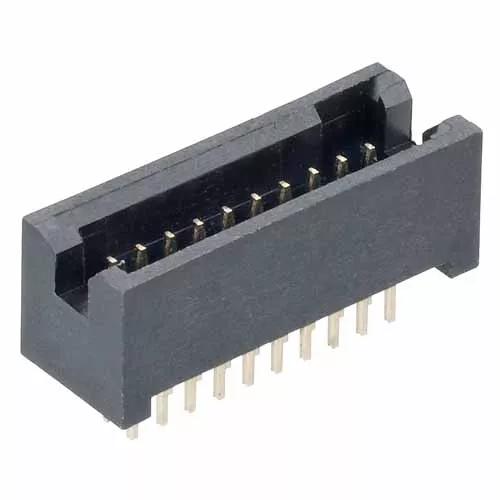

10+10 Pos. Male DIL Vertical Throughboard Conn.

1.27mm (0.05") Pitch PCB Connector - Archer M50 Polarized

  • Double Row, 2.3mm PC Tail, shrouded and single polarization – 20 contacts (10+10).
  • Gold finish on contact area and termination.
Add to Favorites

Technical Details

Specification

Contact Pitch:

1.27mm (0.05")

Contact Gender:

Male/Plug

Connector Orientation:

Vertical

Connection Type:

PC Tail / Throughboard

Mating Pin Size:

0.4mm square

Current Rating:

1A per contact

Operating Temperature:

-40°C to +105°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

20

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Copper Alloy

Housing Material:

LCP

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tube

Dimensions

Individual Part Weight:

0.602g

Overall Dimensions (L x W x D) in mm:

15.90 x 5.65 x 8.00

Height of Connector above PCB:

5.70mm

Length of Throughboard Tail:

2.30mm

Availability

980 in stock

Info Circle

Low availability or made to order: This product is typically manufactured to order. When out of stock, minimum order quantities may apply.

Limited availability or made-to-order
Distributor Location Quantity (Updated Daily)
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 421
Distributor Anglia
Location Europe
Quantity (Updated Daily) 410
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 149

Questions & Answers Ask a Question

No questions have been asked yet. Click here to ask a question.

Downloads

TECHNICAL DOCUMENTS

PDF

Technical Drawing / Datasheet - M50-470.pdf

ZIP

M50-4701045 CAD Model (ZIP file containing STP and IGES)

Download
PDF

C029XX Component Specification - Archer M50 and M52 Series (1.27mm pitch PCB connectors)

ENVIRONMENTAL COMPLIANCE

PDF

RoHS Compliant (2015/863/EU) with no Exemption required

PDF

REACH Harwin statement (12-Feb-2021) including 211 SVHC (19-Jan-2021), Annex XIV & XVII

XLSX

Conflict Minerals Reporting Template (CMRT 6.01) - Company Summary Statement

XLSX

Cobalt Reporting Template (CRT 2.2) - Company Summary Statement

PDF

Environmental Legislation Statement (12-Feb-2021) - includes all material legislations

PDF

Material composition for M50-470 series

INSTRUCTION SHEETS

PDF

Product Training Module - Overview Guide to the Harwin Archer range

OTHER DOWNLOADS

PDF

3D PDF file - M50-4701045_3D.pdf

PDF

Catalog page - Archer Polarized Male Throughboard

PDF

Catalog page - Archer Polarized Specification, Mating Profiles

PDF

Product Summary - Archer range, PCB and IDC Connectors

PDF

Outgassing data for Harwin products (plastics)
