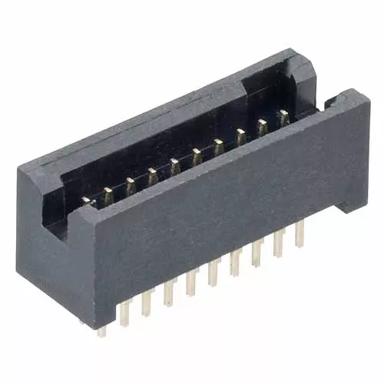

5+5 Pos. Male DIL Vertical Throughboard Conn.
1.27mm (0.05") Pitch PCB Connector - Archer M50 Polarized
- Double Row, 2.3mm PC Tail, shrouded and single polarization – 10 contacts (5+5).
- Gold finish on contact area and termination.
EU RoHS Status:
PC Tail / Throughboard
Mating Pin Size:
1A per contact
-40°C to +105°C
Max Solder Temperature: 260°C for 10 seconds
Can be cut to another size:
Number of Rows:
Number of Signal Contacts:
Finish / Plating on Termination:
Finish / Plating on Contact Surface:
Base Material of Contact:
Housing Material UL Rating:
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
9.55 x 5.65 x 8.00
Height of Connector above PCB:
Length of Throughboard Tail:
M50-4700545 CAD Model (ZIP file containing STP and IGES)Download
