M50-4302045

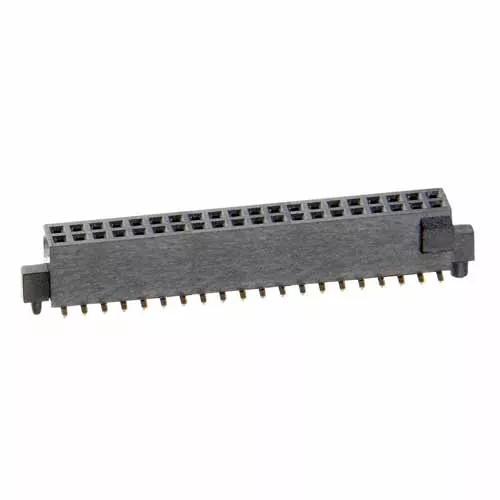

20+20 Pos. Female DIL Vertical SMT Conn.

1.27mm (0.05") Pitch PCB Connector - Archer M50 Polarized

  • Double Row Surface Mount, 4.6mm connector height – 40 contacts (20+20).
  • Gold finish on contact area and termination. With location pegs and single polarization.
  • Packaged in tubes.
Add to Favorites

Technical Details

Specification

Contact Pitch:

1.27mm (0.05")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Vertical

Connection Type:

Surface Mount (SMT)

Mating Pin Size:

0.4mm square

Current Rating:

1A per contact

Operating Temperature:

-40°C to +105°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

40

Entry Style:

Top Entry

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Phosphor Bronze

Housing Material:

LCP

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tube

Dimensions

Individual Part Weight:

0.701g

Overall Dimensions (L x W x D) in mm:

29.15 x 4.80 x 5.50

Height of Connector above PCB:

4.60mm

Availability

2,500 in stock

Info Circle

Low availability or made to order: This product is typically manufactured to order. When out of stock, minimum order quantities may apply.

Limited availability or made-to-order
