M50-4301545R

15+15 Pos. Female DIL Vertical SMT Conn. (T+R)

1.27mm (0.05") Pitch PCB Connector - Archer M50 Polarized

Order Sample

Add to Favorites

In stock Check availability

7 similar products View products

Traceparts account required

Product Description

Double Row Surface Mount, 4.6mm connector height – 30 contacts (15+15).
Gold finish on contact area and termination. With location pegs and single polarization.
Packaged in Tape & Reel, with Pick & Place caps.

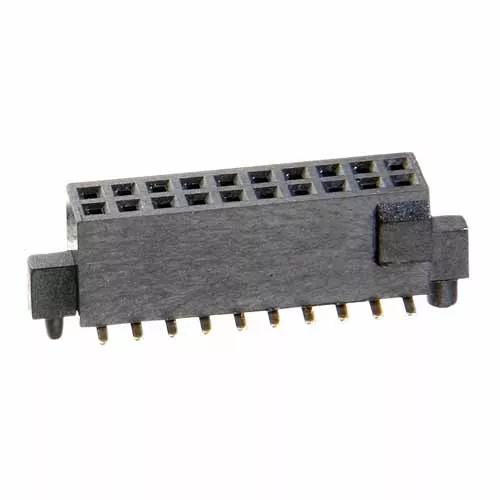

M50-4301545R - 15+15 Pos. Female DIL Vertical SMT Conn. (T+R)

Representative image of product family

Traceparts account required

Technical Details

EU RoHS Status:

RoHS Compliant (2015/863/EU) with no Exemption required

Contact Pitch:

1.27mm (0.05")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Vertical

Connection Type:

Surface Mount (SMT)

Mating Pin Size:

0.4mm square

Current Rating:

1A per contact

Operating Temperature:

-40°C to +105°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

Yes

End Stackable:

Side Stackable:

Can be cut to another size:

Number of Rows:

Number of Signal Contacts:

Entry Style:

Top Entry

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Phosphor Bronze

Housing Material:

LCP

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tape and Reel

Individual Part Weight:

0.57g

Overall Dimensions (L x W x D) in mm:

22.80 x 4.80 x 5.50

Height of Connector above PCB:

4.60mm

Mating Profiles:

Catalog page - Archer Polarized Specification, Mating Profiles
