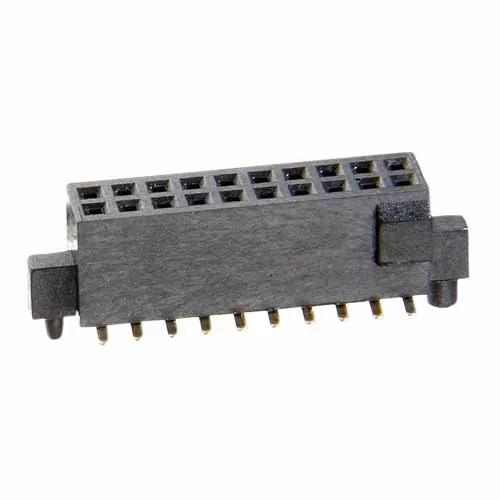

10+10 Pos. Female DIL Vertical SMT Conn.
1.27mm (0.05") Pitch PCB Connector - Archer M50 Polarized
- Double Row SMT, 4.6mm connector height – 20 contacts (10+10).
- Gold finish on contact area and termination. With location pegs and single polarization.
- Packaged in tubes.
EU RoHS Status:
Surface Mount (SMT)
Mating Pin Size:
-40°C to +105°C
Max Solder Temperature: 260°C for 10 seconds
Can be cut to another size:
Number of Rows:
Number of Signal Contacts:
Finish / Plating on Termination:
Finish / Plating on Contact Surface:
Base Material of Contact:
Housing Material UL Rating:
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
16.45 x 4.80 x 5.50
Height of Connector above PCB:
M50-4301045 CAD Model (ZIP file containing STP and IGES)Download
