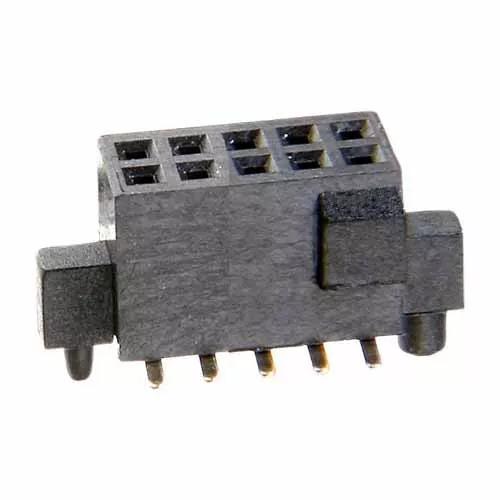

Image may be representative. Refer to the product title for more information.
Double Row Surface Mount, 4.6mm connector height - 10 contacts (5+5).
Gold finish on contact area and termination. With location pegs and single polarization.
Packaged in tubes.
Checking stock availability...
Technical Drawings & CADs
Jump to technical details
TraceParts
CAD/ECAD
TraceParts
3D Viewer
SamacSys
3D Model, PCB Symbol & Footprint
Related Products
Further Details
Jump To:
Technical Details
Product Characteristics
Materials
Dimensions
Downloads
Product Change Notifications
Technical Documentation
Product Information
Environmental Compliance
Technical Details
Product Characteristics
End Stackable
No
Entry Style
Top Entry
Mating Pin Size
0.4mm square
Number of Rows
2
Connector Orientation
Vertical
Country of Origin
CN
Side Stackable
No
Number of Signal Contacts
10
Operating Temperature
-40°C to +105°C
RoHS Status
RoHS Compliant (2015/863/EU) with no Exemption required
Current Rating
1A per contact
Soldering Data
Max Solder Temperature: 260°C for 10 seconds
Polarised
Yes
Cuttable
No
Materials
Finish / Plating on Contact Surface
Gold
Housing Material
LCP
Base Material of Contact
Phosphor Bronze
Flammability Rating
UL94V-0
Packaging Style
Tube
Finish / Plating on Termination
Gold
Housing Colour
Black
Dimensions
Contact Pitch
1.27mm (0.05")
Weight
0.197g
Dimensions
10.10 x 4.80 x 5.50
Height of Connector above PCB
4.60mm
Downloads
Technical Documentation
Technical Drawing / Datasheet - M50-430.pdf
C029XX Component Specification - Archer M50 and M52 Series (1.27mm pitch PCB connectors)
Outgassing data for Harwin products (plastics)
Product Information
Catalog page - Archer Polarized Specification + Mating Profiles
Product Training Module - Overview Guide to the Harwin Archer range
Product Datasheet - ARCHER: M50 and M52 ranges (BBi)
Environmental Compliance
REACH - Harwin statement including all current SVHCs & Annex XIV & XVII
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Environmental Legislation Statement
Material composition for M50-430 series
RoHS Declaration - M50-4300545
