M50-3932042

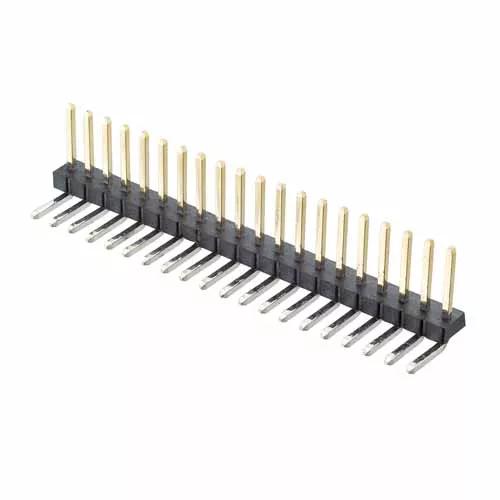

20 Pos. Male SIL Horizontal Throughboard Conn.

1.27mm (0.05") Pitch PCB Connector - Archer M50 Board-To-Board

  • Single Row, 2.4mm PC Tail, 4mm mating pin length – 20 contacts.
  • Gold finish on contact area, Tin finish on termination.
Add to Favorites

Technical Details

Specification

Contact Pitch:

1.27mm (0.05")

Contact Gender:

Male/Plug

Connector Orientation:

Horizontal

Connection Type:

PC Tail / Throughboard

Mating Pin Size:

0.4mm square

Current Rating:

1A per contact

Operating Temperature:

-40°C to +105°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

Yes

Number of Rows:

1

Number of Signal Contacts:

20

Materials

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Brass

Housing Material:

Polyamide (Nylon) 9T

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

0.308g

Overall Dimensions (L x W x D) in mm:

25.40 x 4.50 x 5.70

Height of Connector above PCB:

2.10mm

Length of Throughboard Tail:

2.40mm

Availability

4,161 in stock

Info Circle

Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.

Popular product
Distributor Location Quantity (Updated Daily)
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 2366
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 944
Distributor Farnell
Location Europe
Quantity (Updated Daily) 421
Distributor Iconnexion Asia Pte Ltd
Location Asia
Quantity (Updated Daily) 300
Distributor Newark
Location USA
Quantity (Updated Daily) 130

Questions & Answers Ask a Question

How do I cut down this pin header?

There is no hand cutting tool for this smaller pitch. You can use a fine slitting saw if you have access to cutting machinery, and this will give a clean edge.
