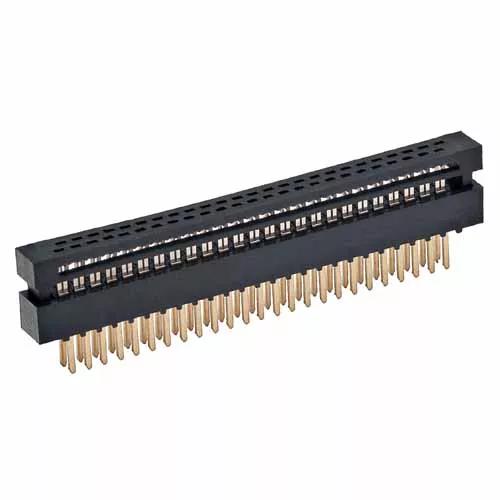

M50-3802542

25+25 Pos. Male DIL Ribbon Cable Connector

1.27mm (0.05") Pitch PCB Connector - Archer M50 IDC

  • Double Row Male IDC connector (DIP Transition Connector) – 50 contacts (25+25).
  • Gold finish on contact area, Tin finish on termination.
  • For use with 0.635mm pitch, 30AWG ribbon cable.
Add to Favorites

Technical Details

Specification

Contact Pitch:

1.27mm (0.05")

Contact Gender:

Male/Plug

Connector Orientation:

Angled

Connection Type:

Cable Connector

Mating Pin Size:

0.4mm square

Current Rating:

0.5A per contact

Operating Temperature:

-40°C to +105°C

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

50

Materials

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Phosphor Bronze

Housing Material:

PBT

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tube

Dimensions

Individual Part Weight:

1.28g

Overall Dimensions (L x W x D) in mm:

35.95 x 3.00 x 8.20

Availability

2,204 in stock

Info Circle

Low availability or made to order”: “This product is typically manufactured to order. When out of stock, minimum order quantities may apply.

Limited availability or made-to-order
Distributor Location Quantity (Updated Daily)
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 1212
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 912
Distributor Anglia
Location Europe
Quantity (Updated Daily) 80

Questions & Answers Ask a Question

No questions have been asked yet. Click here to ask a question.

Downloads

TECHNICAL DOCUMENTS

PDF

Technical Drawing / Datasheet - M50-380.pdf

ZIP

M50-3802542 CAD Model (ZIP file containing STP and IGES)

Download
PDF

C029XX Component Specification - Archer M50 and M52 Series (1.27mm pitch PCB connectors)

ENVIRONMENTAL COMPLIANCE

PDF

RoHS Compliant (2015/863/EU) with no Exemption required

PDF

REACH Harwin statement (6-Jul-2020) including 209 SVHC (25-Jun-2020), Annex XIV & XVII

XLSX

Conflict Minerals Reporting Template (CMRT 6.01) - Company Summary Statement

XLSX

Cobalt Reporting Template (CRT 2.2) - Company Summary Statement

PDF

Environmental Legislation Statement (16-Oct-2019) - includes all material legislations

PDF

Material composition for M50-380 series

INSTRUCTION SHEETS

PDF

Product Training Module - Overview Guide to the Harwin Archer range

PDF

Product Training Module - Cable Connectors and Assemblies from Harwin

PDF

Product Training Module - Cable Products from Harwin

PDF

IS-43 - Z50-020 IDC Termination Hand Tool Instruction Sheet

OTHER DOWNLOADS

PDF

3D PDF file - M50-3802542_3D.pdf

PDF

Catalog page - Archer M50 IDC Male Cable Connectors, Cable Assemblies

PDF

Catalog page - Archer M50 IDC Specification, Mating Profiles

PDF

Product Change Notification 14-Jul-2017 - Z50-020

PDF

Product Summary - Archer range, PCB and IDC Connectors
