Active

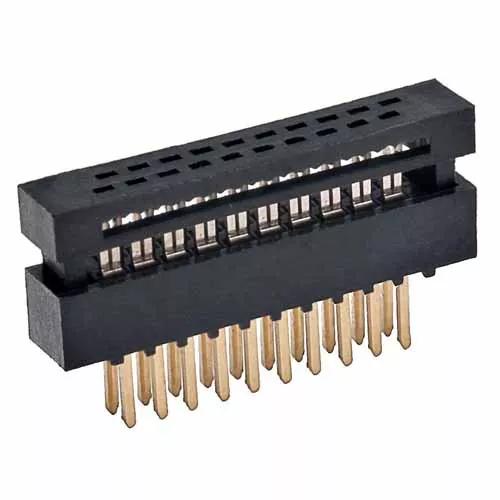

M50-3801042

10+10 Pos. Male DIL Ribbon Cable Connector

1.27mm (0.05") Pitch PCB Connector - Archer M50 IDC

Double Row Male IDC connector (DIP Transition Connector) – 20 contacts (10+10).
Gold finish on contact area, Tin finish on termination.
For use with 0.635mm pitch, 30AWG ribbon cable.

Request Samples

Availability

M50-3801042 - 10+10 Pos. Male DIL Ribbon Cable Connector

Technical Details

EU RoHS Status:

RoHS Compliant (2015/863/EU) with no Exemption required

Contact Pitch:

1.27mm (0.05")

Contact Gender:

Male/Plug

Connector Orientation:

Angled

Connection Type:

Cable (Ribbon IDC)

Mating Pin Size:

0.4mm square

Current Rating:

0.5A per contact

Operating Temperature:

-40°C to +105°C

Polarising Features:

Yes

End Stackable:

Side Stackable:

Can be cut to another size:

Number of Rows:

Number of Signal Contacts:

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Phosphor Bronze

Housing Material:

PBT

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tube

Individual Part Weight:

0.574g

Overall Dimensions (L x W x D) in mm:

16.90 x 3.00 x 8.20

Mating Profiles:

Catalog page - Archer M50 IDC Specification, Mating Profiles

Availability

727 in stock

Questions & Answers Ask a Question

No questions have been asked yet. Click here to ask a question.

Downloads

PDF

Technical Drawing / Datasheet - M50-380.pdf

ZIP

M50-3801042 CAD Model (ZIP file containing STP and IGES)

Download

PDF

C029XX Component Specification - Archer M50 and M52 Series (1.27mm pitch PCB connectors)

PDF

RoHS Compliant (2015/863/EU) with no Exemption required

PDF

REACH Harwin statement (12-Feb-2021) including 211 SVHC (19-Jan-2021), Annex XIV & XVII

XLSX

Conflict Minerals Reporting Template (CMRT 6.01) - Company Summary Statement

XLSX

Cobalt Reporting Template (CRT 2.2) - Company Summary Statement

PDF

Environmental Legislation Statement (12-Feb-2021) - includes all material legislations

PDF

Material composition for M50-380 series

PDF

Product Training Module - Overview Guide to the Harwin Archer range

PDF

Product Training Module - Cable Connectors and Assemblies from Harwin

PDF

Product Training Module - Cable Products from Harwin

PDF

IS-43 - Z50-020 IDC Termination Hand Tool Instruction Sheet

PDF

3D PDF file - M50-3801042_3D.pdf

PDF

Catalog page - Archer M50 IDC Male Cable Connectors, Cable Assemblies

PDF

Catalog page - Archer M50 IDC Specification, Mating Profiles

PDF

Product Change Notification 14-Jul-2017 - Z50-020

PDF

Product Summary - Archer range, PCB and IDC Connectors
