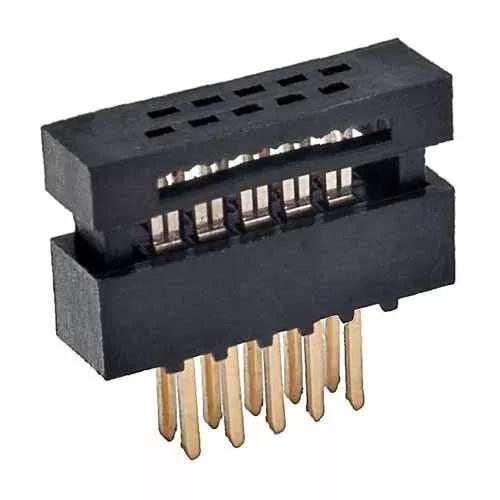

5+5 Pos. Male DIL Ribbon Cable Connector

1.27mm (0.05") Pitch PCB Connector - Archer M50 IDC

Double Row Male IDC connector (DIP Transition Connector) – 10 contacts (5+5).
Gold finish on contact area, Tin finish on termination.
For use with 0.635mm pitch, 30AWG ribbon cable.

Add to Basket

Availability

M50-3800542 - 5+5 Pos. Male DIL Ribbon Cable Connector

Technical Details

EU RoHS Status:

RoHS Compliant (2015/863/EU) with no Exemption required

Contact Pitch:

1.27mm (0.05")

Contact Gender:

Male/Plug

Connector Orientation:

Angled

Connection Type:

Cable (Ribbon IDC)

Mating Pin Size:

0.4mm square

Current Rating:

0.5A per contact

Operating Temperature:

-40°C to +105°C

Polarising Features:

Yes

End Stackable:

Side Stackable:

Can be cut to another size:

Number of Rows:

Number of Signal Contacts:

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Phosphor Bronze

Housing Material:

PBT

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tube

Individual Part Weight:

0.334g

Overall Dimensions (L x W x D) in mm:

10.55 x 3.00 x 8.20

Mating Profiles:

Catalog page - Archer M50 IDC Specification, Mating Profiles

Availability

2,223 in stock
