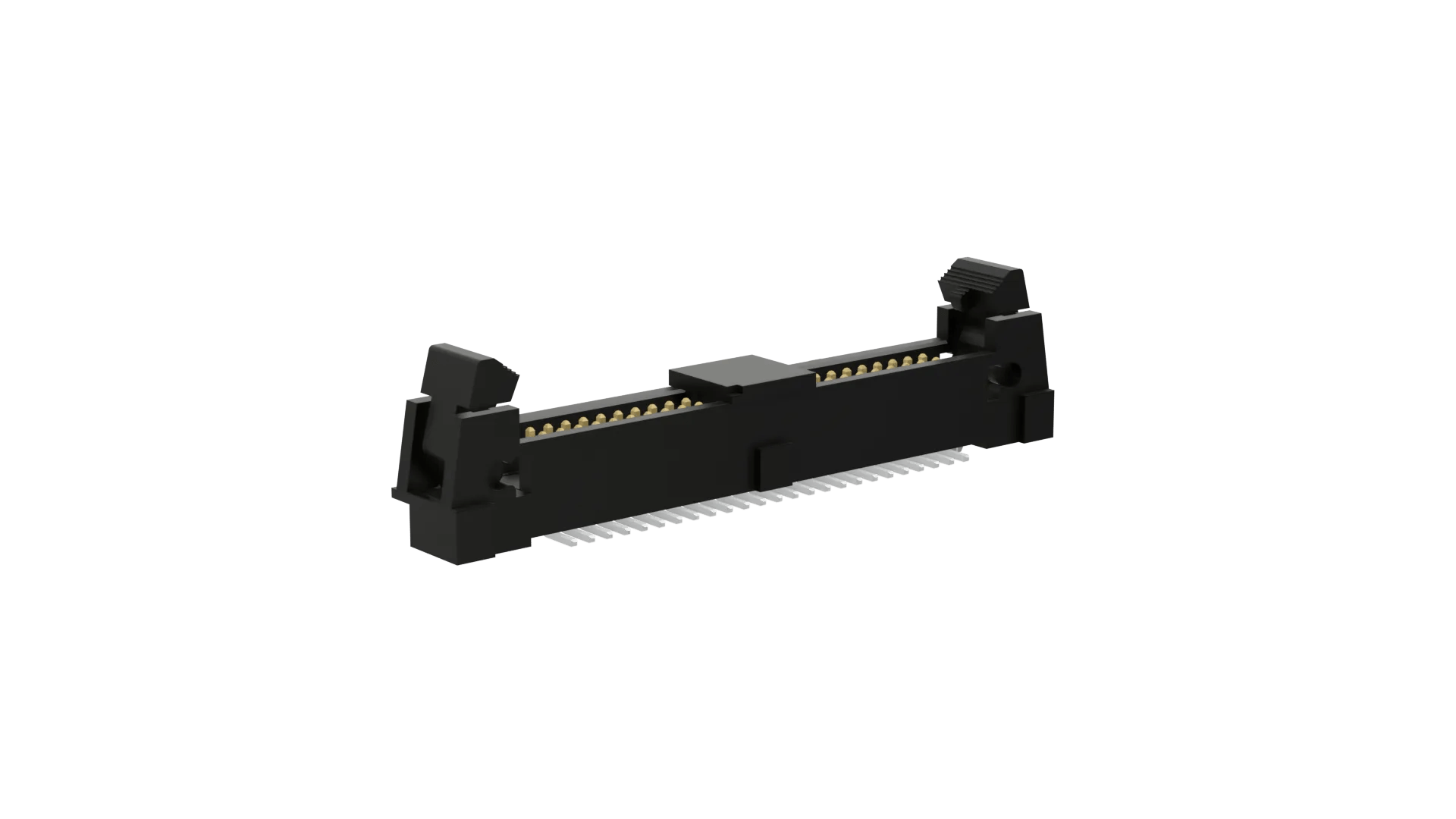

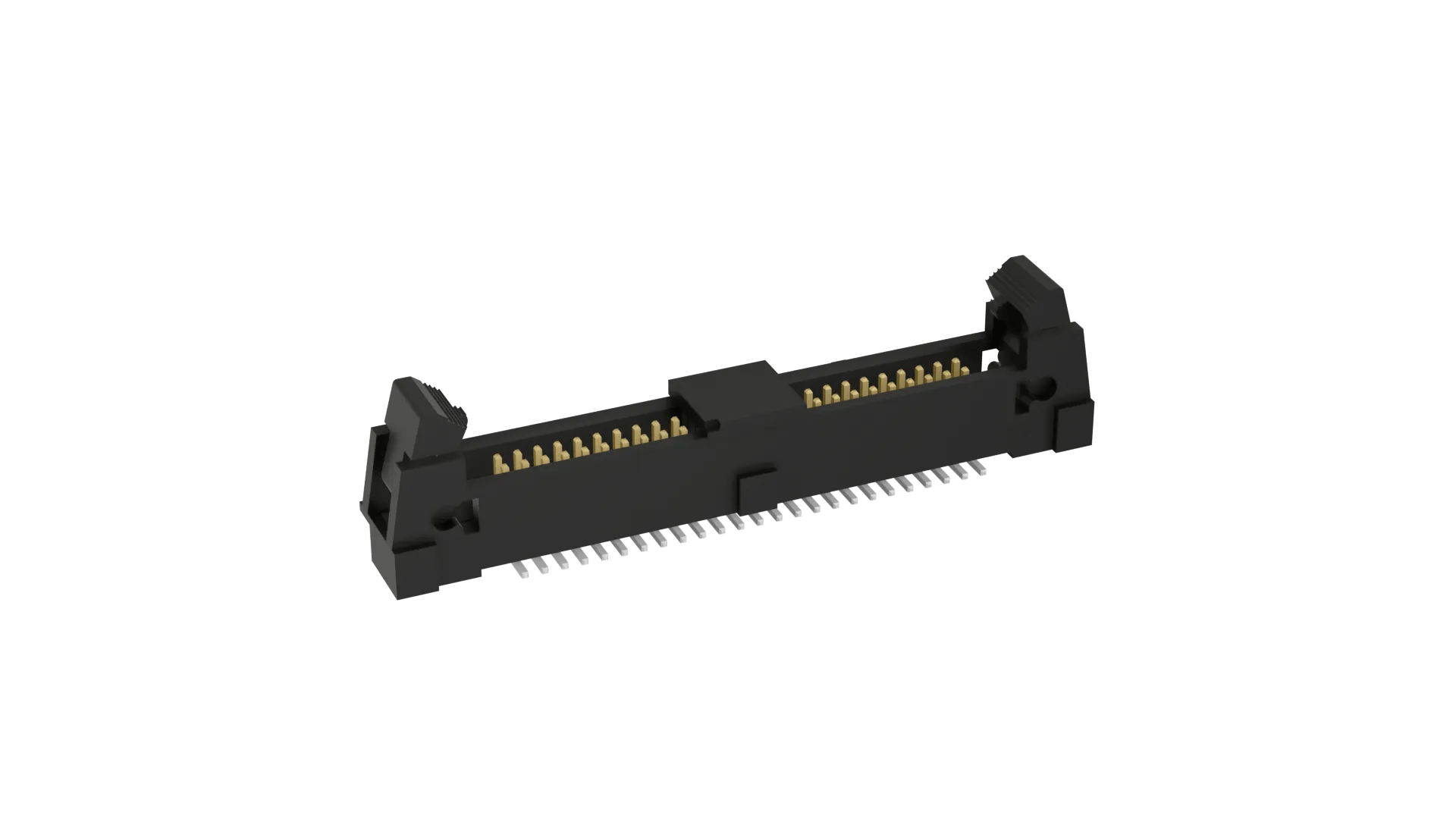

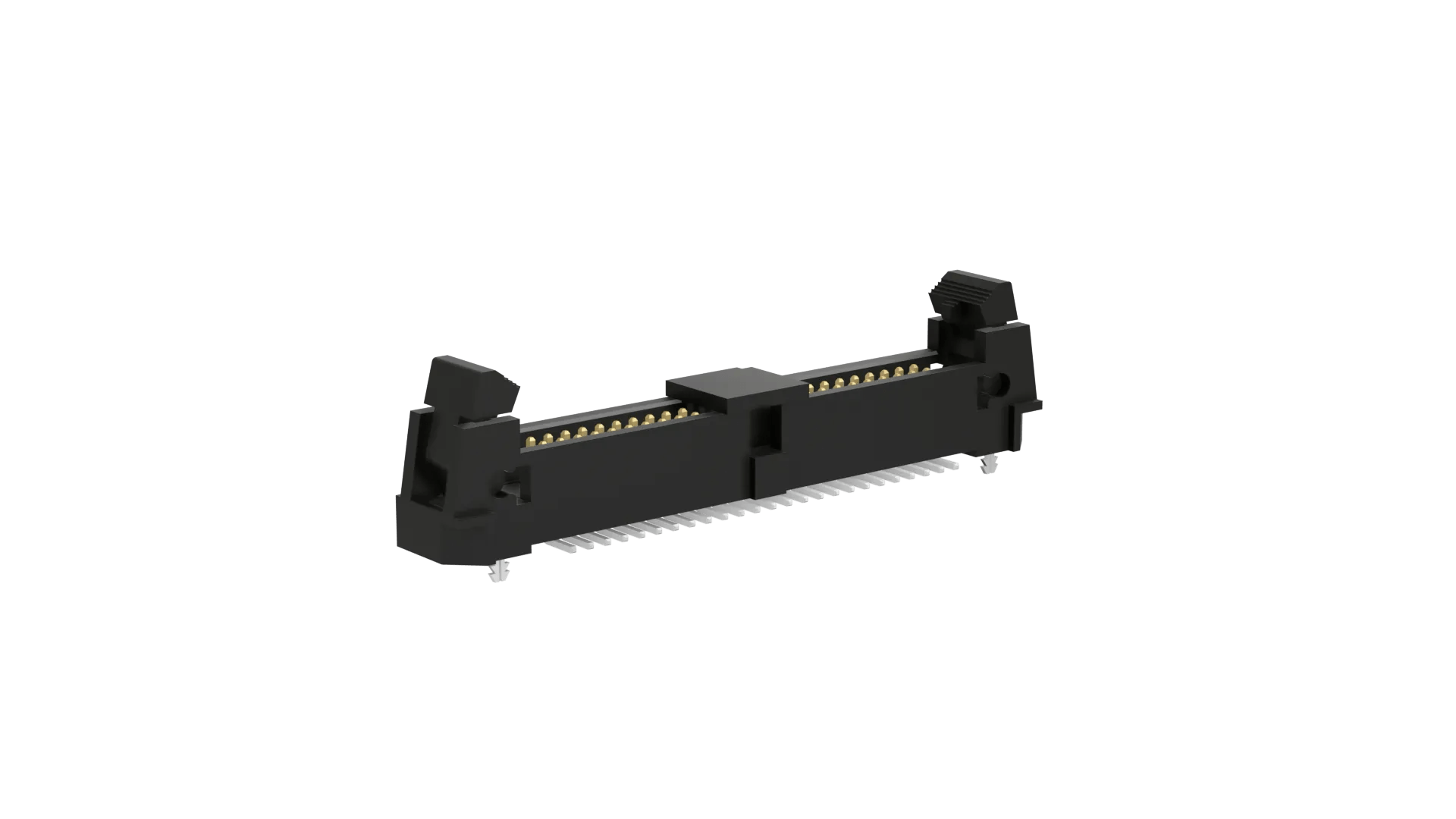

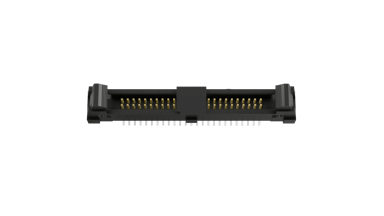

25+25 Pos. Male DIL Vertical SMT Conn. with Ejector (T+R)
1.27mm (0.05") Pitch PCB Connector - Archer M50 IDC
EU RoHS Status:
Surface Mount (SMT)
Mating Pin Size:
1.75A per contact
-55°C to +125°C
Max Solder Temperature: 260°C for 10 seconds
Can be cut to another size:
Number of Rows:
Number of Signal Contacts:
Finish / Plating on Termination:
100% Tin over Nickel
Finish / Plating on Contact Surface:
Base Material of Contact:
Housing Material UL Rating:
Tape and Reel
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
46.23 x 6.67 x 12.82
Height of Connector above PCB:
11,879 in stock
Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.
M50-3652542R CAD Model (ZIP file containing STP and IGES)Download
