M50-3652042R

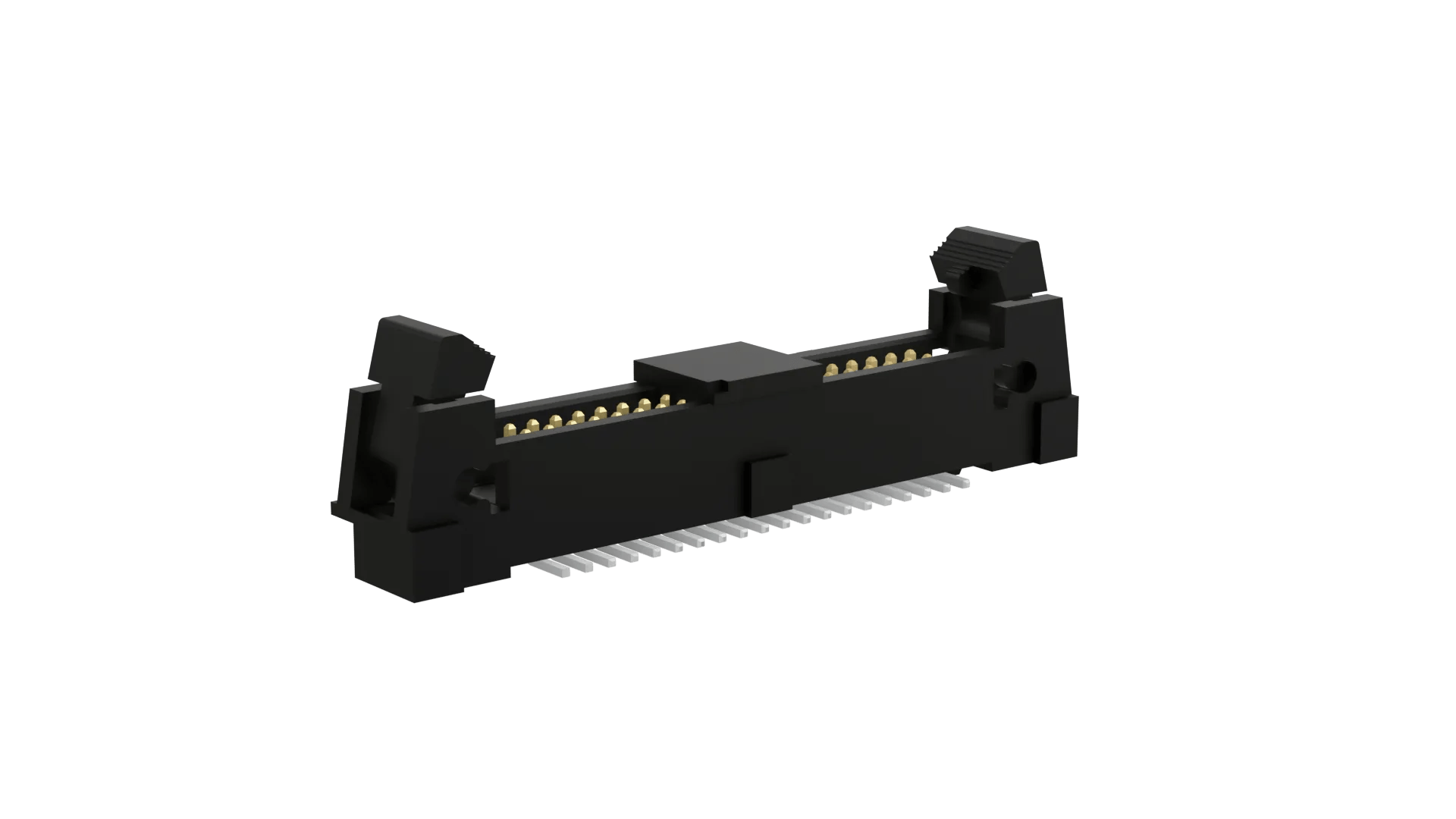

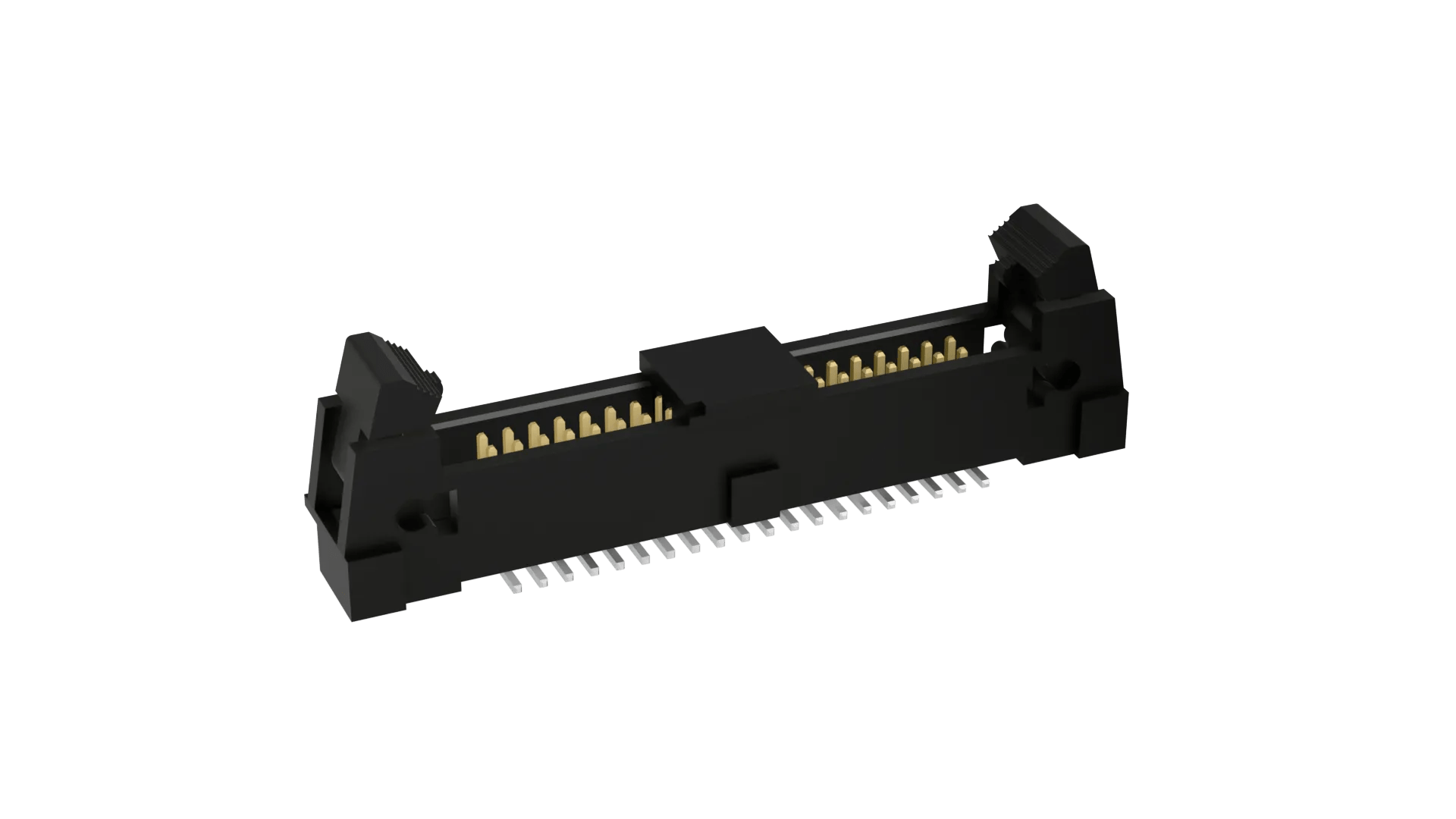

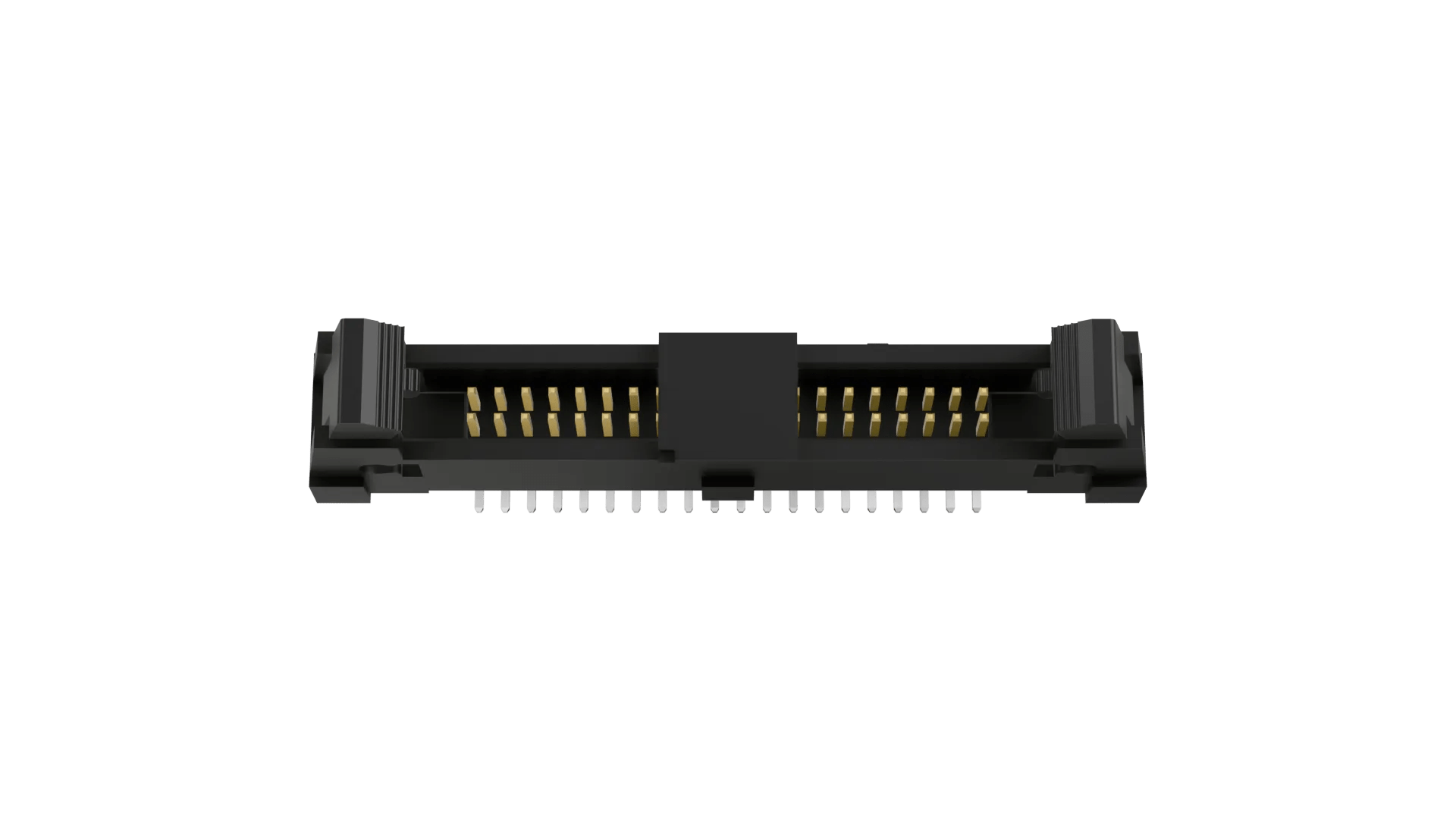

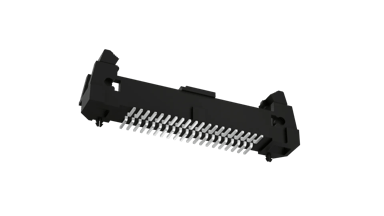

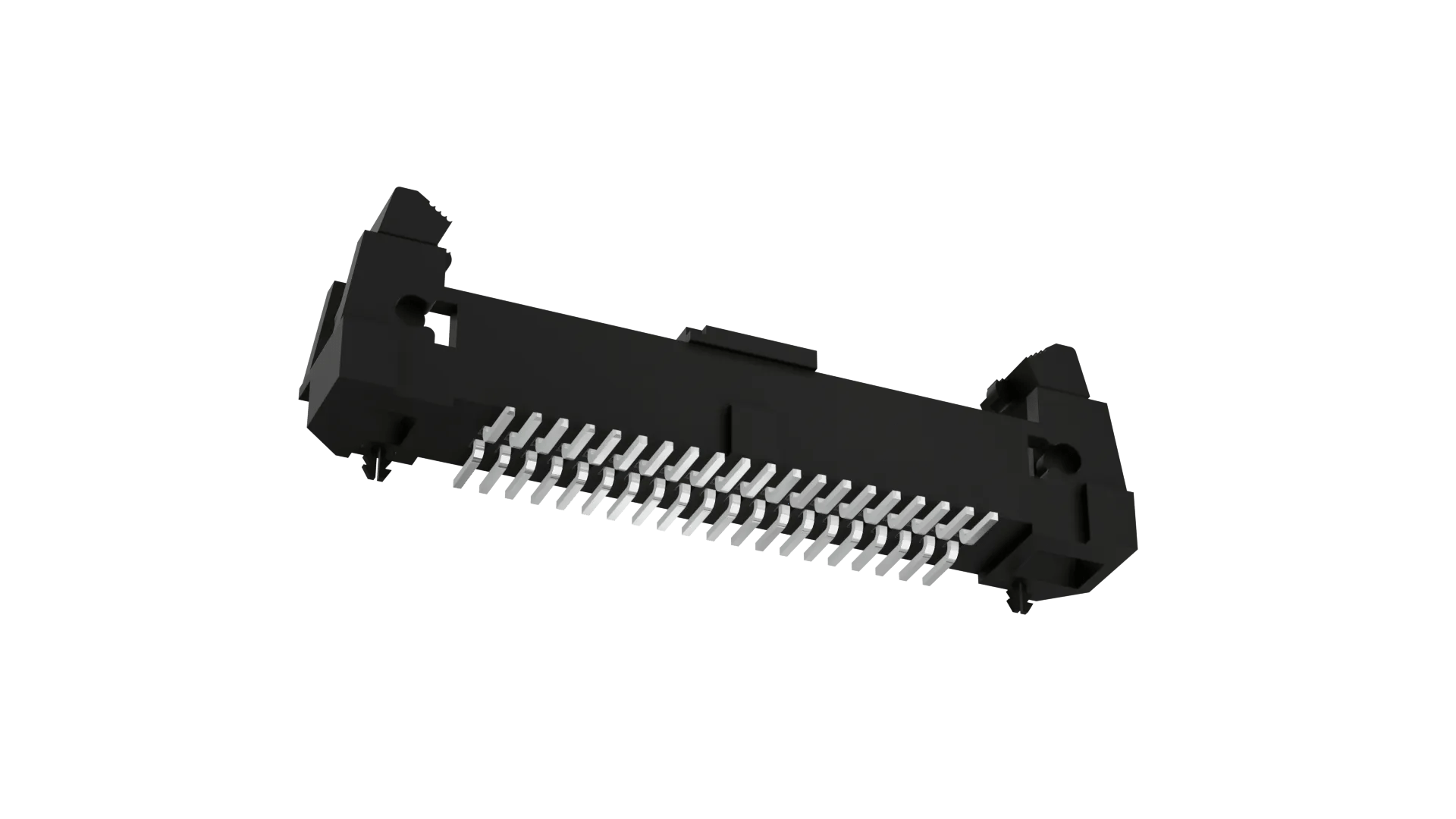

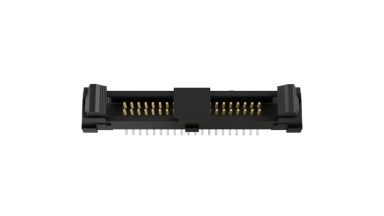

20+20 Pos. Male DIL Vertical SMT Conn. with Ejector (T+R)

1.27mm (0.05") Pitch PCB Connector - Archer M50 IDC

  • Double Row, Surface Mount Ejector Header with polarization – 40 contacts (20+20).
  • Gold finish on contact area, Tin finish on termination. Packaged in Tape & Reel, with Pick & Place caps.
  • Mates with IDC cable connector M50-3302042 or associated Cable Assemblies.
Add to Favorites

Technical Details

Specification

Contact Pitch:

1.27mm (0.05")

Contact Gender:

Male/Plug

Connector Orientation:

Vertical

Connection Type:

Surface Mount (SMT)

Mating Pin Size:

0.4mm square

Current Rating:

1.75A

Operating Temperature:

-55°C to +125°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

40

Materials

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Brass

Housing Material:

LCP

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tape and Reel

Dimensions

Individual Part Weight:

2.229g

Overall Dimensions (L x W x D) in mm:

39.88 x 6.67 x 12.82

Height of Connector above PCB:

11.55mm
