M50-3651342R

13+13 Pos. Male DIL Vertical SMT Conn. with Ejector (T+R)

1.27mm (0.05") Pitch PCB Connector - Archer M50 IDC

Order Sample

Add to Favorites

8,881 in stock Check availability

7 similiar products View products

Traceparts account required

Product Description

Double Row, Surface Mount Ejector Header with polarization – 26 contacts (13+13).
Gold finish on contact area, Tin finish on termination. Packaged in Tape & Reel, with Pick & Place caps.
Mates with IDC cable connector M50-3301342 or associated Cable Assemblies.

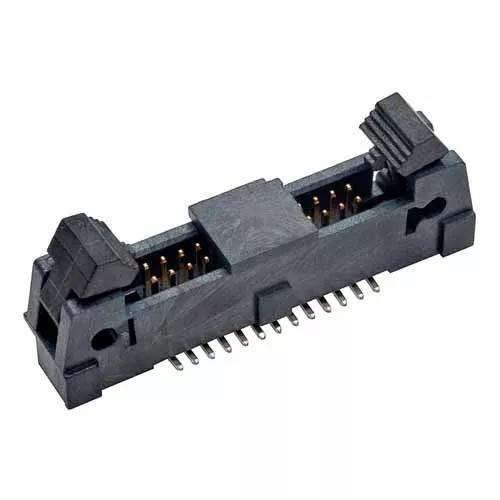

M50-3651342R - 13+13 Pos. Male DIL Vertical SMT Conn. with Ejector (T+R)

Traceparts account required

Technical Details

EU RoHS Status:

RoHS Compliant (2015/863/EU) with no Exemption required

Contact Pitch:

1.27mm (0.05")

Contact Gender:

Male/Plug

Connector Orientation:

Vertical

Connection Type:

Surface Mount (SMT)

Mating Pin Size:

0.4mm square

Current Rating:

1.75A per contact

Operating Temperature:

-55°C to +125°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

Yes

End Stackable:

Side Stackable:

Can be cut to another size:

Number of Rows:

Number of Signal Contacts:

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Brass

Housing Material:

LCP

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tape and Reel

Individual Part Weight:

1.75g

Overall Dimensions (L x W x D) in mm:

30.99 x 6.67 x 12.82

Height of Connector above PCB:

11.55mm

Mating Profiles:

Catalog page - Archer M50 IDC Specification, Mating Profiles
