M50-3650642R

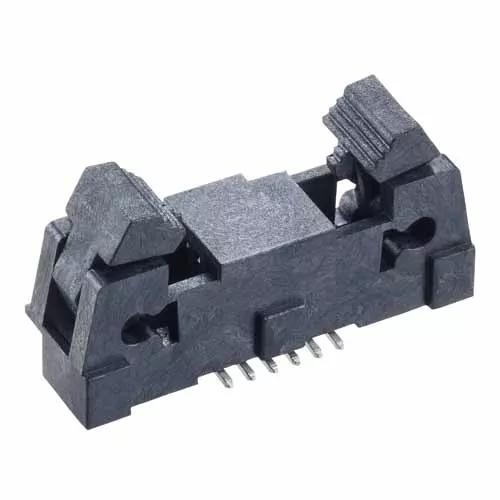

6+6 Pos. Male DIL Vertical SMT Conn. with Ejector (T+R)
1.27mm (0.05") Pitch PCB Connector - Archer M50 IDC
- Double Row, Surface Mount Ejector Header with polarization – 12 contacts (6+6).
- Gold finish on contact area, Tin finish on termination. Packaged in Tape & Reel, with Pick & Place caps.
- Mates with IDC cable connector M50-3300642.
Technical Details
Specification
EU RoHS Status:
Contact Pitch:
1.27mm (0.05")
Contact Gender:
Male/Plug
Connector Orientation:
Vertical
Connection Type:
Surface Mount (SMT)
Mating Pin Size:
0.4mm square
Current Rating:
1.75A per contact
Operating Temperature:
-55°C to +125°C
Soldering Data:
Max Solder Temperature: 260°C for 10 seconds
Polarising Features:
Yes
End Stackable:
No
Side Stackable:
No
Can be cut to another size:
No
Number of Rows:
2
Number of Signal Contacts:
12
Materials
Finish / Plating on Termination:
100% Tin over Nickel
Finish / Plating on Contact Surface:
Gold
Base Material of Contact:
Brass
Housing Material:
LCP
Housing Colour:
Black
Housing Material UL Rating:
UL94V-0
Packaging Style:
Tape and Reel
Dimensions
Individual Part Weight:
1.271g
Overall Dimensions (L x W x D) in mm:
22.10 x 6.67 x 12.82
Height of Connector above PCB:
11.55mm
Mating Profiles:
