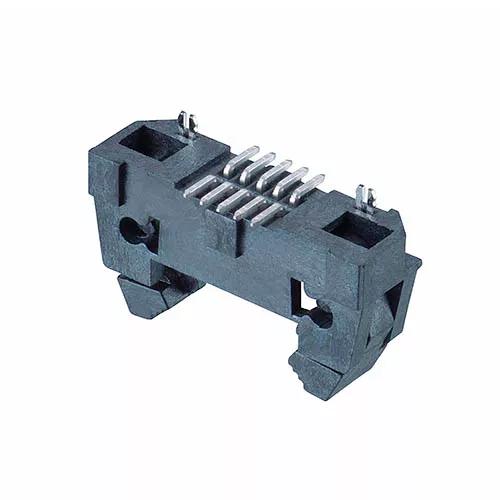

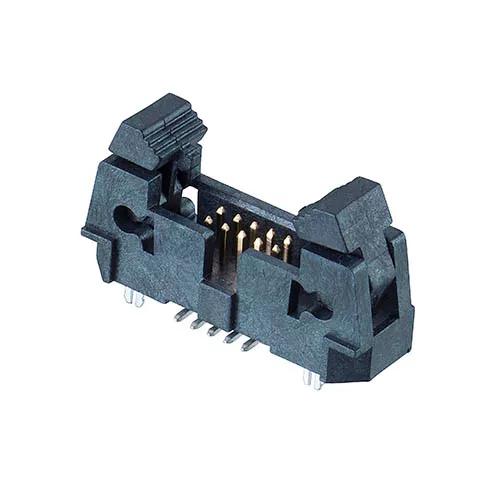

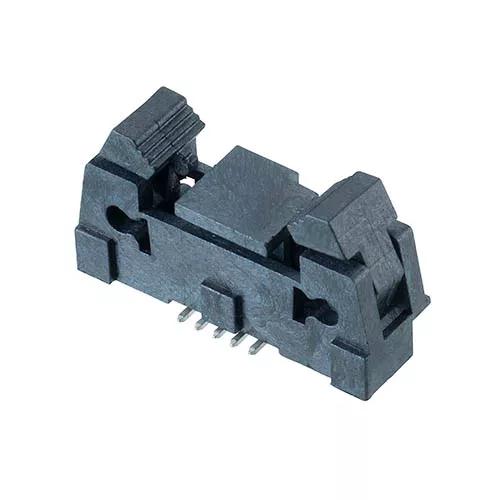

Representative image of product family.

  • M50-3650542R - 5+5 Pos. Male DIL Vertical SMT Conn. with Ejector (T+R)
  • M50-3650542R - 5+5 Pos. Male DIL Vertical SMT Conn. with Ejector (T+R)
  • M50-3650542R - 5+5 Pos. Male DIL Vertical SMT Conn. with Ejector (T+R)

M50-3650542R

5+5 Pos. Male DIL Vertical SMT Conn. with Ejector (T+R)

1.27mm (0.05") Pitch PCB Connector - Archer M50 IDC

  • Double Row, Surface Mount Ejector Header with polarization - 10 contacts (5+5).
  • Gold finish on contact area, Tin finish on termination. Packaged in Tape & Reel, with Pick & Place caps.
  • Mates with IDC cable connector M50-3300542 or associated Cable Assemblies.

Active

Popular product: currently in stock in network

RoHS Compliant - 2011/65/EU

(Does not require exemption)

Product Stock

Distributor Name Location of Stock Qty
Anglia Europe 3510 Website
Digi-Key Global 305 Buy Now
Farnell Europe 355 Buy Now
Mouser Electronics Inc Global 294 Buy Now
Newark USA 250 Buy Now
TTI Europe Europe 500 Website
Harwin Europe 3500

Stock available: contact distributor to purchase

Product Information

Specification

+
Product Type: 1.27mm (0.05") Pitch PCB Connector - Archer M50 IDC
Contact Pitch: 1.27mm (0.05")
Contact Gender: Male/Plug
Connector Orientation: Vertical
Connection Type: Surface Mount (SMT)
Mating Pin Size: 0.4mm square
Current Rating: 1.75A
Operating Temperature: -55°C to +125°C
Soldering Data: Max Solder Temperature: 260°C for 10 seconds

Materials

+
Finish/Plating on Termination: 100% Tin over Nickel
Finish/Plating on Contact Surface: Gold
Base Material of Contact: Brass
Housing Material: LCP
Housing Color: Black
Housing Material UL Rating: UL94V-0
Individual Part Weight: 1.202g
Packaging Style: Tape and Reel

Dimensions

+
Number of Rows: 2
Total Number of Contacts: 10
Height of Connector above PCB: 11.55mm
End Stackable: No
Side Stackable: No
Polarising Features: Yes
Can be cut to another size: No
