M50-3630642R

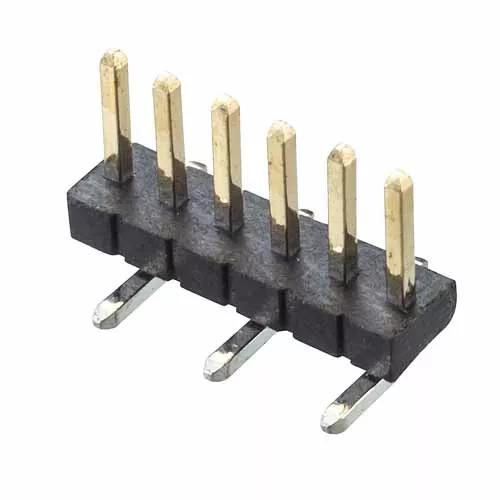

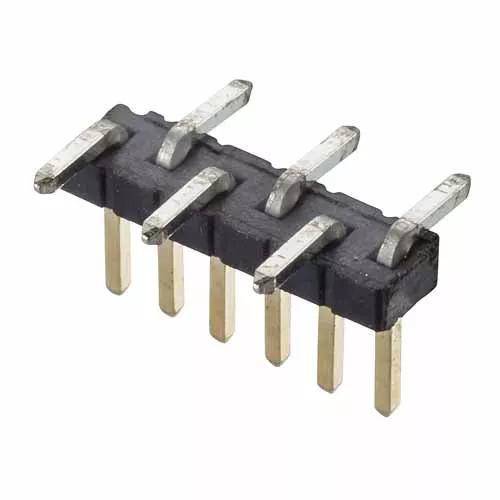

6 Pos. Male SIL Vertical SMT Conn. (T+R)

1.27mm (0.05") Pitch PCB Connector - Archer M50 Board-To-Board

  • Single Row Surface Mount, 3mm mating pin height – 6 contacts.
  • Gold finish on contact area, Tin finish on termination.
  • Packaged in Tape & Reel, with Pick & Place caps.
Add to Favorites

Technical Details

Specification

Contact Pitch:

1.27mm (0.05")

Contact Gender:

Male/Plug

Connector Orientation:

Vertical

Connection Type:

Surface Mount (SMT)

Mating Pin Size:

0.4mm square

Current Rating:

1A per contact

Operating Temperature:

-40°C to +105°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

Yes

Number of Rows:

1

Number of Signal Contacts:

6

Materials

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Brass

Housing Material:

Polyamide (Nylon) 9T

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tape and Reel

Dimensions

Individual Part Weight:

0.167g

Overall Dimensions (L x W x D) in mm:

7.62 x 5.00 x 4.50

Height of Connector above PCB:

4.50mm

Availability

97 in stock

Info Circle

Low availability or made to order: This product is typically manufactured to order. When out of stock, minimum order quantities may apply.
