Home > M50-3612542
Active Product

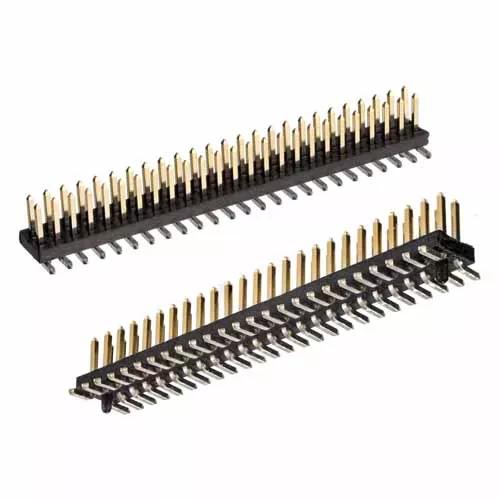

M50-3612542

25+25 Pos. Male DIL Vertical SMT Conn.

1.27mm (0.05") Pitch PCB Connector - Archer M50 Board-To-Board

Add to Favorites

Loading…   Check availability

8 similar products View products

Traceparts account required

Product Description

  • Double Row Surface Mount with location pegs, 3mm mating pin height – 50 contacts (25+25).
  • Gold finish on contact area, Tin finish on termination.
  • Packaged loose.

Technical Details

Specification

Contact Pitch:

1.27mm (0.05")

Contact Gender:

Male/Plug

Connector Orientation:

Vertical

Connection Type:

Surface Mount (SMT)

Mating Pin Size:

0.4mm square

Current Rating:

1A per contact

Operating Temperature:

-40°C to +105°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

Yes

Number of Rows:

2

Number of Signal Contacts:

50

Materials

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Brass

Housing Material:

Polyamide (Nylon) 6T

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

0.608g

Overall Dimensions (L x W x D) in mm:

31.75 x 5.50 x 5.50

Height of Connector above PCB:

4.68mm

Frequently Asked Questions Ask a Question

I cannot find any information on pin out order for the pins on this connector?

For this range, we do not specify any particular pin numbering system. You are free to use any convention you prefer, or use your own. There is no marking on the product to indicate a number 1 pin. You can also find information on pin numbering on our Support article on this topic.

Was this answer useful?

How do I cut down this pin header?

There is no hand cutting tool for this smaller pitch. You can use a fine slitting saw if you have access to cutting machinery, and this will give a clean edge.

Was this answer useful?

Downloads

TECHNICAL DOCUMENTS

ENVIRONMENTAL COMPLIANCE

RoHS Compliant (2015/863/EU) with no Exemption required

PDF Download

INSTRUCTION SHEETS

OTHER DOWNLOADS
