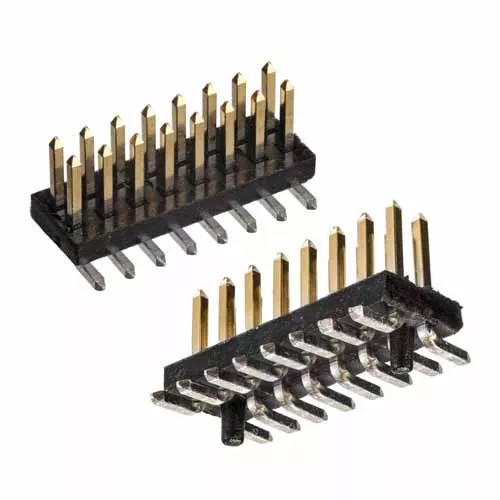

8+8 Pos. Male DIL Vertical SMT Conn.
1.27mm (0.05") Pitch PCB Connector - Archer M50 Board-To-Board
- Double Row Surface Mount with location pegs, 3mm mating pin height – 16 contacts (8+8).
- Gold finish on contact area, Tin finish on termination.
- Packaged loose.
EU RoHS Status:
Surface Mount (SMT)
Mating Pin Size:
1A per contact
-40°C to +105°C
Max Solder Temperature: 260°C for 10 seconds
Can be cut to another size:
Number of Rows:
Number of Signal Contacts:
Finish / Plating on Termination:
100% Tin over Nickel
Finish / Plating on Contact Surface:
Base Material of Contact:
Polyamide (Nylon) 6T
Housing Material UL Rating:
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
10.16 x 5.50 x 5.50
Height of Connector above PCB:
3,073 in stock
Low availability or made to order: This product is typically manufactured to order. When out of stock, minimum order quantities may apply.
Questions & Answers Ask a Question
I cannot find any information on pin out order for the pins on this connector?
For this range, we do not specify any particular pin numbering system. You are free to use any convention you prefer, or use your own. There is no marking on the product to indicate a number 1 pin. You can also find information on pin numbering on our Support article on this topic.
How do I cut down this pin header?
There is no hand cutting tool for this smaller pitch. You can use a fine slitting saw if you have access to cutting machinery, and this will give a clean edge.
