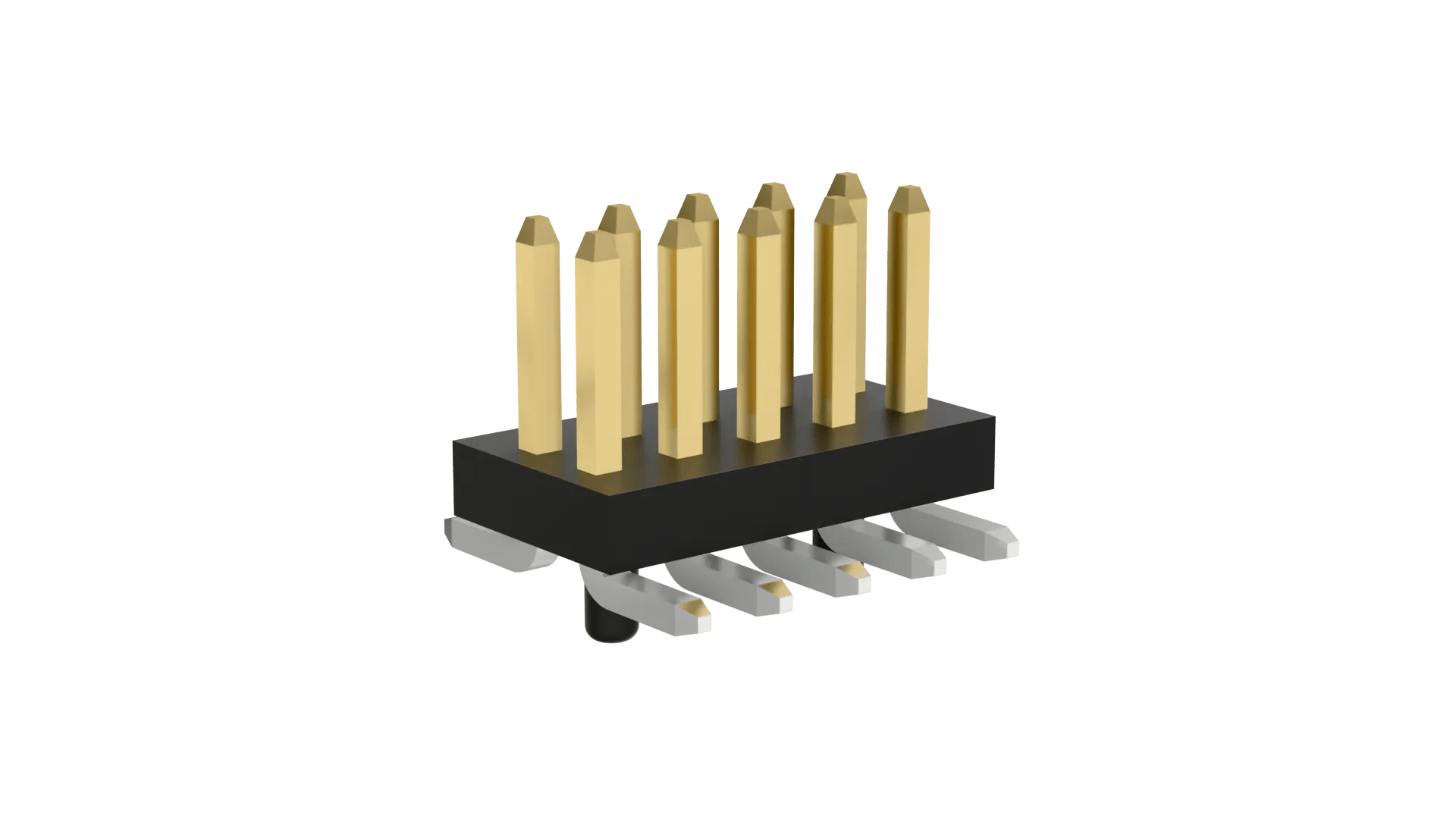

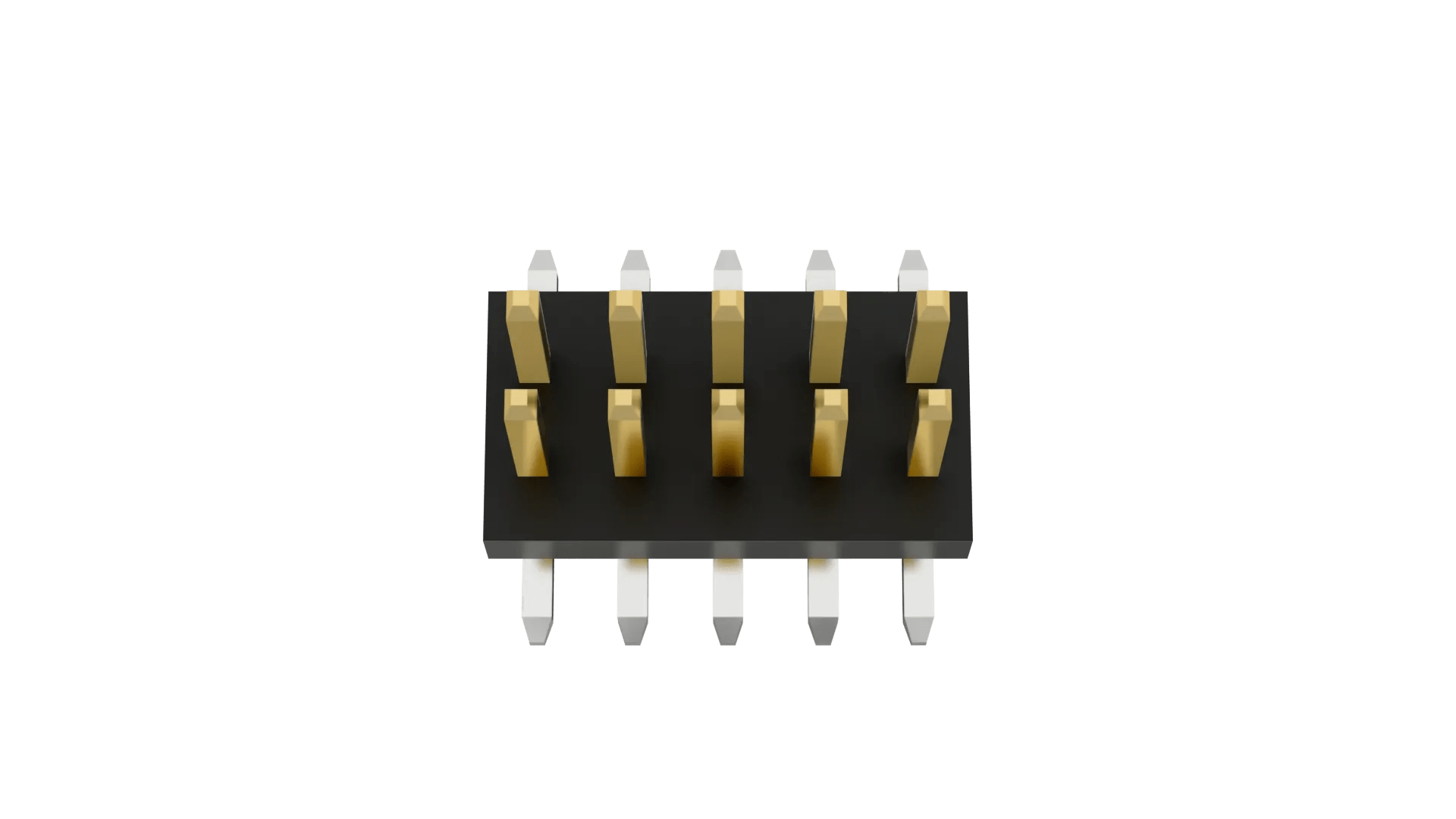

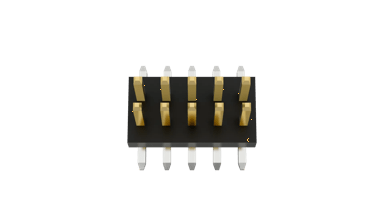

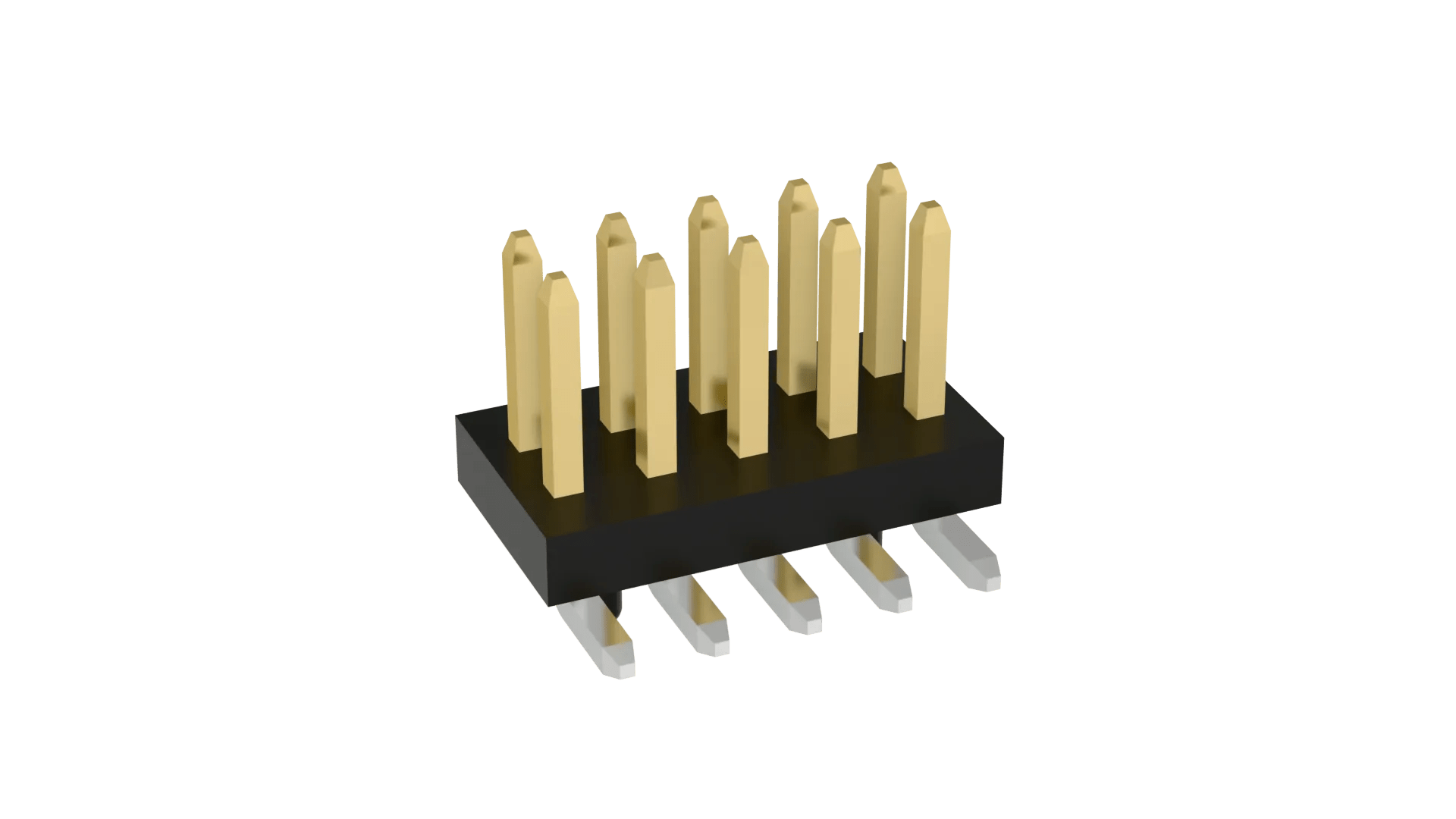

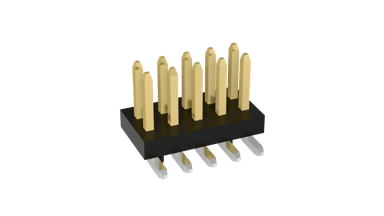

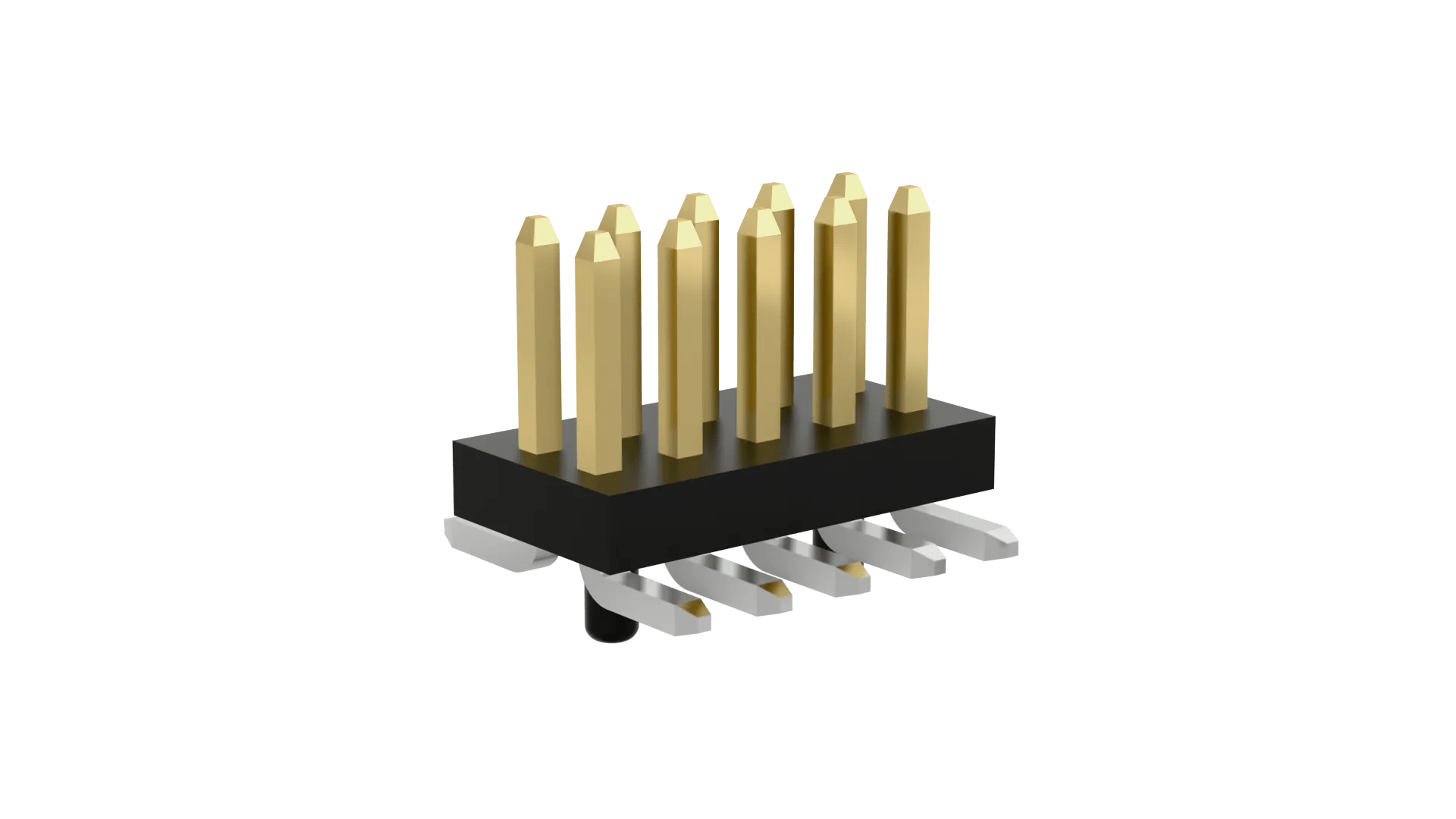

M50-3610542R
5+5 Pos. Male DIL Vertical SMT Conn. (T+R)
1.27mm (0.05") Pitch PCB Connector - Archer M50 Board-To-Board
7,553 in stock Check availability
9 similiar products View products
Samacsys account required
No login is required
Product Description

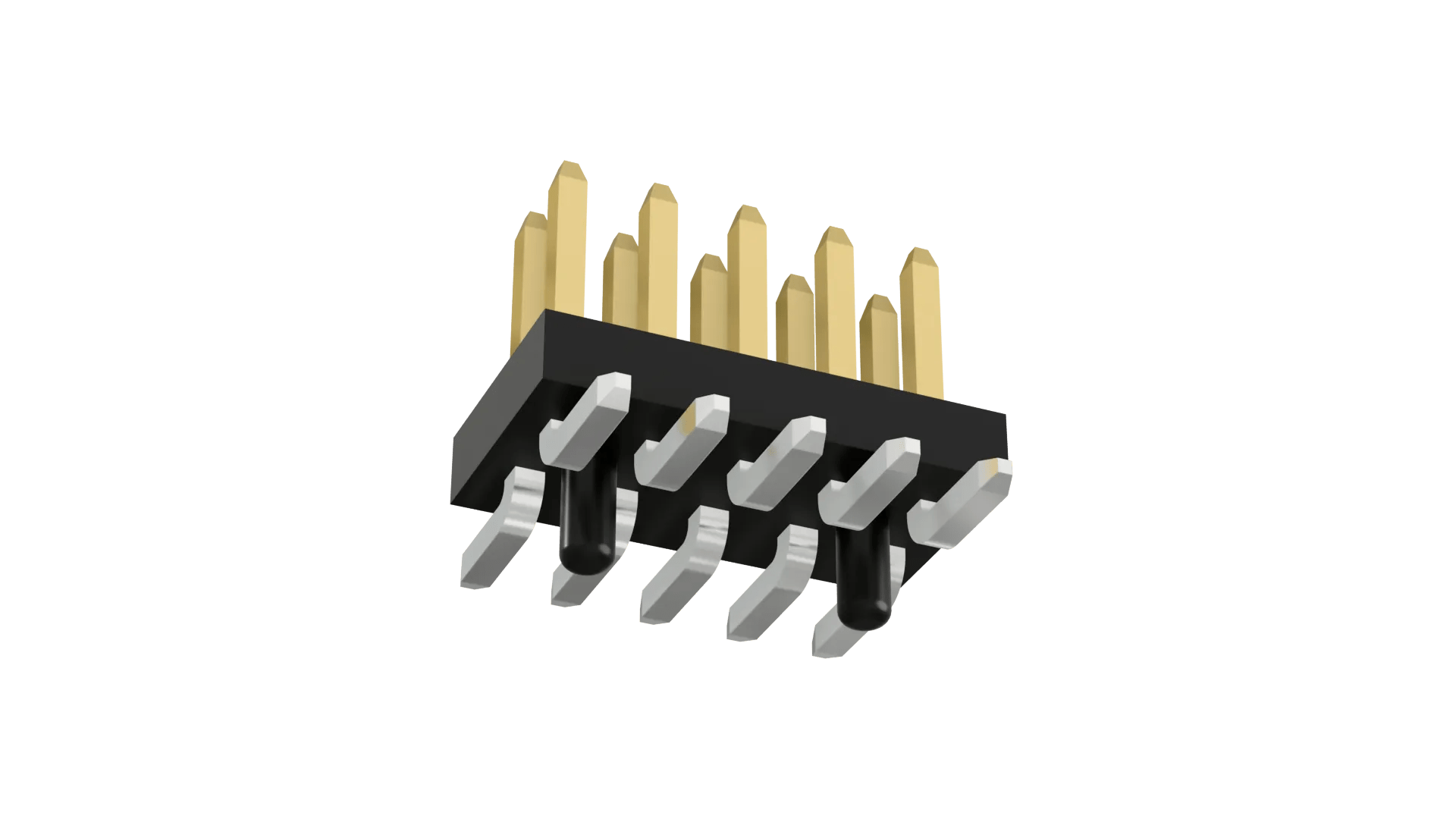

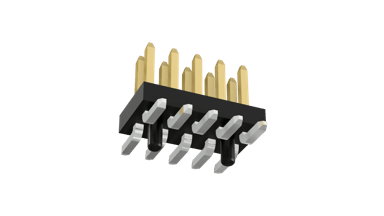

- Double Row Surface Mount with location pegs, 3mm mating pin height – 10 contacts (5+5).
- Gold finish on contact area, Tin finish on termination.
- Packaged in Tape & Reel, with Pick & Place caps.
Samacsys account required
No login is required
Technical Details
Specification
EU RoHS Status:
Contact Pitch:
1.27mm (0.05")
Contact Gender:
Male/Plug
Connector Orientation:
Vertical
Connection Type:
Surface Mount (SMT)
Mating Pin Size:
0.4mm square
Current Rating:
1A per contact
Operating Temperature:
-40°C to +105°C
Soldering Data:
Max Solder Temperature: 260°C for 10 seconds
Polarising Features:
No
End Stackable:
No
Side Stackable:
No
Can be cut to another size:
Yes
Number of Rows:
2
Number of Signal Contacts:
10
Materials
Finish / Plating on Termination:
100% Tin over Nickel
Finish / Plating on Contact Surface:
Gold
Base Material of Contact:
Brass
Housing Material:
Polyamide (Nylon) 6T
Housing Colour:
Black
Housing Material UL Rating:
UL94V-0
Packaging Style:
Tape and Reel
Dimensions
Individual Part Weight:
0.188g
Overall Dimensions (L x W x D) in mm:
6.35 x 5.50 x 5.50
Height of Connector above PCB:
4.68mm
Mating Profiles:
Frequently Asked Questions Ask a Question
I cannot find any information on pin out order for the pins on this connector?
For this range, we do not specify any particular pin numbering system. You are free to use any convention you prefer, or use your own. There is no marking on the product to indicate a number 1 pin. You can also find information on pin numbering on our Support article on this topic.
Was this answer useful?
How do I cut down this pin header?
There is no hand cutting tool for this smaller pitch. You can use a fine slitting saw if you have access to cutting machinery, and this will give a clean edge.
Was this answer useful?
