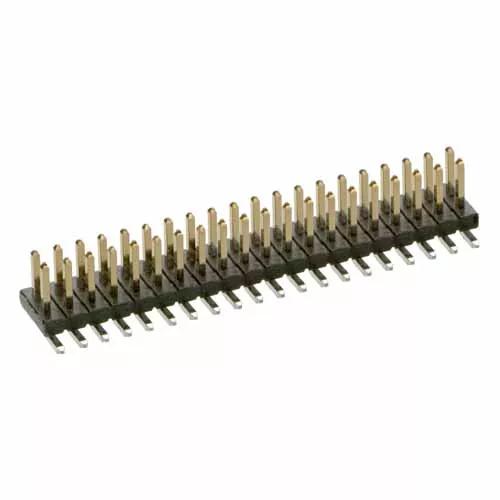

20+20 Pos. Male DIL Vertical SMT Conn.
1.27mm (0.05") Pitch PCB Connector - Archer M50 Board-To-Board
6,764 in stock Check availability
7 similiar products View products
- Double Row Surface Mount, 3mm mating pin height – 40 contacts (20+20).
- Gold finish on contact area, Tin finish on termination.
- Packaged loose.
EU RoHS Status:
Surface Mount (SMT)
Mating Pin Size:
1A per contact
-40°C to +105°C
Max Solder Temperature: 260°C for 10 seconds
Can be cut to another size:
Number of Rows:
Number of Signal Contacts:
Finish / Plating on Termination:
100% Tin over Nickel
Finish / Plating on Contact Surface:
Base Material of Contact:
Polyamide (Nylon) 6T
Housing Material UL Rating:
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
25.40 x 5.50 x 4.68
Height of Connector above PCB:
Frequently Asked Questions Ask a Question
How do I cut down this pin header?
There is no hand cutting tool for this smaller pitch. You can use a fine slitting saw if you have access to cutting machinery, and this will give a clean edge.
Was this answer useful?
RoHS Compliant (2015/863/EU) with no Exemption requiredPDF Download
