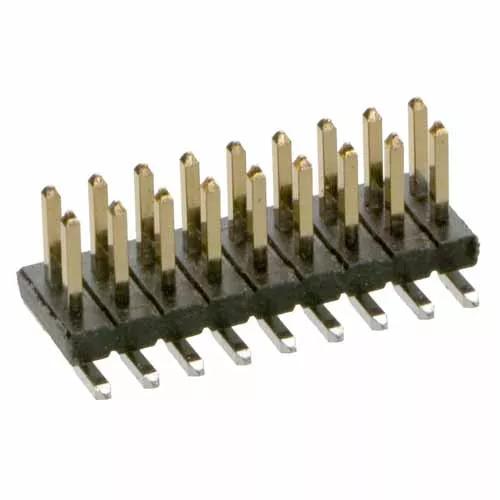

12+12 Pos. Male DIL Vertical SMT Conn.
1.27mm (0.05") Pitch PCB Connector - Archer M50 Board-To-Board
- Double Row Surface Mount, 3mm mating pin height – 24 contacts (12+12).
- Gold finish on contact area, Tin finish on termination.
- Packaged loose.
EU RoHS Status:
Surface Mount (SMT)
Mating Pin Size:
1A per contact
-40°C to +105°C
Max Solder Temperature: 260°C for 10 seconds
Can be cut to another size:
Number of Rows:
Number of Signal Contacts:
Finish / Plating on Termination:
100% Tin over Nickel
Finish / Plating on Contact Surface:
Base Material of Contact:
Polyamide (Nylon) 6T
Housing Material UL Rating:
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
15.24 x 5.50 x 4.68
Height of Connector above PCB:
951 in stock
Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.
Questions & Answers Ask a Question
How do I cut down this pin header?
There is no hand cutting tool for this smaller pitch. You can use a fine slitting saw if you have access to cutting machinery, and this will give a clean edge.
Want to talk to someone?
Contact one of our technical experts via “Ask an Expert”, or book a 30 minute technical consultation.
ECAD Download Options
Download 3D CAD product models directly from Harwin – STP and IGES.Download
No login is required.
