Home > M50-3601042
Active

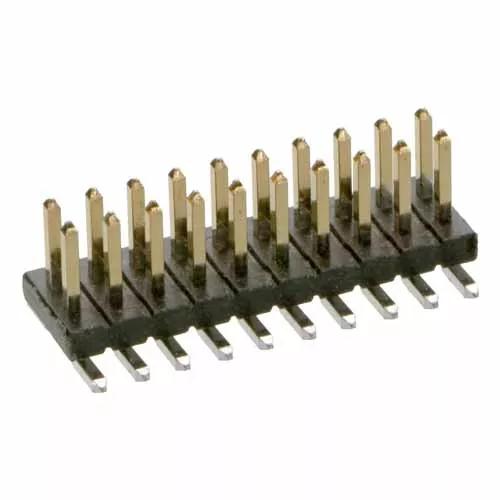

M50-3601042

10+10 Pos. Male DIL Vertical SMT Conn.

1.27mm (0.05") Pitch PCB Connector - Archer M50 Board-To-Board

  • Double Row Surface Mount, 3mm mating pin height – 20 contacts (10+10).
  • Gold finish on contact area, Tin finish on termination.
  • Packaged loose.
Add to Favorites

Technical Details

Specification

Contact Pitch:

1.27mm (0.05")

Contact Gender:

Male/Plug

Connector Orientation:

Vertical

Connection Type:

Surface Mount (SMT)

Mating Pin Size:

0.4mm square

Current Rating:

1A per contact

Operating Temperature:

-40°C to +105°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

Yes

Number of Rows:

2

Number of Signal Contacts:

20

Materials

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Brass

Housing Material:

Polyamide (Nylon) 6T

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

0.243g

Overall Dimensions (L x W x D) in mm:

12.70 x 5.50 x 4.68

Height of Connector above PCB:

4.68mm

Availability

8,356 in stock

Info Circle

Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.

Popular product
Distributor Location Quantity (Updated Daily)
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 1937
Distributor Farnell
Location Europe
Quantity (Updated Daily) 1798
Distributor TTI Europe
Location Europe
Quantity (Updated Daily) 1200
Distributor TTI Inc
Location USA
Quantity (Updated Daily) 1197
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 1119
Distributor Iconnexion Asia Pte Ltd
Location Asia
Quantity (Updated Daily) 400
Distributor Newark
Location USA
Quantity (Updated Daily) 363
Distributor Anglia
Location Europe
Quantity (Updated Daily) 342

Questions & Answers Ask a Question

How do I cut down this pin header?

There is no hand cutting tool for this smaller pitch. You can use a fine slitting saw if you have access to cutting machinery, and this will give a clean edge.
