Home > M50-3600842
Active

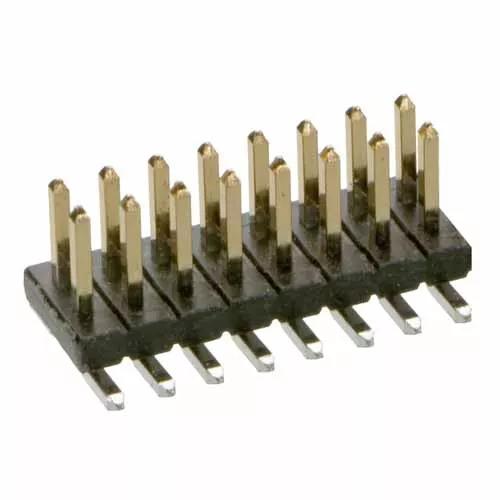

M50-3600842

8+8 Pos. Male DIL Vertical SMT Conn.

1.27mm (0.05") Pitch PCB Connector - Archer M50 Board-To-Board

  • Double Row Surface Mount, 3mm mating pin height – 16 contacts (8+8).
  • Gold finish on contact area, Tin finish on termination.
  • Packaged loose.
Add to Favorites

Technical Details

Specification

Contact Pitch:

1.27mm (0.05")

Contact Gender:

Male/Plug

Connector Orientation:

Vertical

Connection Type:

Surface Mount (SMT)

Mating Pin Size:

0.4mm square

Current Rating:

1A per contact

Operating Temperature:

-40°C to +105°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

Yes

Number of Rows:

2

Number of Signal Contacts:

16

Materials

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Brass

Housing Material:

Polyamide (Nylon) 6T

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

0.194g

Overall Dimensions (L x W x D) in mm:

10.16 x 5.50 x 4.68

Height of Connector above PCB:

4.68mm

Availability

6,546 in stock

Info Circle

Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.

Popular product
Distributor Location Quantity (Updated Daily)
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 1718
Distributor Avnet Abacus
Location Europe
Quantity (Updated Daily) 1500
Distributor Farnell
Location Europe
Quantity (Updated Daily) 1165
Distributor Newark
Location USA
Quantity (Updated Daily) 690
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 563
Distributor Anglia
Location Europe
Quantity (Updated Daily) 500
Distributor TTI Inc
Location USA
Quantity (Updated Daily) 410

Questions & Answers Ask a Question

What are the mating connectors for this? Are there any positive locking alternatives?

The mating connectors are listed at the bottom of this product page. Under Related Products, click on the “Mating” tab to see the options. Sorry, but we do not have any designs with 8 pins that features locking. The nearest is the M50-3651042R – you can see this listed under the “Alternatives” tab on Related Products.

How do I cut down this pin header?

There is no hand cutting tool for this smaller pitch. You can use a fine slitting saw if you have access to cutting machinery, and this will give a clean edge.

Downloads

TECHNICAL DOCUMENTS

PDF

Technical Drawing / Datasheet - M50-360.pdf

ZIP

M50-3600842 CAD Model (ZIP file containing STP and IGES)

Download
PDF

C029XX Component Specification - Archer M50 and M52 Series (1.27mm pitch PCB connectors)

ENVIRONMENTAL COMPLIANCE

PDF

RoHS Compliant (2015/863/EU) with no Exemption required

PDF

REACH Harwin statement (12-Feb-2021) including 211 SVHC (19-Jan-2021), Annex XIV & XVII

XLSX

Conflict Minerals Reporting Template (CMRT 6.01) - Company Summary Statement

XLSX

Cobalt Reporting Template (CRT 2.2) - Company Summary Statement

PDF

Environmental Legislation Statement (12-Feb-2021) - includes all material legislations

PDF

Material composition for M50-360 series

INSTRUCTION SHEETS

PDF

Product Training Module - Overview Guide to the Harwin Archer range

OTHER DOWNLOADS

PDF

3D PDF file - M50-3600842_3D.pdf

PDF

Catalog page - Archer M50 Male DIL Vertical SMT

PDF

Catalog page - Archer M50 Specification

PDF

Catalog page - Archer M50 Mating Profiles

PDF

Product Summary - Archer range, PCB and IDC Connectors

PDF

Outgassing data for Harwin products (plastics)
