  • M50-3600542R - 5+5 Pos. Male DIL Vertical SMT Conn. (T+R)

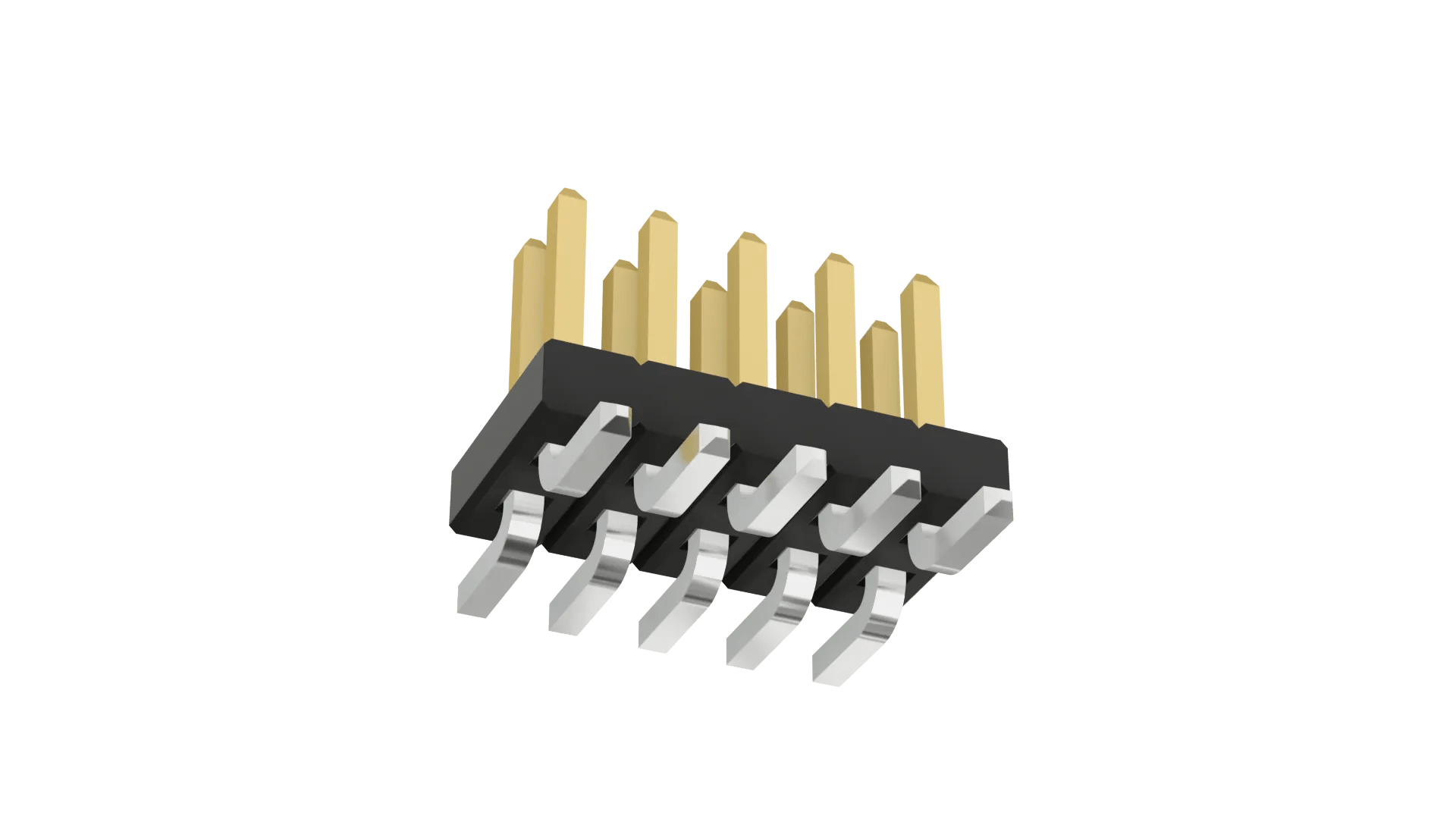

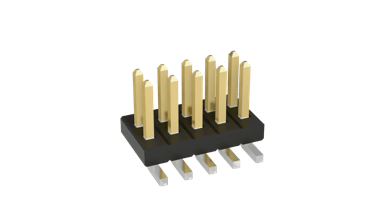

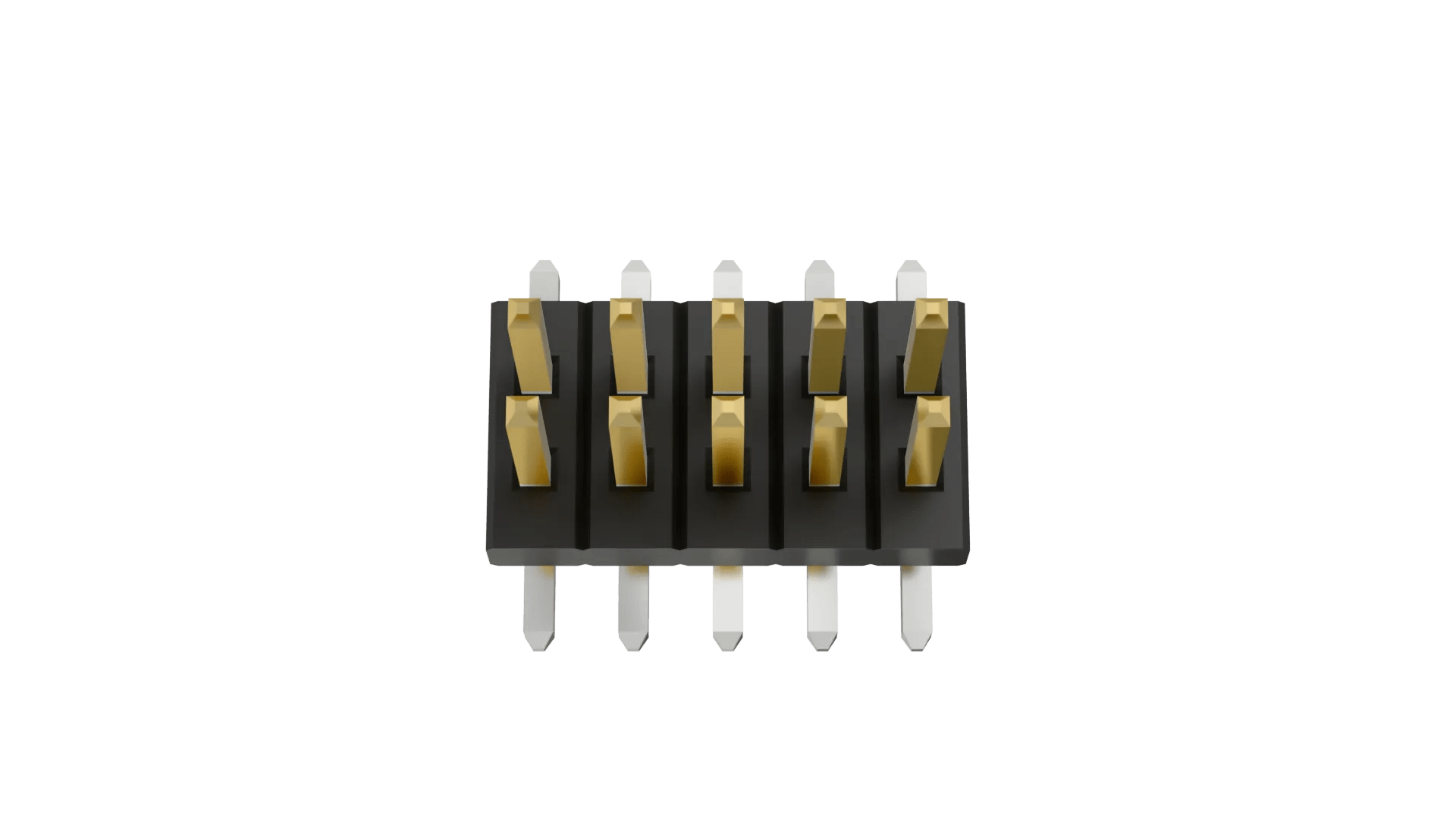

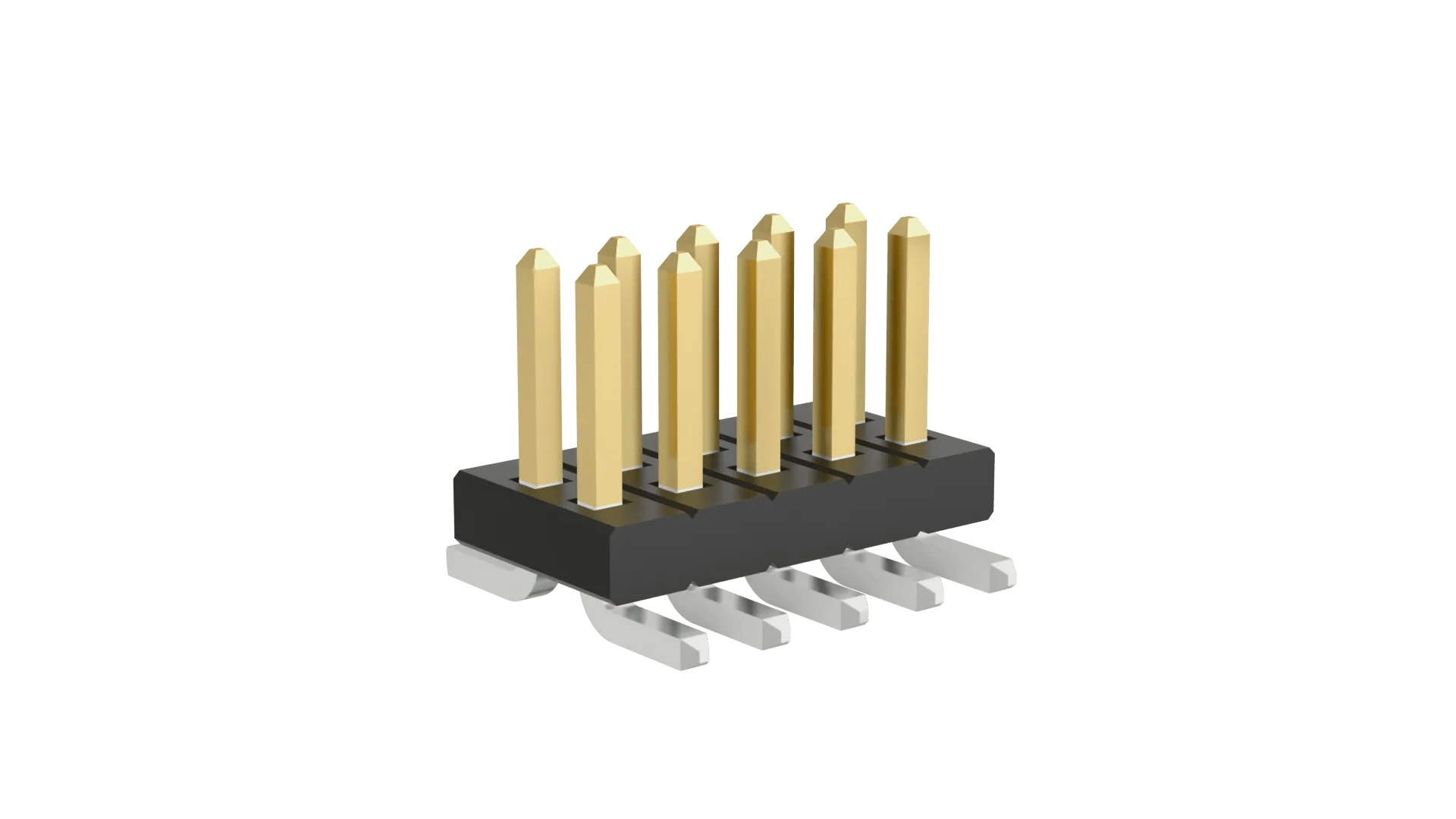

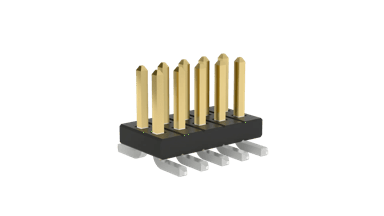

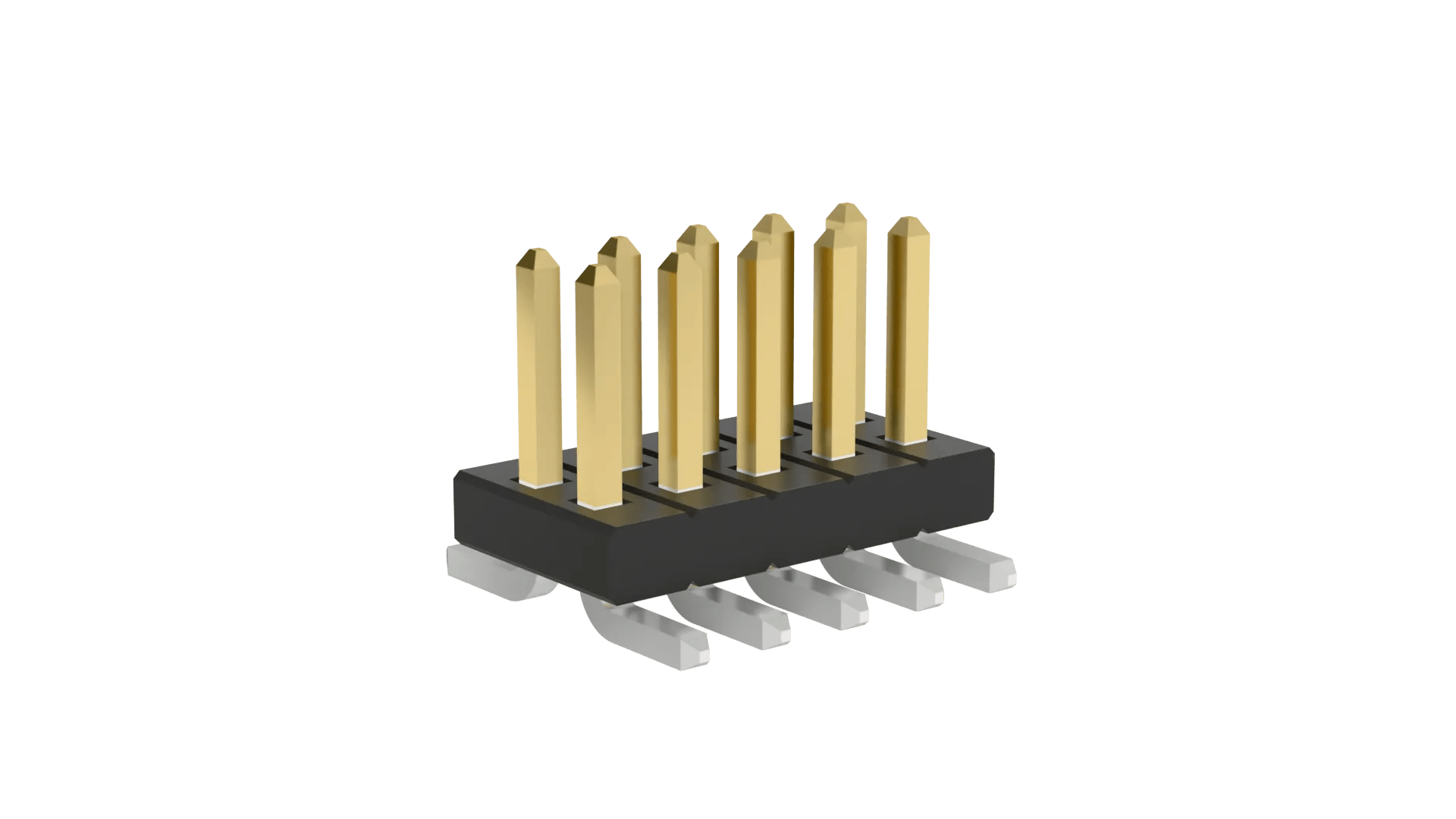

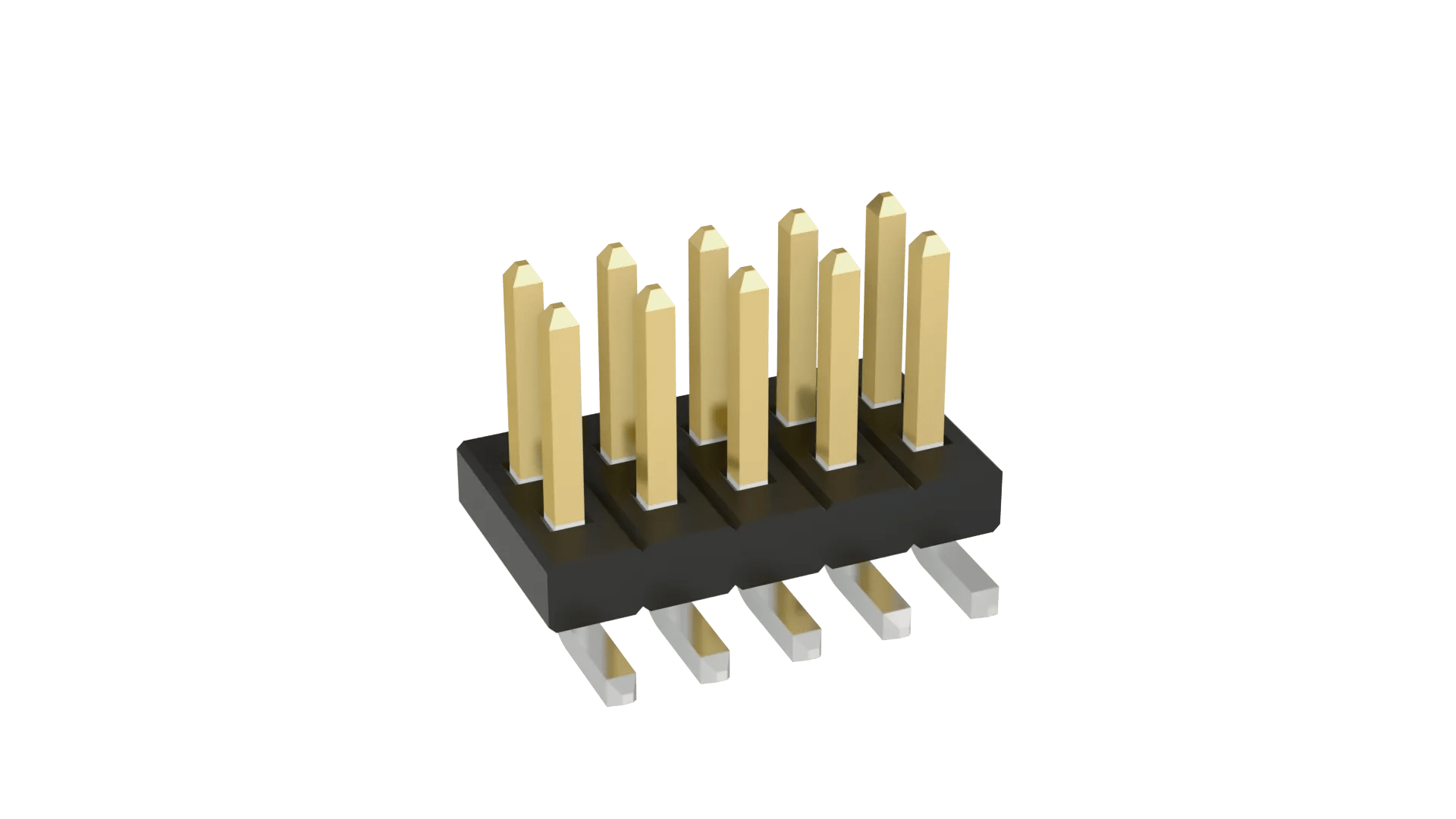

Representative image of product family.

M50-3600542R

5+5 Pos. Male DIL Vertical SMT Conn. (T+R)

1.27mm (0.05") Pitch PCB Connector - Archer M50 Board-To-Board

  • Double Row SMT, 3mm mating pin height - 10 contacts (5+5).
  • Gold finish on contact area, Tin finish on termination.
  • Packaged in Tape & Reel, with Pick & Place caps.

Active

Popular product: currently in stock in network

RoHS Compliant - 2011/65/EU

(Does not require exemption)

Product Stock

Distributor Name Location of Stock Qty
Avnet Abacus Europe 47200 Buy Now
Farnell Europe 803 Buy Now
TTI Europe Europe 59200 Website
TTI Inc USA 39200 Website

Product Information

Specification

+
Product Type: 1.27mm (0.05") Pitch PCB Connector - Archer M50 Board-To-Board
Contact Pitch: 1.27mm (0.05")
Contact Gender: Male/Plug
Connector Orientation: Vertical
Connection Type: Surface Mount (SMT)
Mating Pin Size: 0.4mm square
Current Rating: 1A
Operating Temperature: -40°C to +105°C
Maximum Soldering Temperature: 260°C for 10 seconds

Materials

+
Finish/Plating on Termination: 100% Tin over Nickel
Finish/Plating on Contact Surface: Gold
Base Material of Contact: Brass
Housing Material: Polyamide (Nylon) 6T
Housing Color: Black
Housing Material UL Rating: UL94V-0
Individual Part Weight: 0.164g
Packaging Style: Tape and Reel

Dimensions

+
Number of Rows: 2
Total Number of Contacts: 10
Height of Connector above PCB: 4.68mm
End Stackable: No
Side Stackable: No
Polarising Features: No
Can be cut to another size: Yes
Mating Profiles/Heights

Related Products

+
Product in Loose or Tube Packaging: M50-3600542
Product in Tube Packaging, with Pick/Place caps: M50-3600542P
Product Family: M50-360
