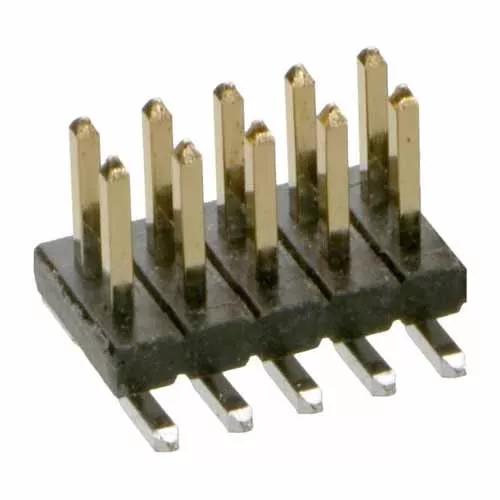

5+5 Pos. Male DIL Vertical SMT Conn. (P+P)
1.27mm (0.05") Pitch PCB Connector - Archer M50 Board-To-Board
Made to order
9 similiar products View products
- Double Row Surface Mount, 3mm mating pin height – 10 contacts (5+5).
- Gold finish on contact area, Tin finish on termination.
- Packaged in tubes, with Pick & Place caps.
EU RoHS Status:
Surface Mount (SMT)
Mating Pin Size:
1A per contact
-40°C to +105°C
Max Solder Temperature: 260°C for 10 seconds
Can be cut to another size:
Number of Rows:
Number of Signal Contacts:
Finish / Plating on Termination:
100% Tin over Nickel
Finish / Plating on Contact Surface:
Base Material of Contact:
Polyamide (Nylon) 6T
Housing Material UL Rating:
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
6.35 x 5.50 x 4.68
Height of Connector above PCB:
Frequently Asked Questions Ask a Question
How do I cut down this pin header?
There is no hand cutting tool for this smaller pitch. You can use a fine slitting saw if you have access to cutting machinery, and this will give a clean edge.
Was this answer useful?
RoHS Compliant (2015/863/EU) with no Exemption requiredPDF Download
How can we help you?
Contact one of our technical experts via “Ask an Expert”, or book a 30 minute technical consultation.
ECAD Download Options
Download 3D CAD product models directly from Harwin – STP and IGES.Download
No login is required.
