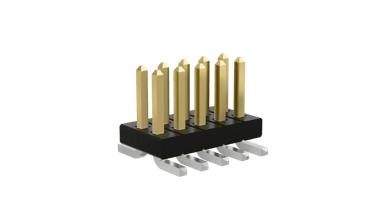

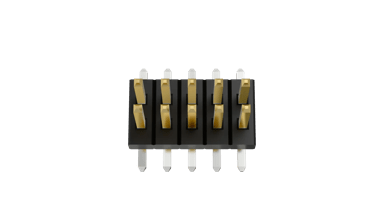

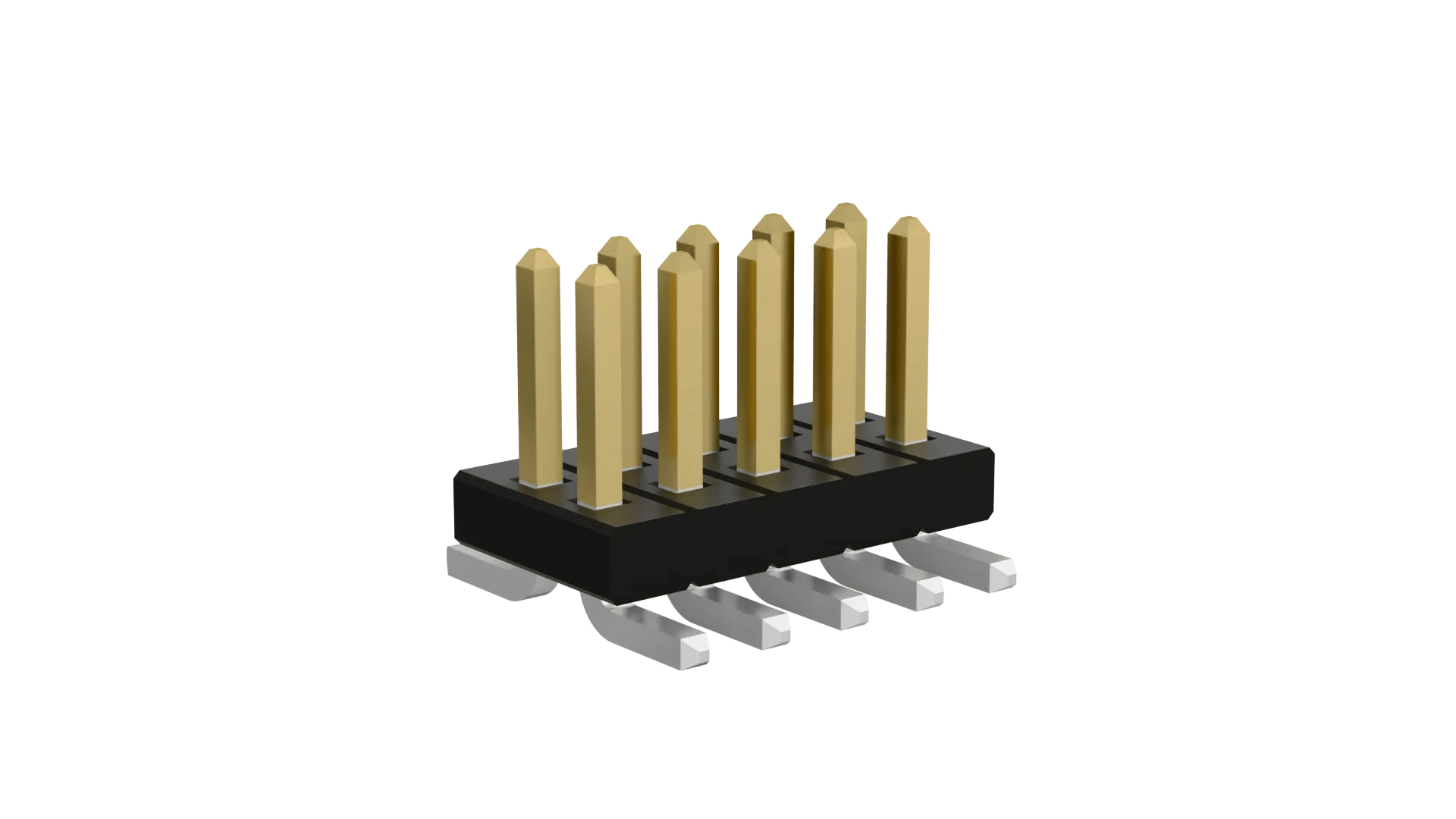

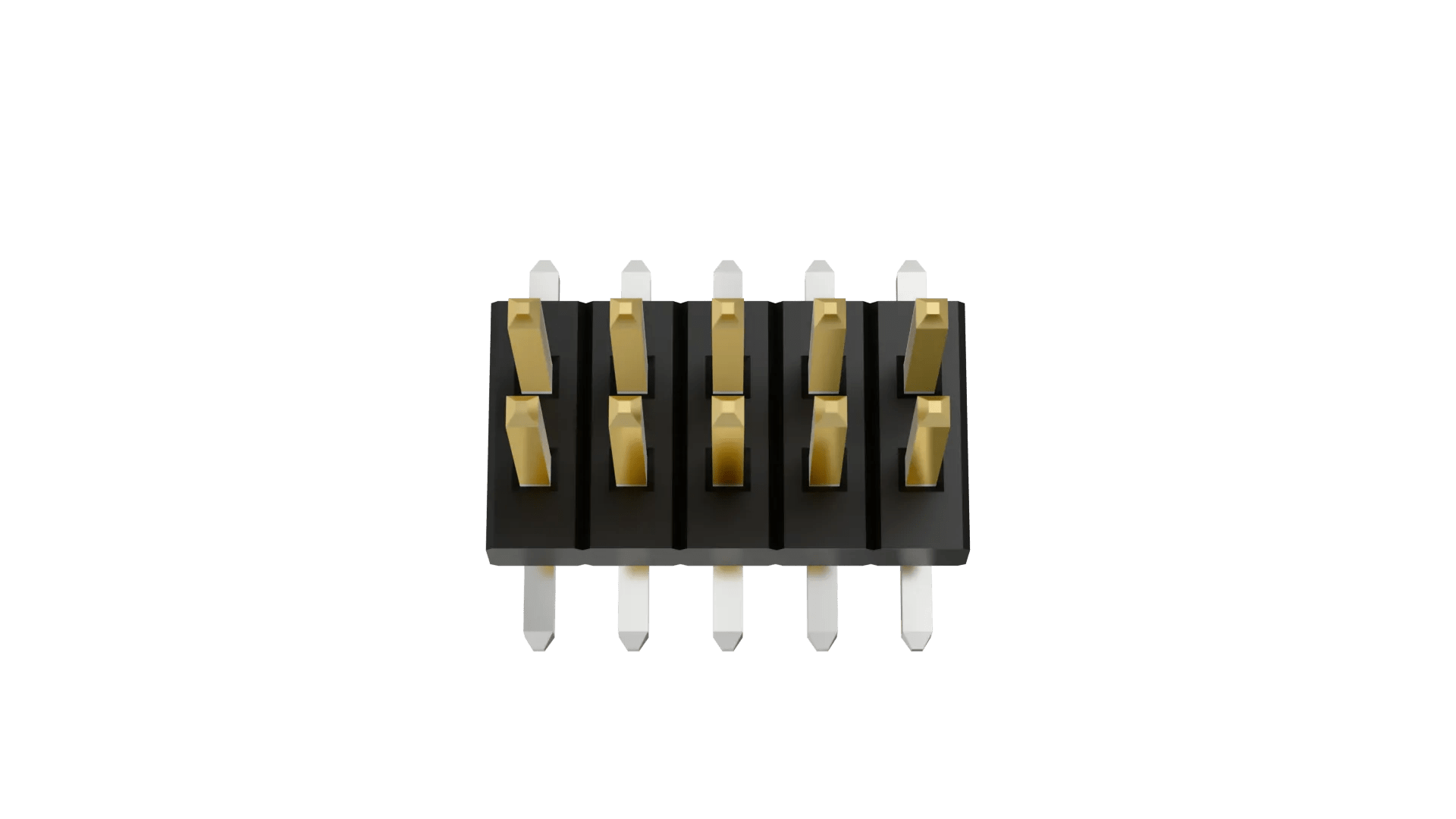

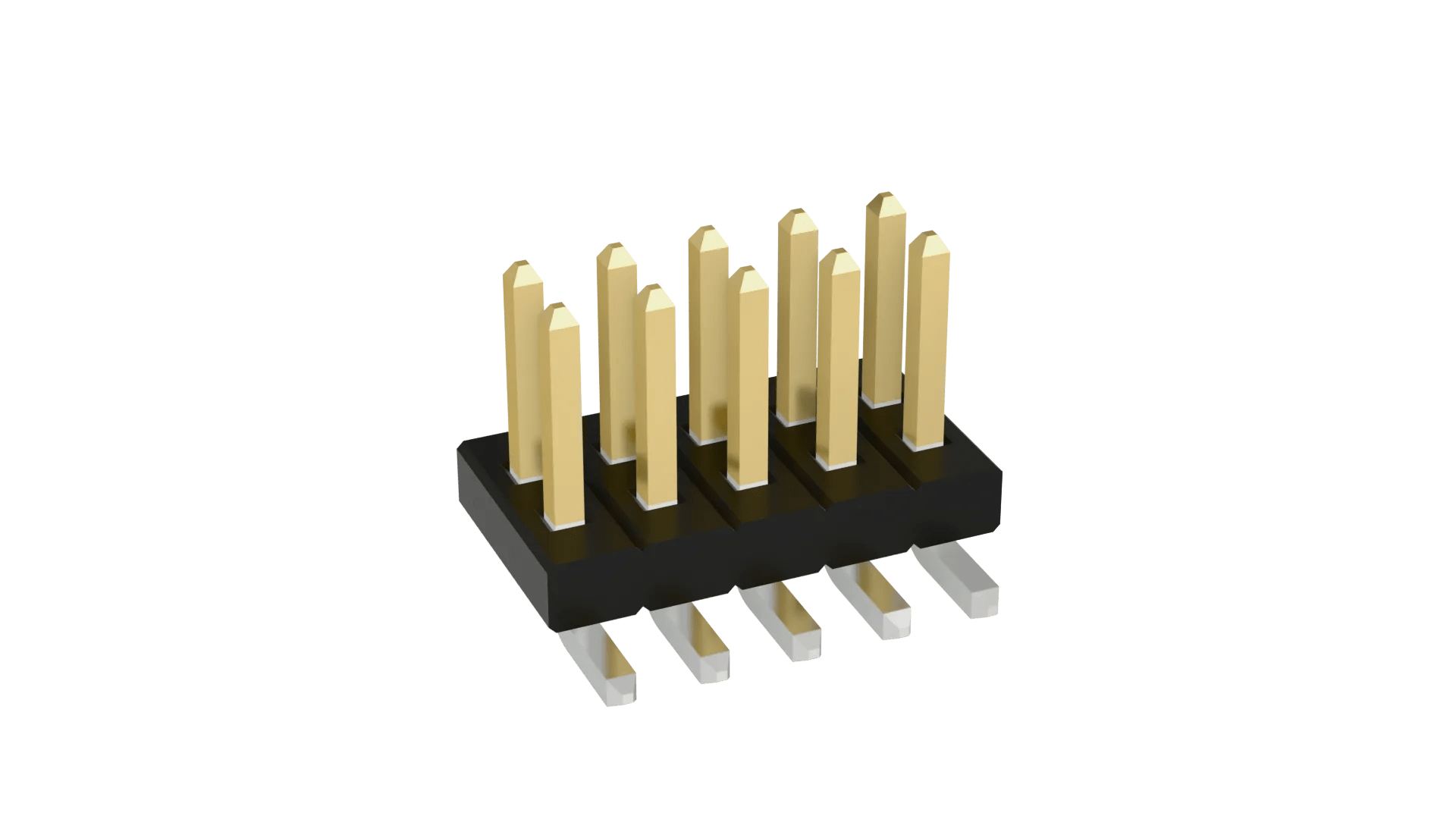

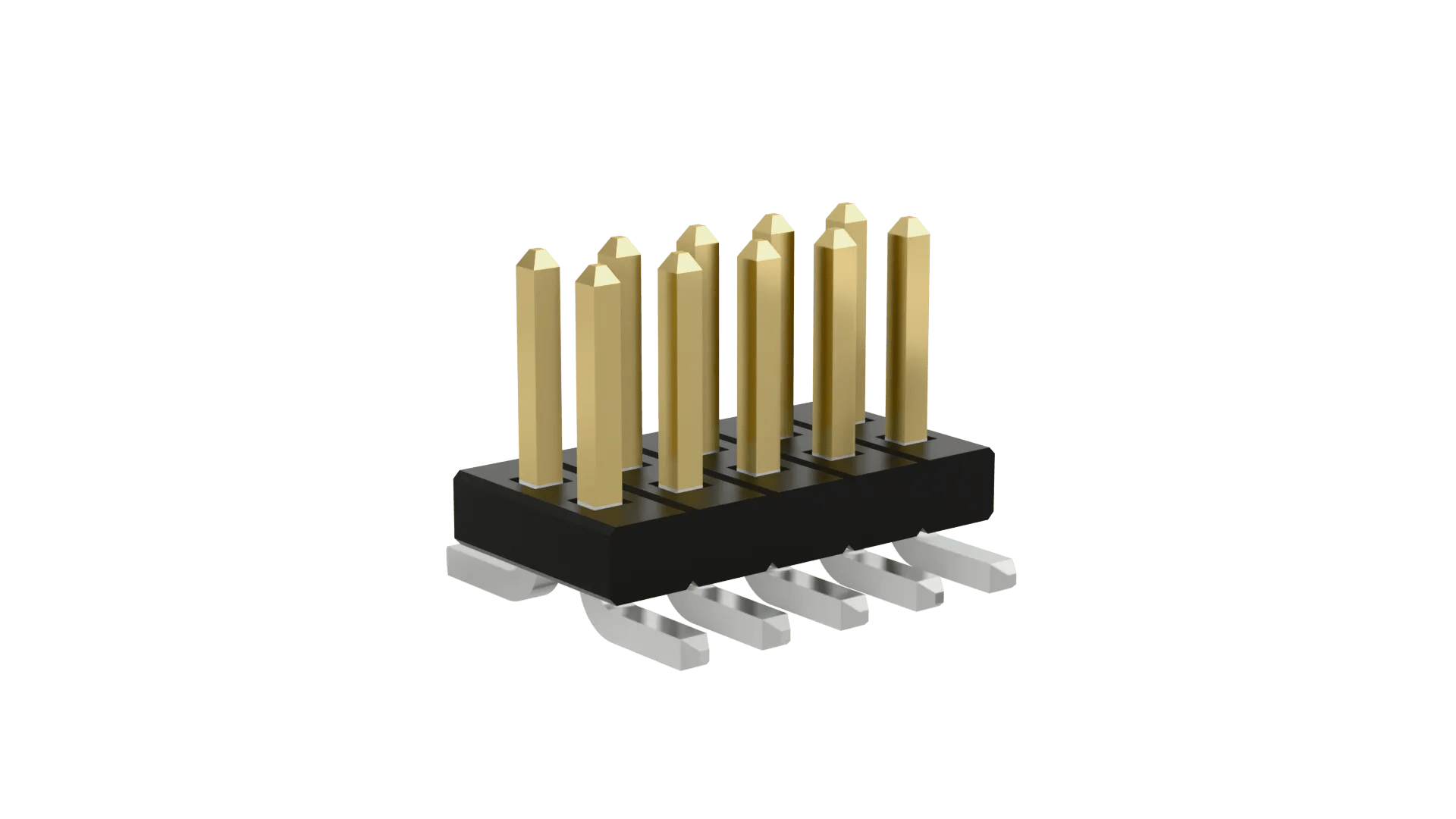

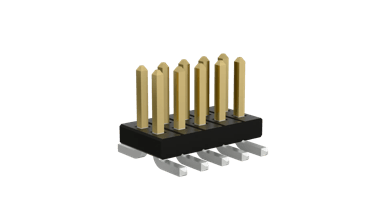

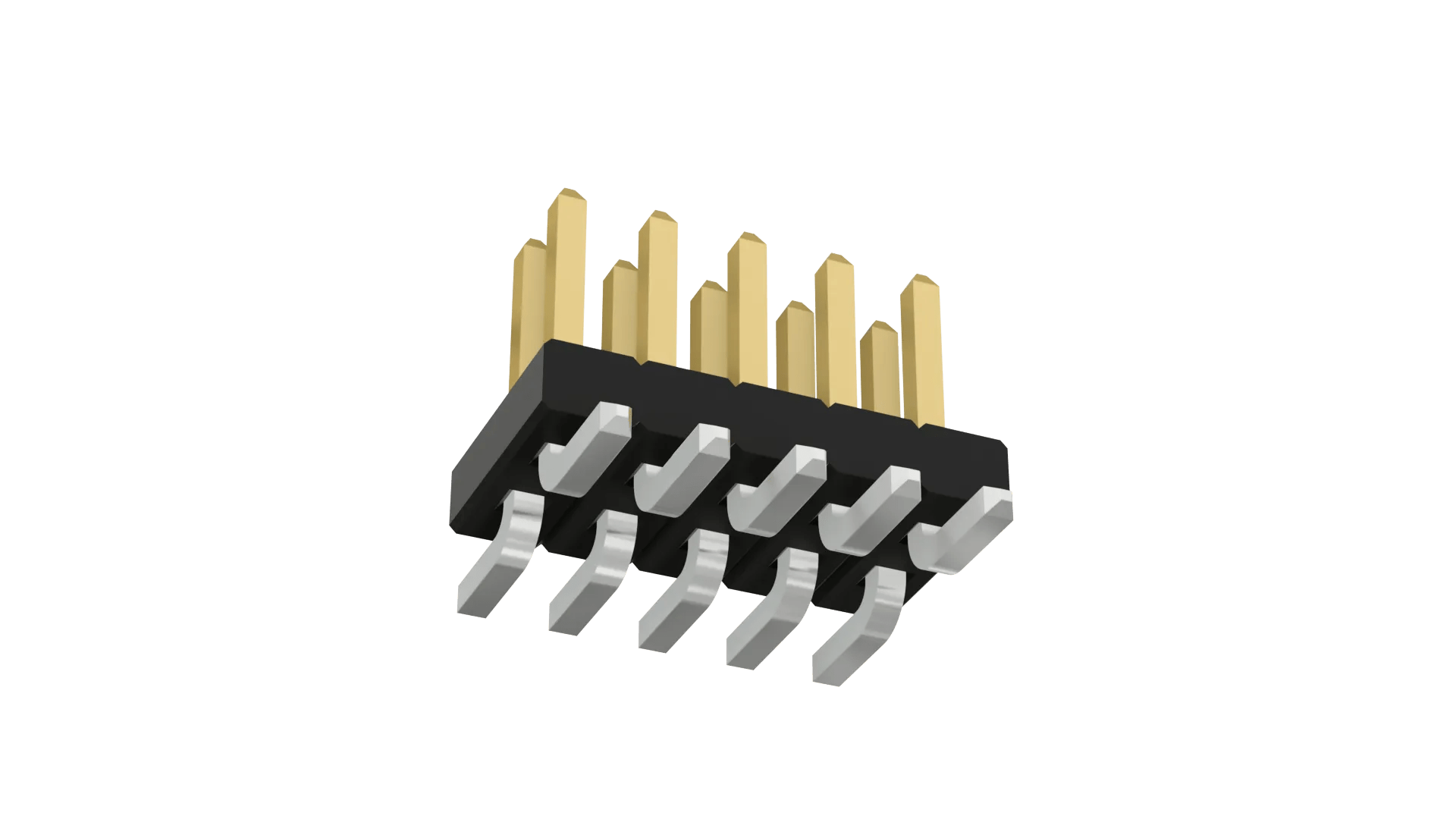

  • M50-3600542 - 5+5 Pos. Male DIL Vertical SMT Conn.

M50-3600542

5+5 Pos. Male DIL Vertical SMT Conn.

1.27mm (0.05") Pitch PCB Connector - Archer M50 Board-To-Board

  • Double Row SMT, 3mm mating pin height - 10 contacts (5+5).
  • Gold finish on contact area, Tin finish on termination.
  • Packaged loose.

Active

Popular product: currently in stock in network

RoHS Compliant - 2011/65/EU

(Does not require exemption)

Product Stock

Distributor Name Location of Stock Qty
Anglia Europe 15485 Website
Avnet Abacus Europe 14799 Buy Now
Digi-Key Global 23067 Buy Now
Farnell Europe 4780 Buy Now
Mouser Electronics Inc Global 8390 Buy Now
Newark USA 1572 Buy Now
TTI Europe Europe 28000 Website
TTI Inc USA 9804 Website

Product Information

Specification

+
Product Type: 1.27mm (0.05") Pitch PCB Connector - Archer M50 Board-To-Board
Contact Pitch: 1.27mm (0.05")
Contact Gender: Male/Plug
Connector Orientation: Vertical
Connection Type: Surface Mount (SMT)
Mating Pin Size: 0.4mm square
Current Rating: 1A
Operating Temperature: -40°C to +105°C
Maximum Soldering Temperature: 260°C for 10 seconds

Materials

+
Finish/Plating on Termination: 100% Tin over Nickel
Finish/Plating on Contact Surface: Gold
Base Material of Contact: Brass
Housing Material: Polyamide (Nylon) 6T
Housing Color: Black
Housing Material UL Rating: UL94V-0
Individual Part Weight: 0.122g
Packaging Style: Bulk/Loose

Dimensions

+
Number of Rows: 2
Total Number of Contacts: 10
Height of Connector above PCB: 4.68mm
End Stackable: No
Side Stackable: No
Polarising Features: No
Can be cut to another size: Yes
Mating Profiles/Heights

Related Products

+
Product in Tube Packaging, with Pick/Place caps: M50-3600542P
Product in Tape and Reel, or Reeled: M50-3600542R
Product Family: M50-360
