M50-3552542

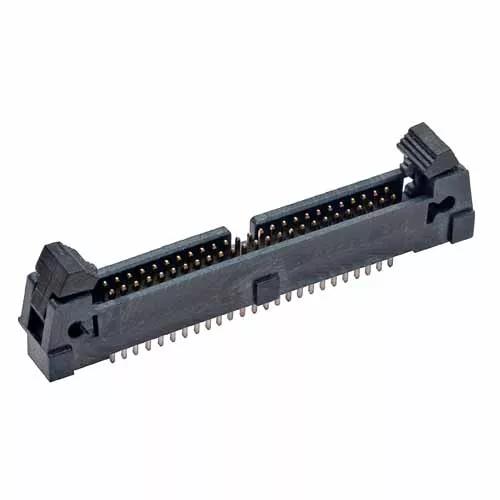

25+25 Pos. Male DIL Vertical Throughboard Conn. with Ejector

1.27mm (0.05") Pitch PCB Connector - Archer M50 IDC

  • Double Row, 2.7mm PC Tail Ejector Header with polarization – 50 contacts (25+25).
  • Gold finish on contact area, Tin finish on termination. Fitted with ejector latches to assist unmating.
  • Mates with IDC cable connector M50-3302542 or associated Cable Assemblies.
Add to Favorites

Technical Details

Specification

Contact Pitch:

1.27mm (0.05")

Contact Gender:

Male/Plug

Connector Orientation:

Vertical

Connection Type:

PC Tail / Throughboard

Mating Pin Size:

0.4mm square

Current Rating:

1.75A per contact

Operating Temperature:

-55°C to +125°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

50

Materials

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Brass

Housing Material:

LCP

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tube

Dimensions

Individual Part Weight:

2.511g

Overall Dimensions (L x W x D) in mm:

46.23 x 6.67 x 14.02

Height of Connector above PCB:

11.30mm

Length of Throughboard Tail:

2.72mm

Availability

1,762 in stock

Info Circle

Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.

Popular product
Distributor Location Quantity (Updated Daily)
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 605
Distributor Farnell
Location Europe
Quantity (Updated Daily) 558
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 249
Distributor Newark
Location USA
Quantity (Updated Daily) 178
Distributor TTI Inc
Location USA
Quantity (Updated Daily) 108
Distributor TTI Europe
Location Europe
Quantity (Updated Daily) 60
Distributor Anglia
Location Europe
Quantity (Updated Daily) 4
