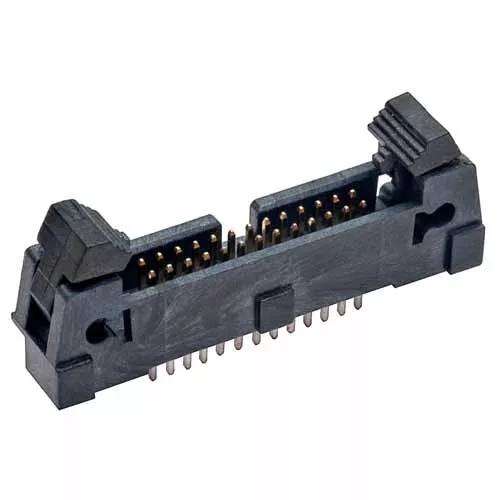

13+13 Pos. Male DIL Vertical Throughboard Conn. with Ejector
1.27mm (0.05") Pitch PCB Connector - Archer M50 IDC
2,157 in stock Check availability
7 similiar products View products
- Double Row, 2.7mm PC Tail Ejector Header with polarization – 26 contacts (13+13).
- Gold finish on contact area, Tin finish on termination. Fitted with ejector latches to assist unmating.
- Mates with IDC cable connector M50-3301342 or associated Cable Assemblies.
EU RoHS Status:
PC Tail / Throughboard
Mating Pin Size:
1.75A per contact
-55°C to +125°C
Max Solder Temperature: 260°C for 10 seconds
Can be cut to another size:
Number of Rows:
Number of Signal Contacts:
Finish / Plating on Termination:
100% Tin over Nickel
Finish / Plating on Contact Surface:
Base Material of Contact:
Housing Material UL Rating:
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
30.99 x 6.67 x 14.02
Height of Connector above PCB:
Length of Throughboard Tail:
