M50-3550842

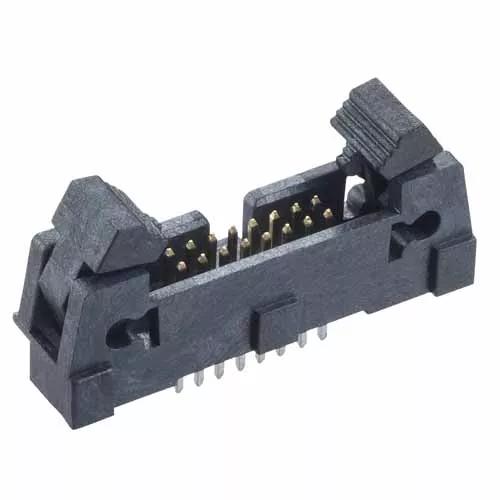

8+8 Pos. Male DIL Vertical Throughboard Conn. with Ejector

1.27mm (0.05") Pitch PCB Connector - Archer M50 IDC

  • Double Row, 2.7mm PC Tail Ejector Header with polarization – 16 contacts (8+8).
  • Gold finish on contact area, Tin finish on termination. Fitted with ejector latches to assist unmating.
  • Mates with IDC cable connector M50-3300842.
Add to Favorites

Technical Details

Specification

Contact Pitch:

1.27mm (0.05")

Contact Gender:

Male/Plug

Connector Orientation:

Vertical

Connection Type:

PC Tail / Throughboard

Mating Pin Size:

0.4mm square

Current Rating:

1.75A

Operating Temperature:

-55°C to +125°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

16

Materials

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Brass

Housing Material:

LCP

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tube

Dimensions

Individual Part Weight:

1.321g

Overall Dimensions (L x W x D) in mm:

24.64 x 6.67 x 14.02

Height of Connector above PCB:

11.30mm

Length of Throughboard Tail:

2.72mm

Availability

Limited availability or made-to-order
Distributor Location Quantity
Mouser Electronics Inc
Global
Status858

*Stock available: contact distributor to purchase

Questions & Answers Ask a Question

No questions have been asked yet. Click here to ask a question.

Downloads

TECHNICAL DOCUMENTS

PDF

Technical Drawing / Datasheet - M50-355.pdf

ZIP

M50-3550842 CAD Model (ZIP file containing STP and IGES)

Download
PDF

C029XX Component Specification - Archer M50 and M52 Series (1.27mm pitch PCB connectors)

ENVIRONMENTAL COMPLIANCE

PDF

RoHS Compliant (2015/863/EU) with no Exemption required

PDF

REACH Harwin statement (12-Feb-2020) including 205 SVHC (16-Jan-2020), Annex XIV & XVII

XLSX

Conflict Minerals Reporting Template (CMRT 6.01) - Company Summary Statement

PDF

Material composition for M50-355 series

INSTRUCTION SHEETS

PDF

Product Training Module - Overview Guide to the Harwin Archer range

OTHER DOWNLOADS

PDF

3D PDF file - M50-3550842_3D.pdf

PDF

Catalog page - Archer M50 IDC Male Throughboard, SMT Connectors

PDF

Catalog page - Archer M50 IDC Specification, Mating Profiles
