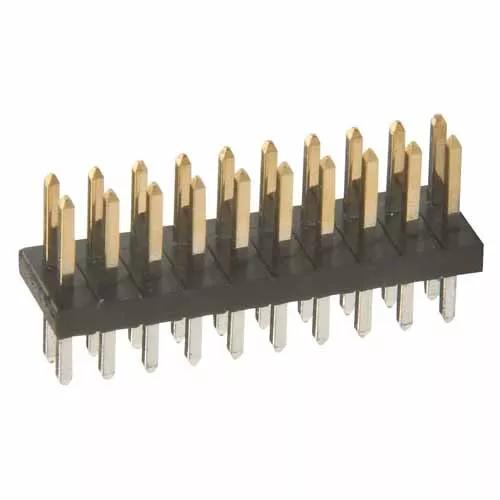

M50-3501042

10+10 Pos. Male DIL Vertical Throughboard Conn.

1.27mm (0.05") Pitch PCB Connector - Archer M50 Board-To-Board

  • Double Row, 2.3mm PC Tail, 3mm mating pin height – 20 contacts (10+10).
  • Gold finish on contact area, Tin finish on termination.
Add to Favorites

Technical Details

Specification

Contact Pitch:

1.27mm (0.05")

Contact Gender:

Male/Plug

Connector Orientation:

Vertical

Connection Type:

PC Tail / Throughboard

Mating Pin Size:

0.4mm square

Current Rating:

1A max per contact

Operating Temperature:

-40°C to +105°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

Yes

Number of Rows:

2

Number of Signal Contacts:

20

Materials

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Brass

Housing Material:

Polyamide (Nylon) 6T

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

0.245g

Overall Dimensions (L x W x D) in mm:

12.70 x 3.40 x 6.30

Height of Connector above PCB:

4.00mm

Length of Throughboard Tail:

2.30mm

Availability

20,701 in stock

Info Circle

Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.

Popular product
Distributor Location Quantity (Updated Daily)
Distributor Iconnexion Asia Pte Ltd
Location Asia
Quantity (Updated Daily) 6000
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 2889
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 2188
Distributor Avnet Abacus
Location Europe
Quantity (Updated Daily) 2000
Distributor Farnell
Location Europe
Quantity (Updated Daily) 1880
Distributor TTI Inc
Location USA
Quantity (Updated Daily) 702
Distributor Newark
Location USA
Quantity (Updated Daily) 523
Distributor TTI Europe
Location Europe
Quantity (Updated Daily) 500
Distributor Genalog
Location Europe
Quantity (Updated Daily) 12
Distributor Anglia
Location Europe
Quantity (Updated Daily) 7

Stock held by Harwin: contact distributor to purchase.

Distributor Harwin
Location Global
Quantity (Updated Daily) 4000

Questions & Answers Ask a Question

How do I cut down this pin header?

There is no hand cutting tool for this smaller pitch. You can use a fine slitting saw if you have access to cutting machinery, and this will give a clean edge.
