M50-3500842

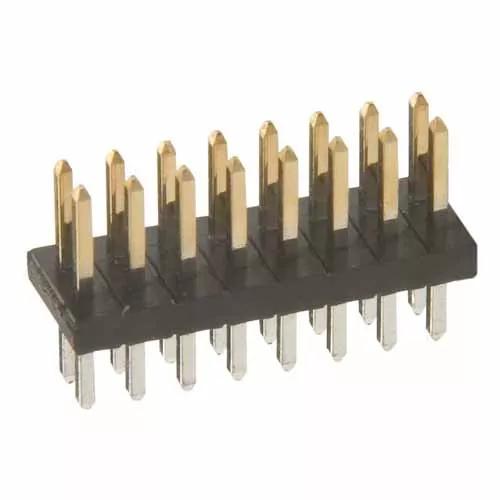

8+8 Pos. Male DIL Vertical Throughboard Conn.

1.27mm (0.05") Pitch PCB Connector - Archer M50 Board-To-Board

  • Double Row, 2.3mm PC Tail, 3mm mating pin height – 16 contacts (8+8).
  • Gold finish on contact area, Tin finish on termination.
Add to Favorites

Technical Details

Specification

Contact Pitch:

1.27mm (0.05")

Contact Gender:

Male/Plug

Connector Orientation:

Vertical

Connection Type:

PC Tail / Throughboard

Mating Pin Size:

0.4mm square

Current Rating:

1A max per contact

Operating Temperature:

-40°C to +105°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

Yes

Number of Rows:

2

Number of Signal Contacts:

16

Materials

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Brass

Housing Material:

Polyamide (Nylon) 6T

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

0.194g

Overall Dimensions (L x W x D) in mm:

10.16 x 3.40 x 6.30

Height of Connector above PCB:

4.00mm

Length of Throughboard Tail:

2.30mm

Availability

Popular product
Distributor Location Quantity
Digi-Key
Global
Status980
Farnell
Europe
Status755
Harwin
Global
Status3500
Mouser Electronics Inc
Global
Status704
TTI Inc
USA
Status380

*Stock available: contact distributor to purchase

Questions & Answers Ask a Question

How do I cut down this pin header?

There is no hand cutting tool for this smaller pitch. You can use a fine slitting saw if you have access to cutting machinery, and this will give a clean edge.
