Active Product

M50-3500742

7+7 Pos. Male DIL Vertical Throughboard Conn.

1.27mm (0.05") Pitch PCB Connector - Archer M50 Board-To-Board

Order Sample

Add to Favorites

In stock Check availability

6 similar products View products

Traceparts account required

Product Description

Double Row, 2.3mm PC Tail, 3mm mating pin height – 14 contacts (7+7).
Gold finish on contact area, Tin finish on termination.

M50-3500742 - 7+7 Pos. Male DIL Vertical Throughboard Conn.

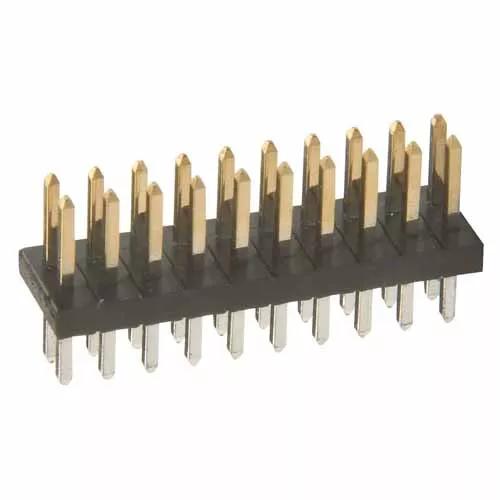

Representative image of product family

Traceparts account required

Technical Details

EU RoHS Status:

RoHS Compliant (2015/863/EU) with no Exemption required

Contact Pitch:

1.27mm (0.05")

Contact Gender:

Male/Plug

Connector Orientation:

Vertical

Connection Type:

PC Tail / Throughboard

Mating Pin Size:

0.4mm square

Current Rating:

1A max per contact

Operating Temperature:

-40°C to +105°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

End Stackable:

Side Stackable:

Can be cut to another size:

Yes

Number of Rows:

Number of Signal Contacts:

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Brass

Housing Material:

Polyamide (Nylon) 6T

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Bulk/Loose

Individual Part Weight:

0.172g

Overall Dimensions (L x W x D) in mm:

8.89 x 3.40 x 6.30

Height of Connector above PCB:

4.00mm

Length of Throughboard Tail:

2.30mm

Mating Profiles:

Catalog page - Archer M50 Mating Profiles

Frequently Asked Questions Ask a Question

There is no hand cutting tool for this smaller pitch. You can use a fine slitting saw if you have access to cutting machinery, and this will give a clean edge.
