M50-3500642

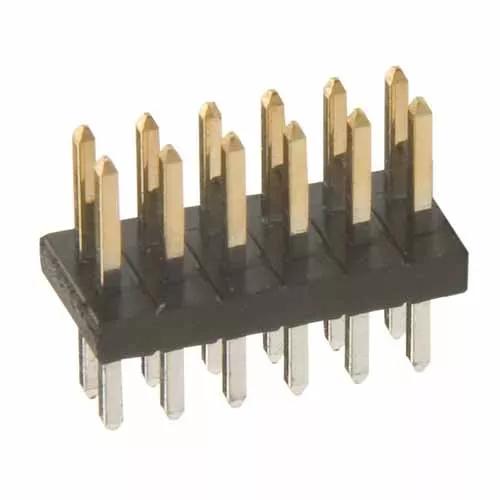

6+6 Pos. Male DIL Vertical Throughboard Conn.
1.27mm (0.05") Pitch PCB Connector - Archer M50 Board-To-Board
11,190 in stock Check availability
8 similiar products View products
Samacsys account required
No login is required
Product Description
- Double Row, 2.3mm PC Tail, 3mm mating pin height – 12 contacts (6+6).
- Gold finish on contact area, Tin finish on termination.
Samacsys account required
No login is required
Technical Details
Specification
EU RoHS Status:
Contact Pitch:
1.27mm (0.05")
Contact Gender:
Male/Plug
Connector Orientation:
Vertical
Connection Type:
PC Tail / Throughboard
Mating Pin Size:
0.4mm square
Current Rating:
1A max per contact
Operating Temperature:
-40°C to +105°C
Soldering Data:
Max Solder Temperature: 260°C for 10 seconds
Polarising Features:
No
End Stackable:
No
Side Stackable:
No
Can be cut to another size:
Yes
Number of Rows:
2
Number of Signal Contacts:
12
Materials
Finish / Plating on Termination:
100% Tin over Nickel
Finish / Plating on Contact Surface:
Gold
Base Material of Contact:
Brass
Housing Material:
Polyamide (Nylon) 6T
Housing Colour:
Black
Housing Material UL Rating:
UL94V-0
Packaging Style:
Bulk/Loose
Dimensions
Individual Part Weight:
0.147g
Overall Dimensions (L x W x D) in mm:
7.62 x 3.40 x 6.30
Height of Connector above PCB:
4.00mm
Length of Throughboard Tail:
2.30mm
Mating Profiles:
