Home > M50-3302542
Active Product

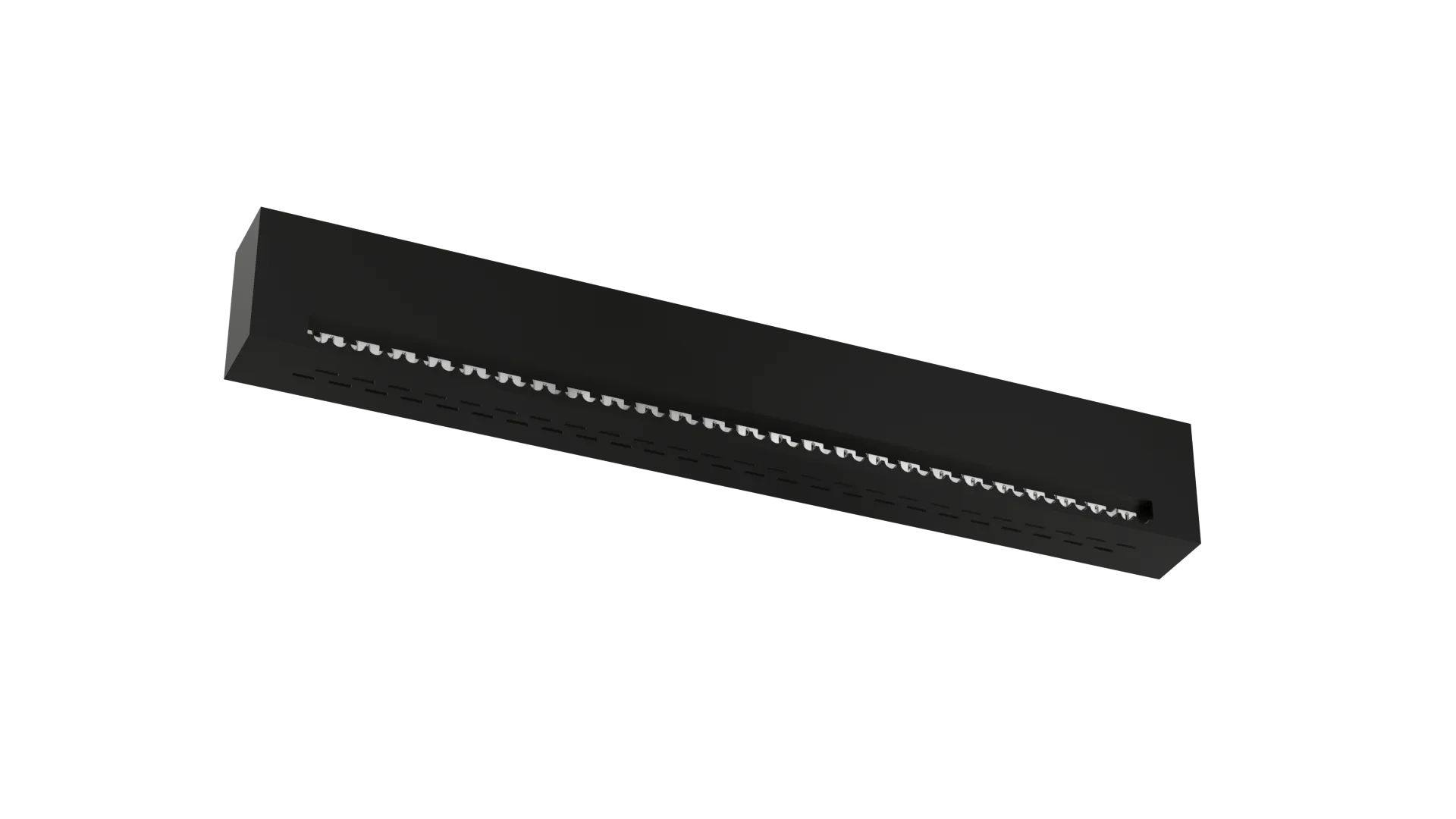

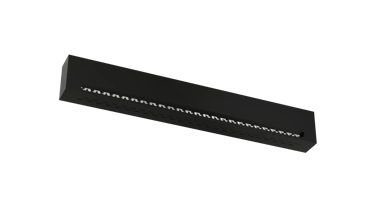

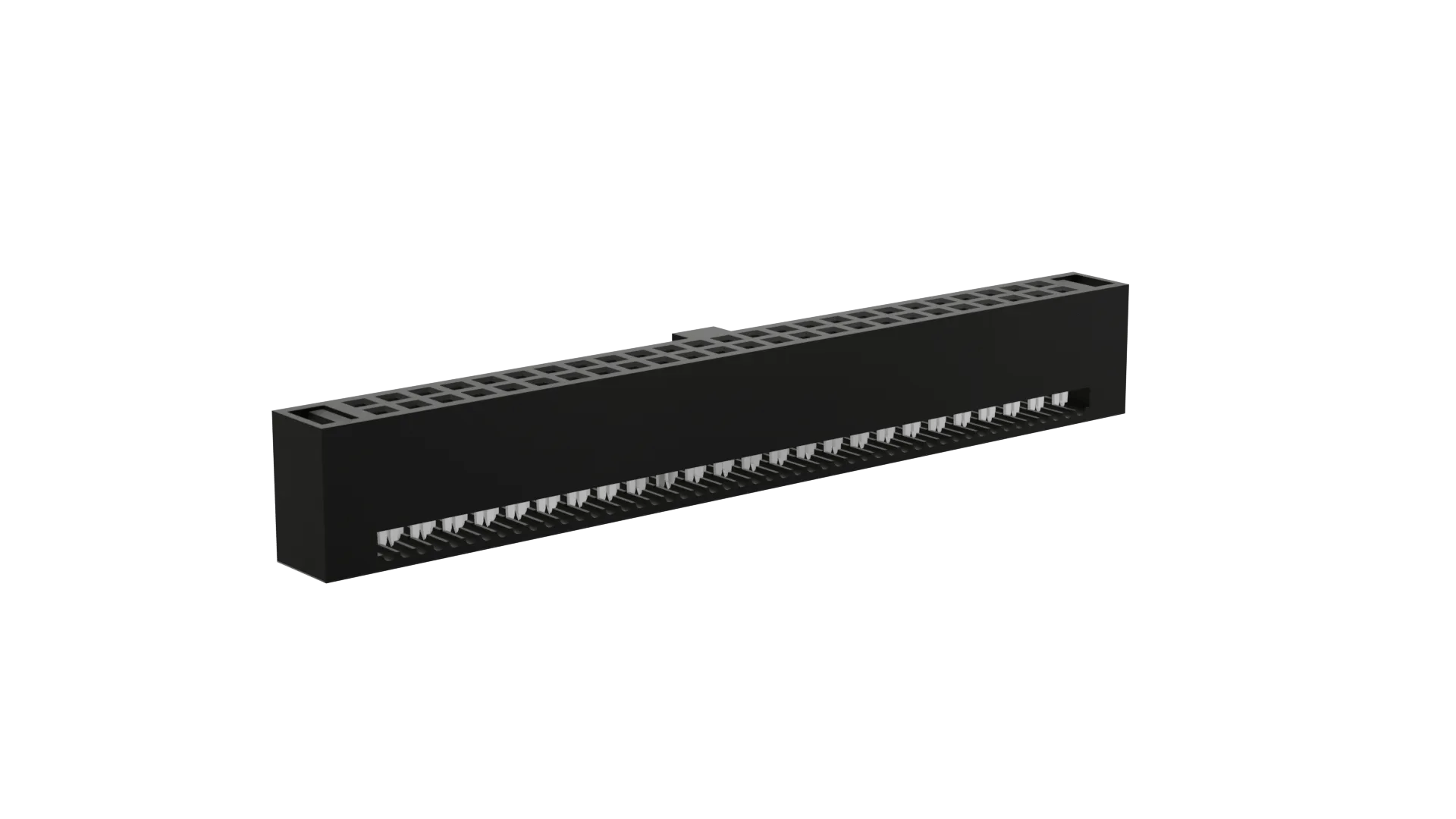

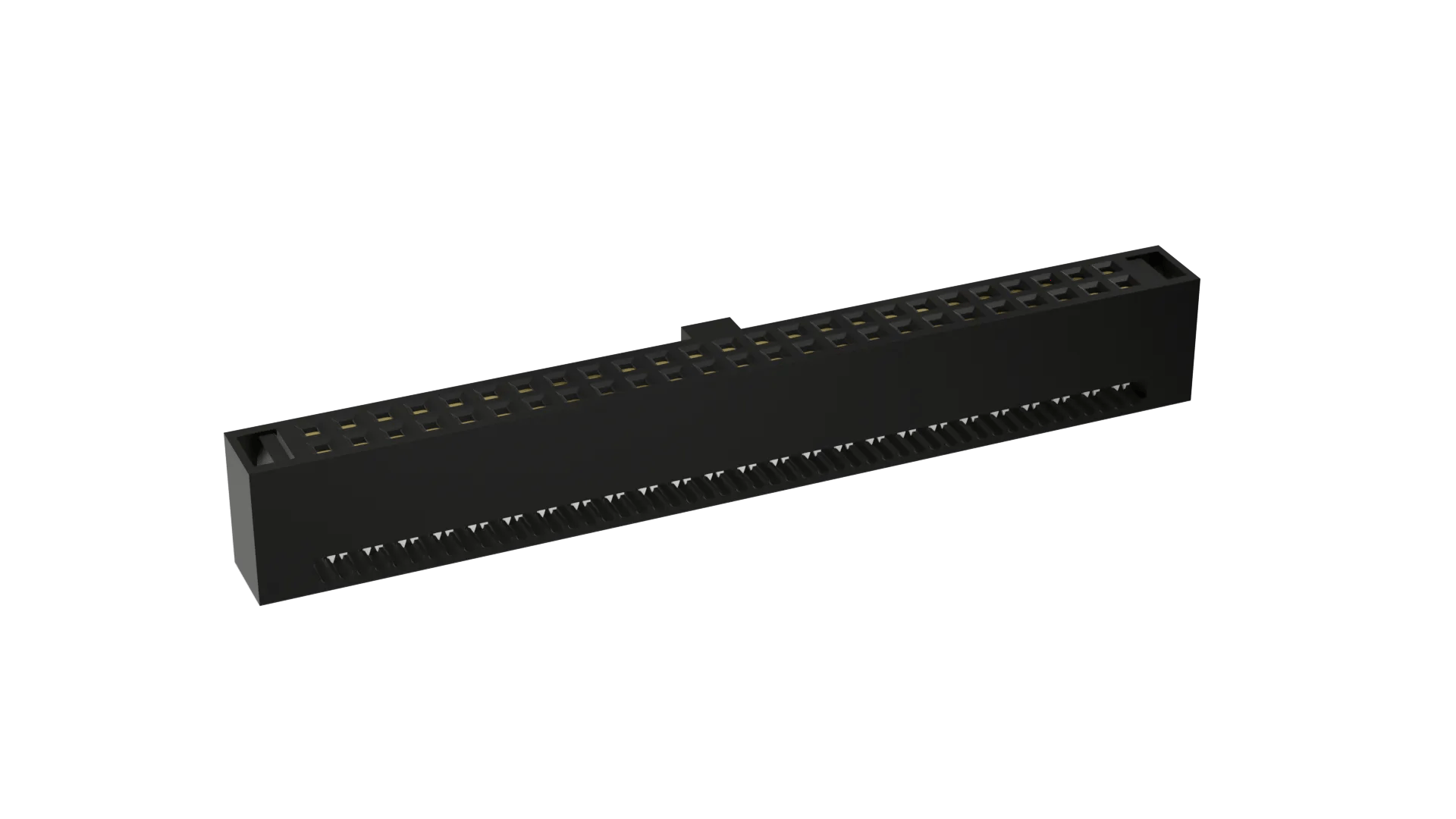

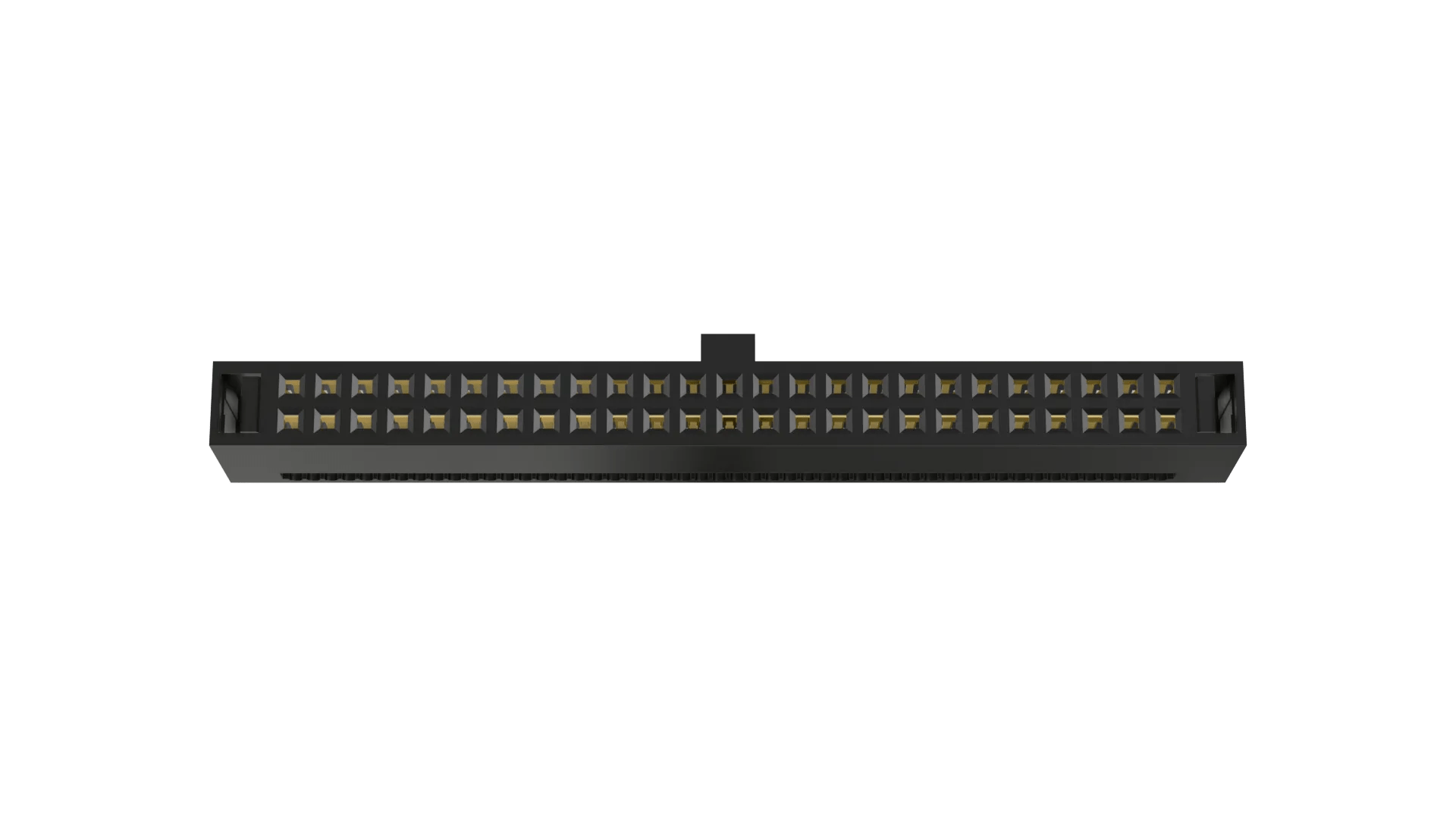

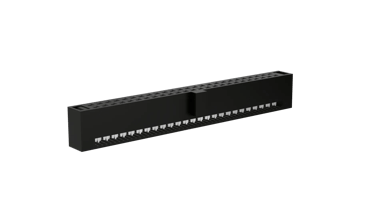

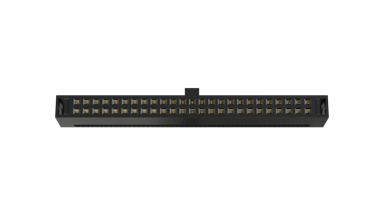

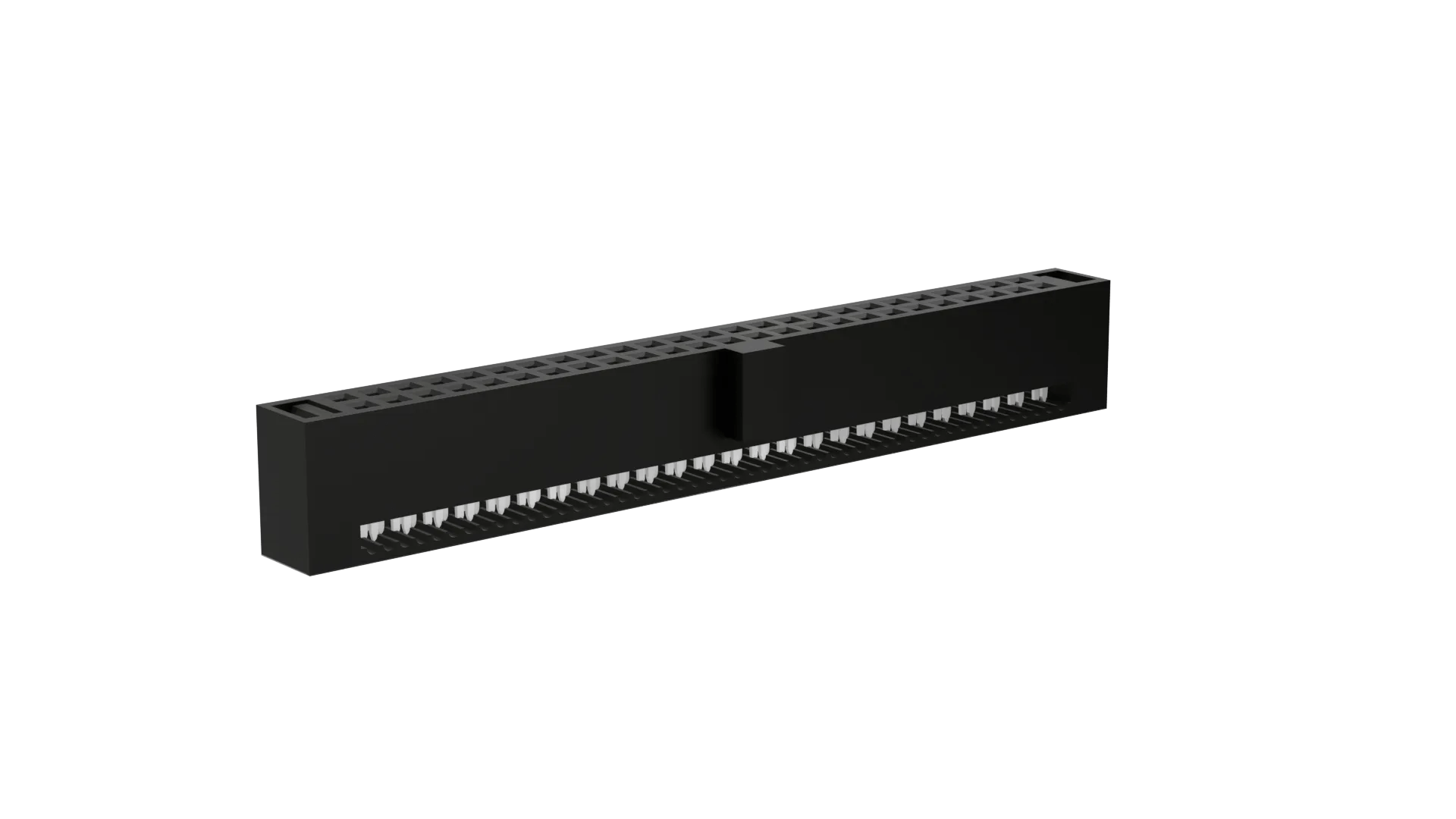

M50-3302542

25+25 Pos. Female DIL Ribbon Cable Connector

1.27mm (0.05") Pitch PCB Connector - Archer M50 IDC

Add to Favorites

18,391 in stock   Check availability

12 similiar products View products

Samacsys account required

Download

No login is required

Product Description

  • Double Row Female IDC connector with polarization – 50 contacts (25+25).
  • Gold finish on contact area, Tin finish on termination.
  • For use with 0.635mm pitch, 30AWG ribbon cable.

Technical Details

Specification

Contact Pitch:

1.27mm (0.05")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Angled

Connection Type:

Cable (Ribbon IDC)

Mating Pin Size:

0.4mm square

Current Rating:

1A per contact

Operating Temperature:

-40°C to +105°C

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

50

Materials

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Phosphor Bronze

Housing Material:

PBT

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

0.884g

Overall Dimensions (L x W x D) in mm:

35.95 x 4.05 x 5.10

Frequently Asked Questions Ask a Question

Can you please specify the correct crimping tool for this product?

The IDC termination tool for this product is Z50-020 – you can see it listed if you scroll down to Related Products. The instruction sheet for using this tool is IS-43.

Was this answer useful?

Downloads

TECHNICAL DOCUMENTS

ENVIRONMENTAL COMPLIANCE

RoHS Compliant (2015/863/EU) with no Exemption required

PDF Download

INSTRUCTION SHEETS
