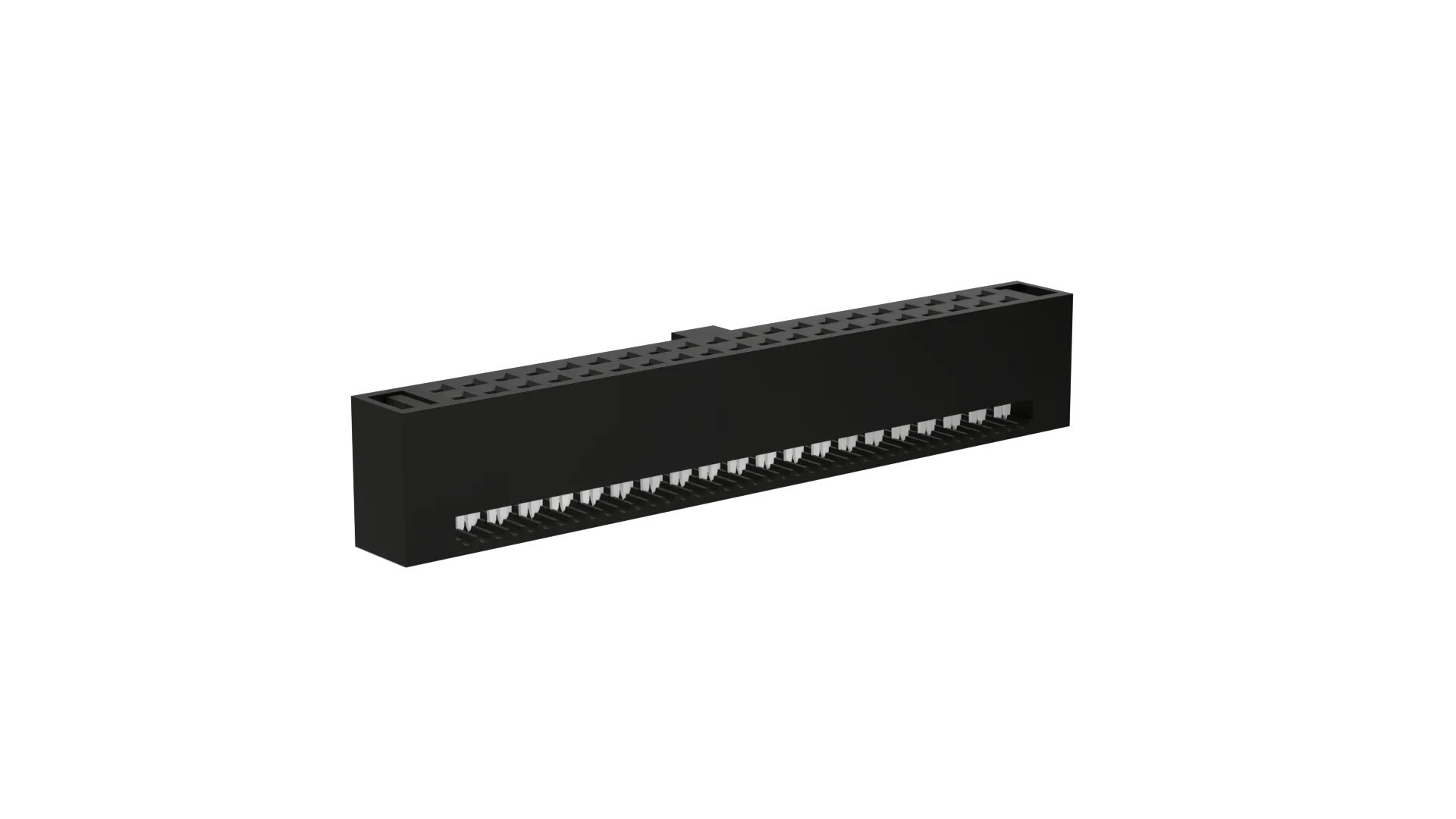

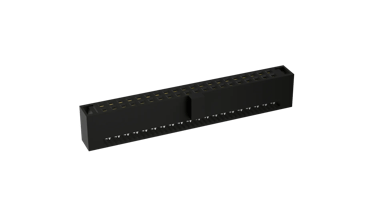

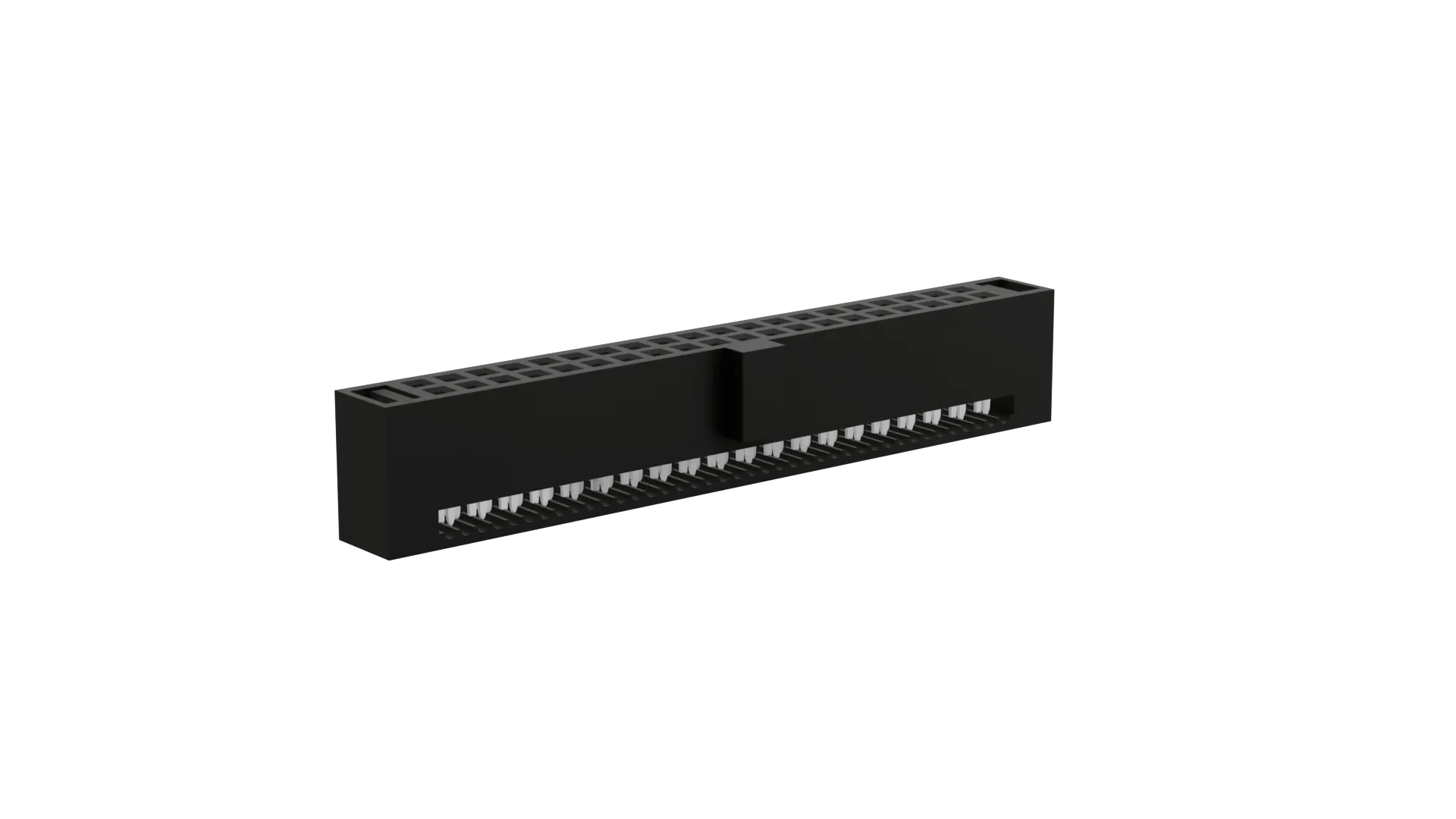

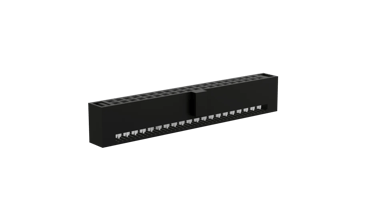

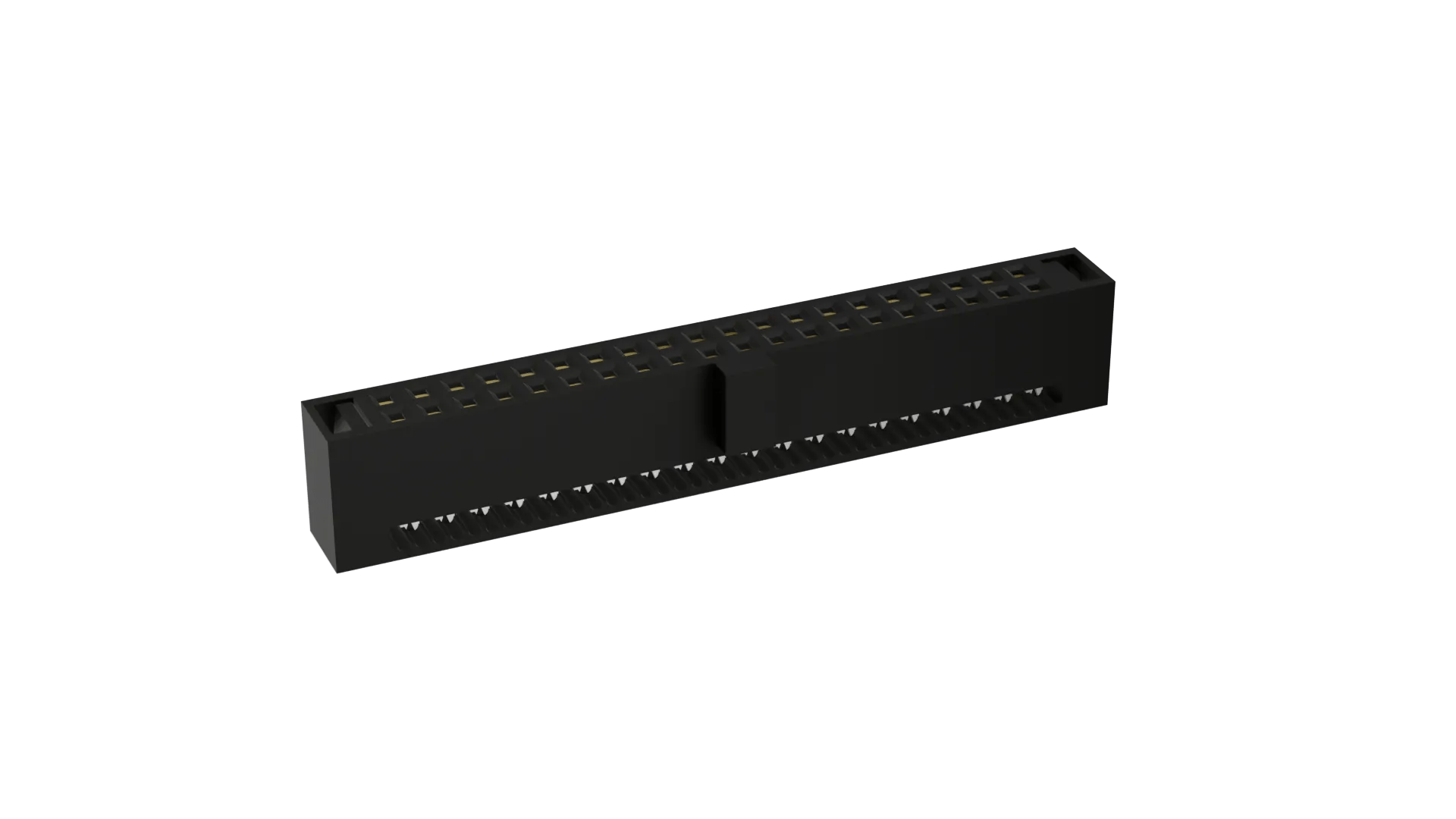

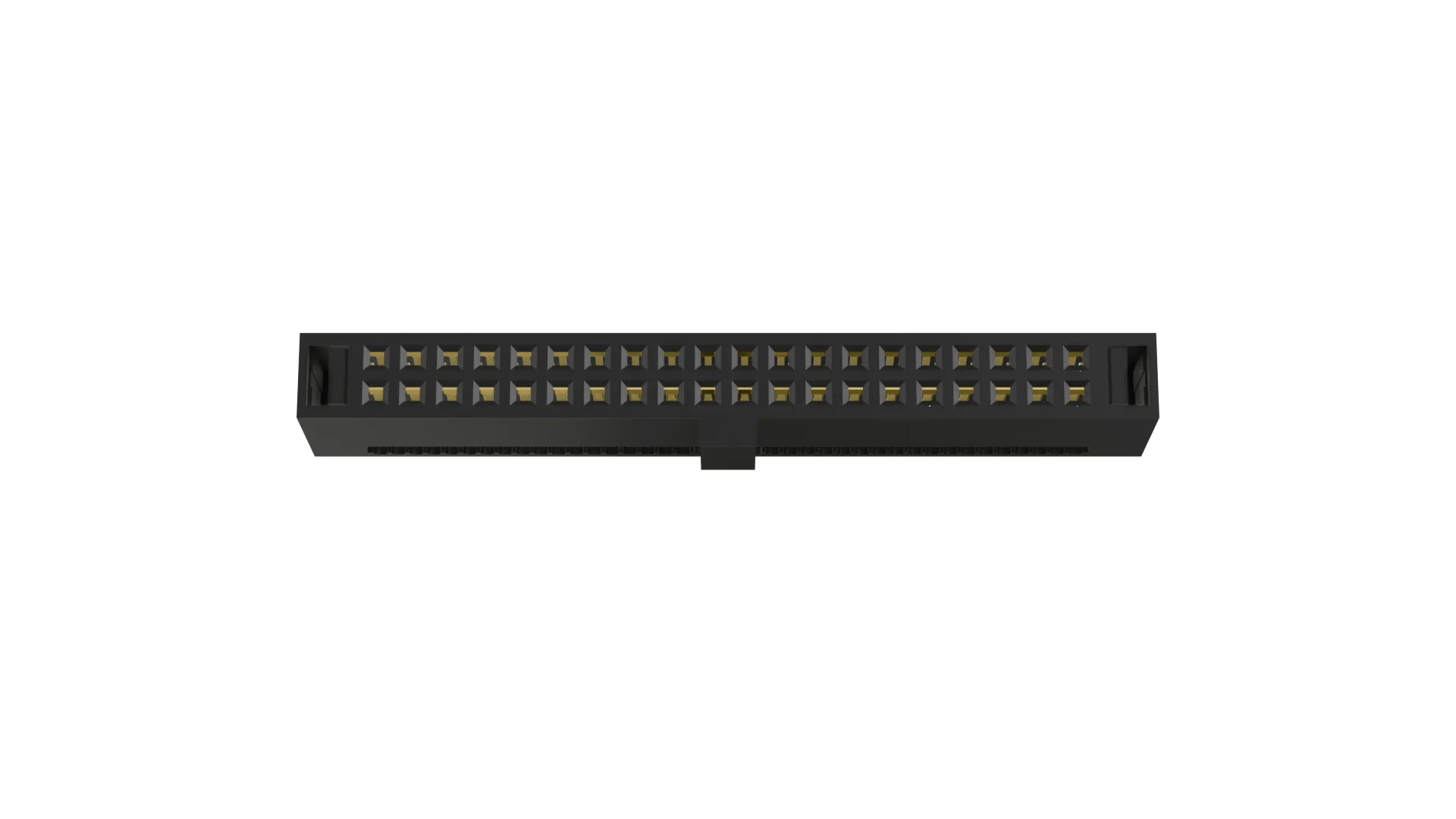

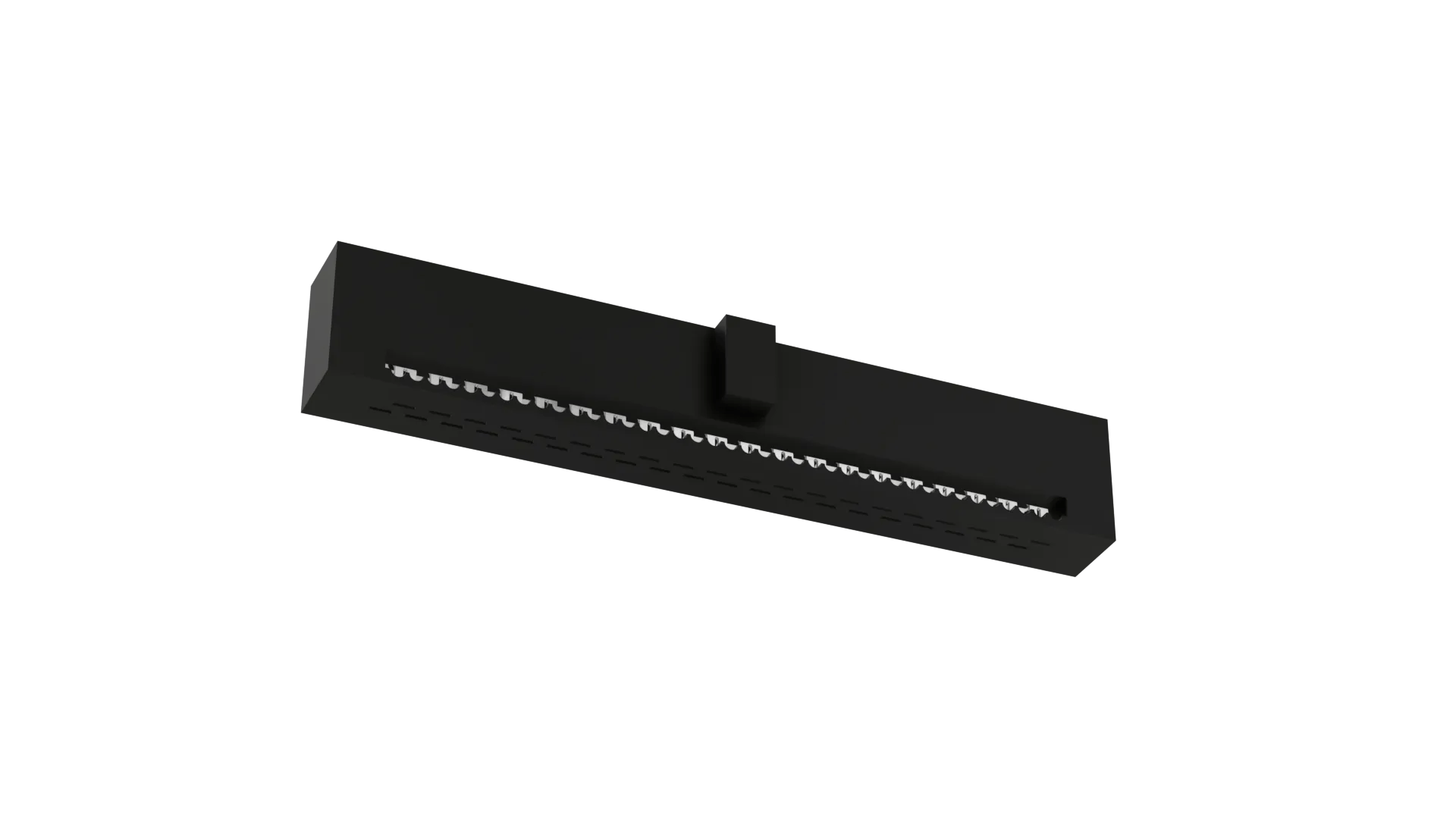

20+20 Pos. Female DIL Ribbon Cable Connector
1.27mm (0.05") Pitch PCB Connector - Archer M50 IDC
3,893 in stock Check availability
12 similiar products View products
- Double Row Female IDC connector with polarization – 40 contacts (20+20).
- Gold finish on contact area, Tin finish on termination.
- For use with 0.635mm pitch, 30AWG ribbon cable.
EU RoHS Status:
Cable (Ribbon IDC)
Mating Pin Size:
1A per contact
-40°C to +105°C
Can be cut to another size:
Number of Rows:
Number of Signal Contacts:
Finish / Plating on Termination:
100% Tin over Nickel
Finish / Plating on Contact Surface:
Base Material of Contact:
Housing Material UL Rating:
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
29.60 x 4.05 x 5.10
Frequently Asked Questions Ask a Question
RoHS Compliant (2015/863/EU) with no Exemption requiredPDF Download
