M50-3301742

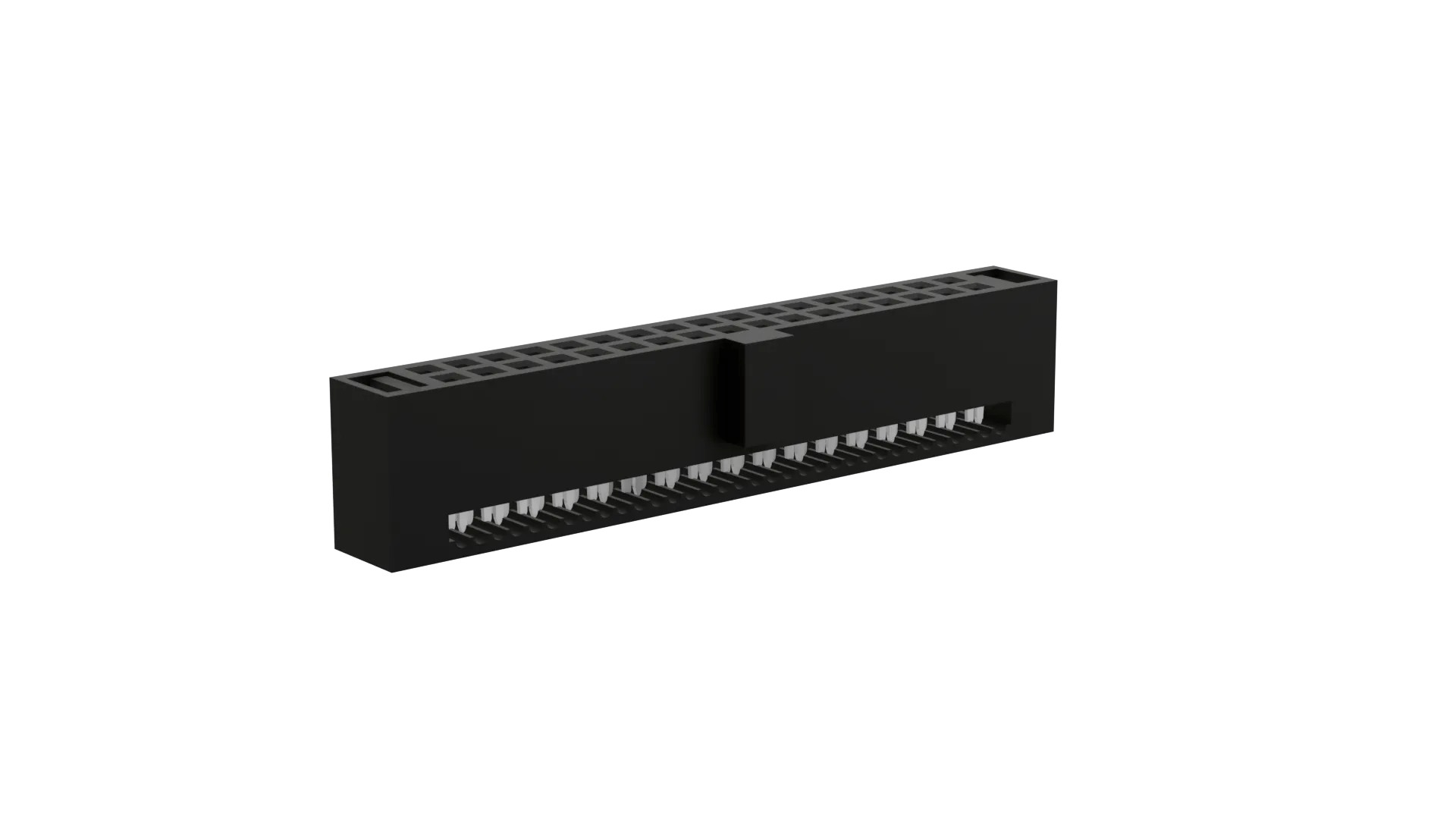

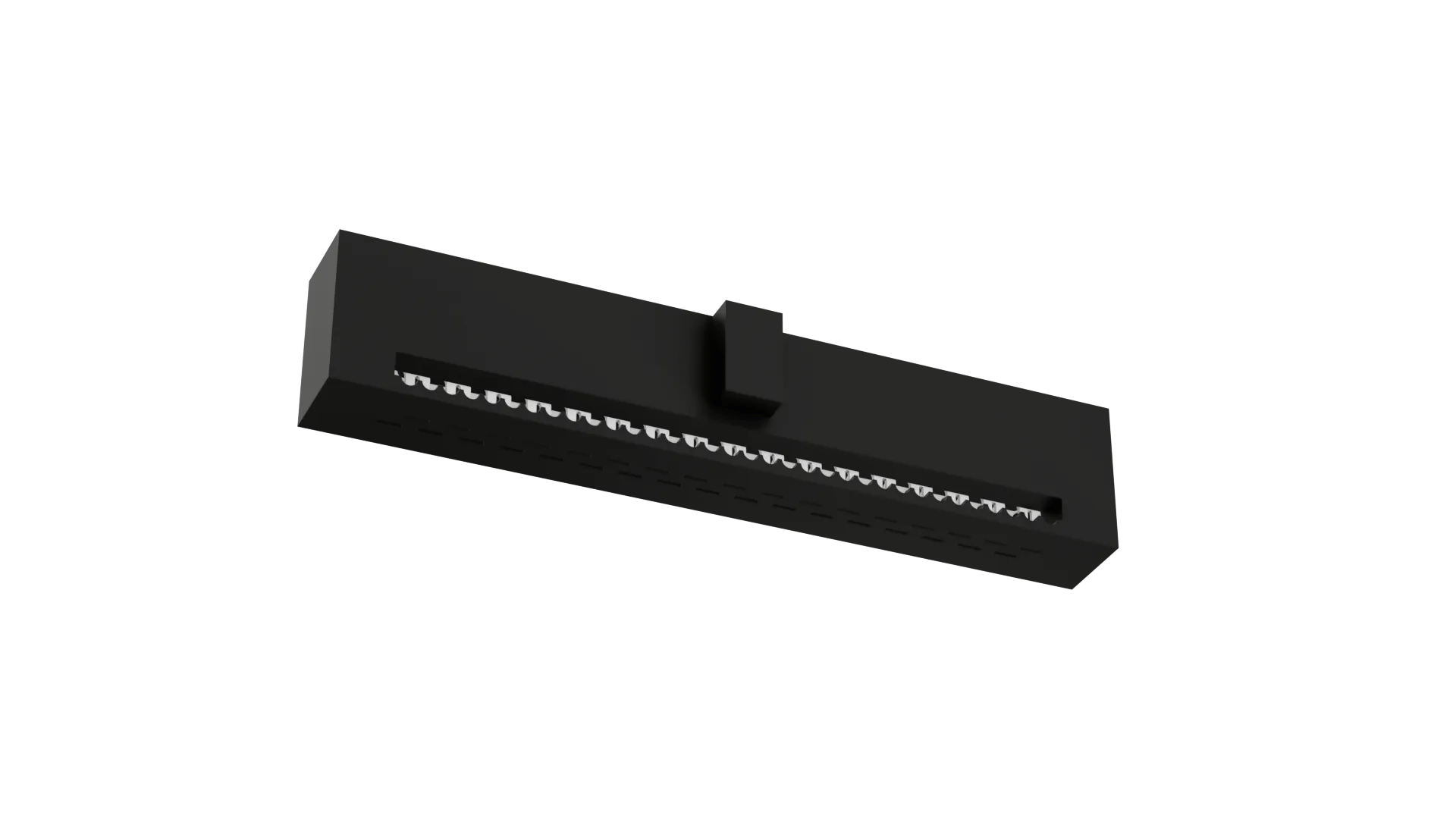

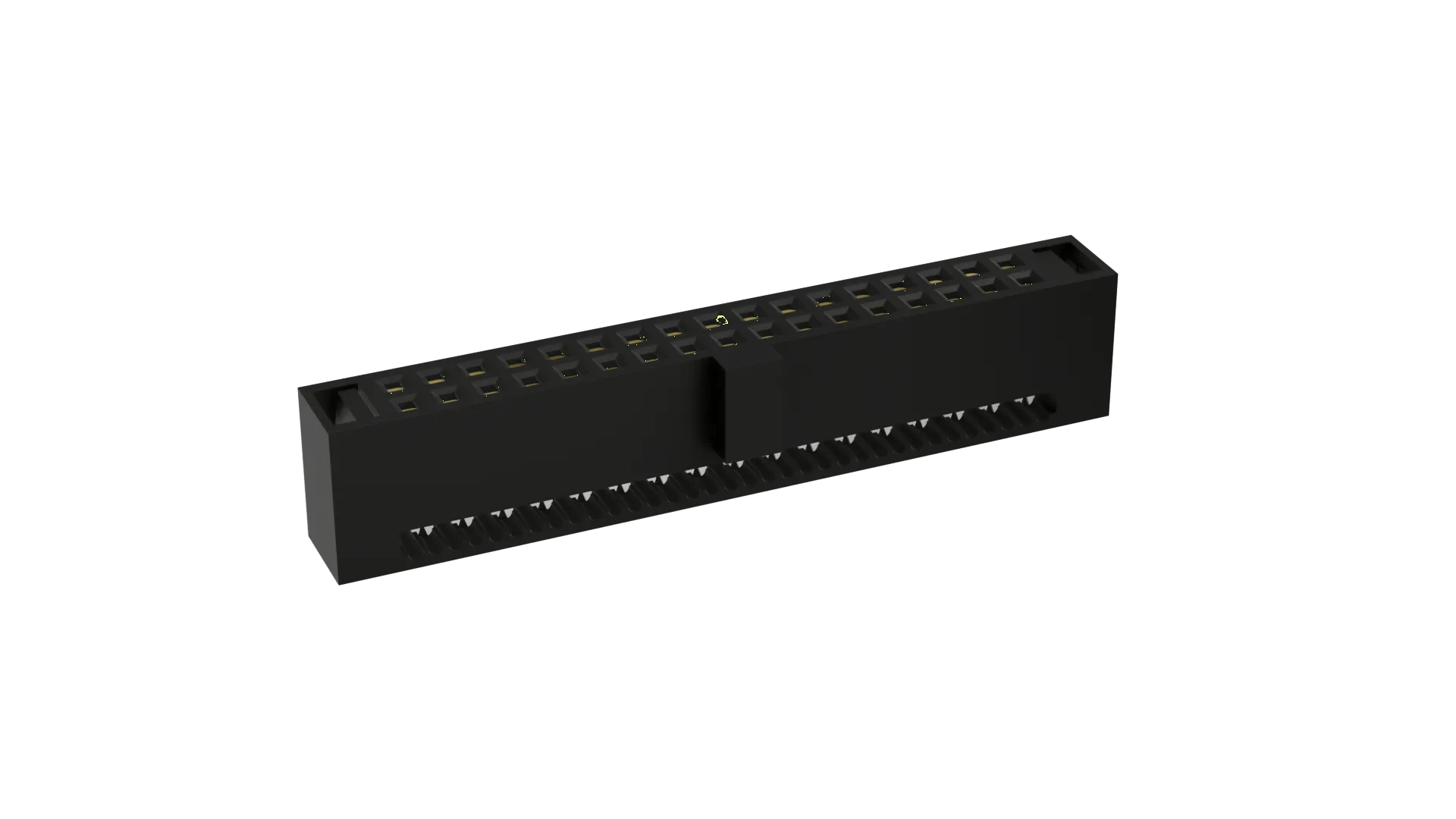

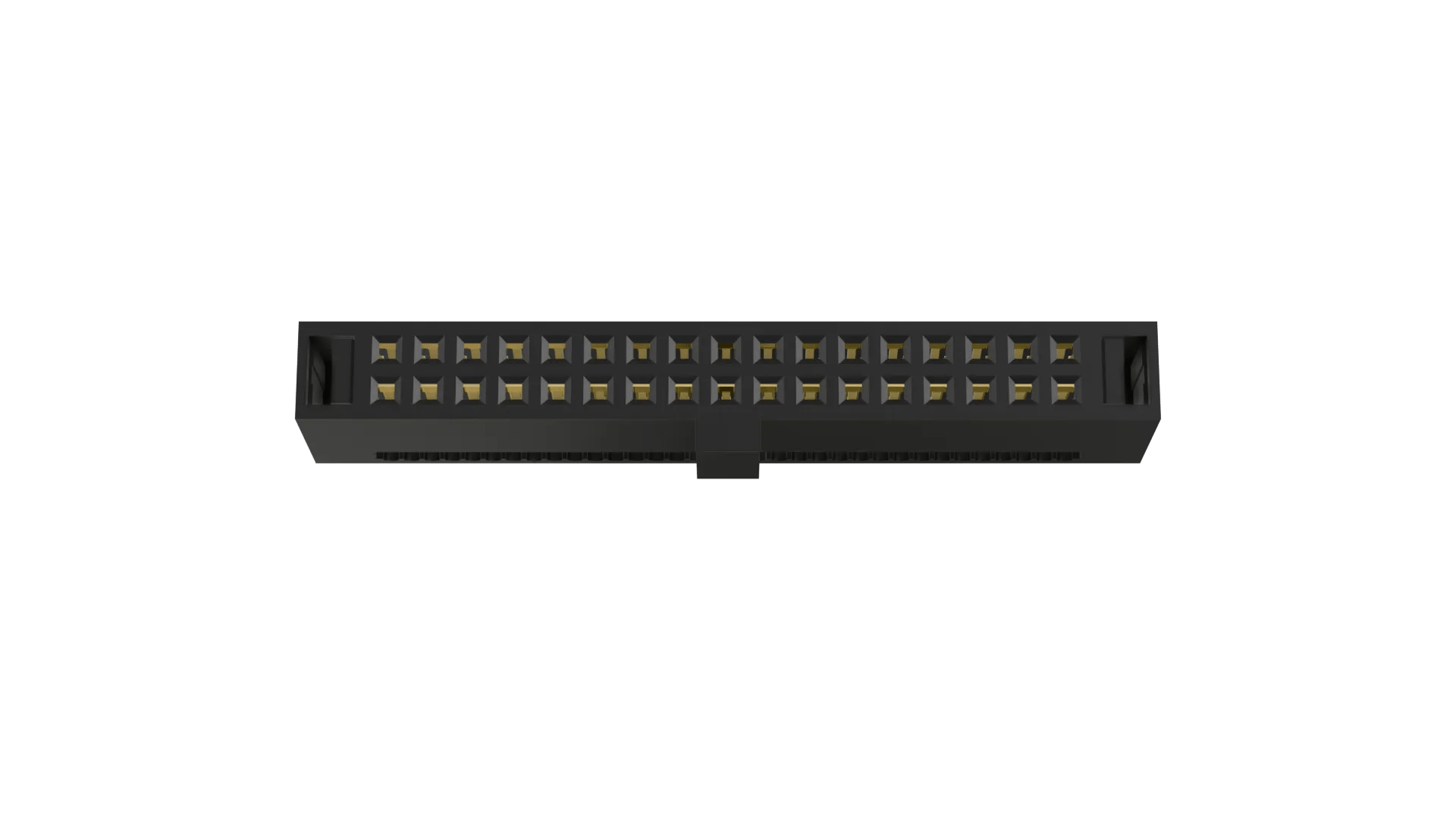

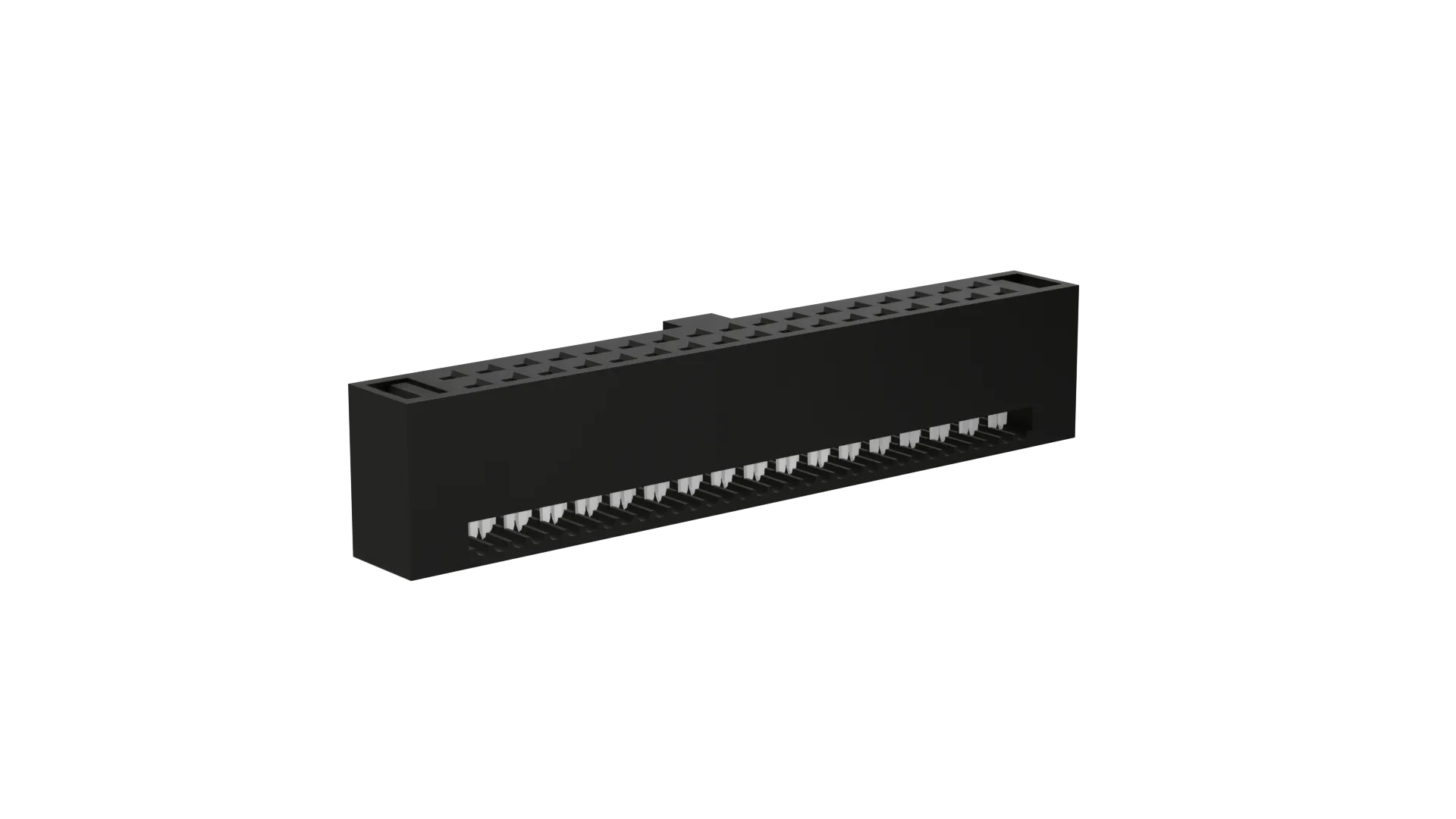

17+17 Pos. Female DIL Ribbon Cable Connector

1.27mm (0.05") Pitch PCB Connector - Archer M50 IDC

Order Sample

Add to Favorites

In stock Check availability

4 similar products View products

Traceparts account required

Product Description

Double Row Female IDC connector with polarization – 34 contacts (17+17).
Gold finish on contact area, Tin finish on termination.
For use with 0.635mm pitch, 30AWG ribbon cable.

M50-3301742 - 17+17 Pos. Female DIL Ribbon Cable Connector

Traceparts account required

Technical Details

EU RoHS Status:

RoHS Compliant (2015/863/EU) with no Exemption required

Contact Pitch:

1.27mm (0.05")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Angled

Connection Type:

Cable (Ribbon IDC)

Mating Pin Size:

0.4mm square

Current Rating:

1A per contact

Operating Temperature:

-40°C to +105°C

Polarising Features:

Yes

End Stackable:

Side Stackable:

Can be cut to another size:

Number of Rows:

Number of Signal Contacts:

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Phosphor Bronze

Housing Material:

PBT

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Bulk/Loose

Individual Part Weight:

0.634g

Overall Dimensions (L x W x D) in mm:

25.79 x 4.05 x 5.10

Mating Profiles:

Catalog page - Archer M50 IDC Specification, Mating Profiles

Frequently Asked Questions Ask a Question

The IDC termination tool for this product is Z50-020 – you can see it listed if you scroll down to Related Products. The instruction sheet for using this tool is IS-43.

Was this answer useful?

Downloads

RoHS Compliant (2015/863/EU) with no Exemption required

PDF Download

How can we help you?

Contact one of our technical experts via “Ask an Expert”, or book a 30 minute technical consultation.

Ask an Expert
Book a meeting
