M50-3301042

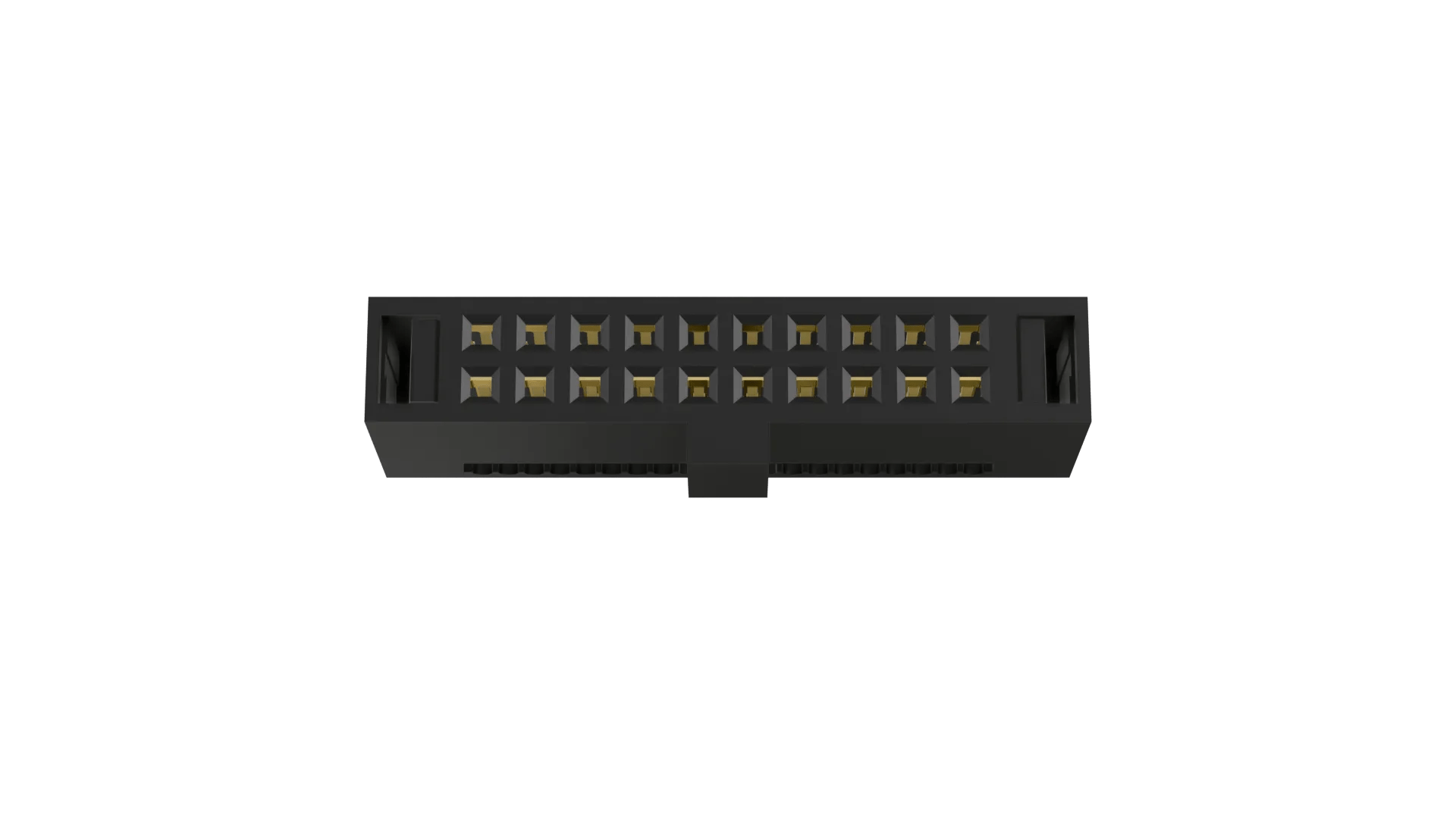

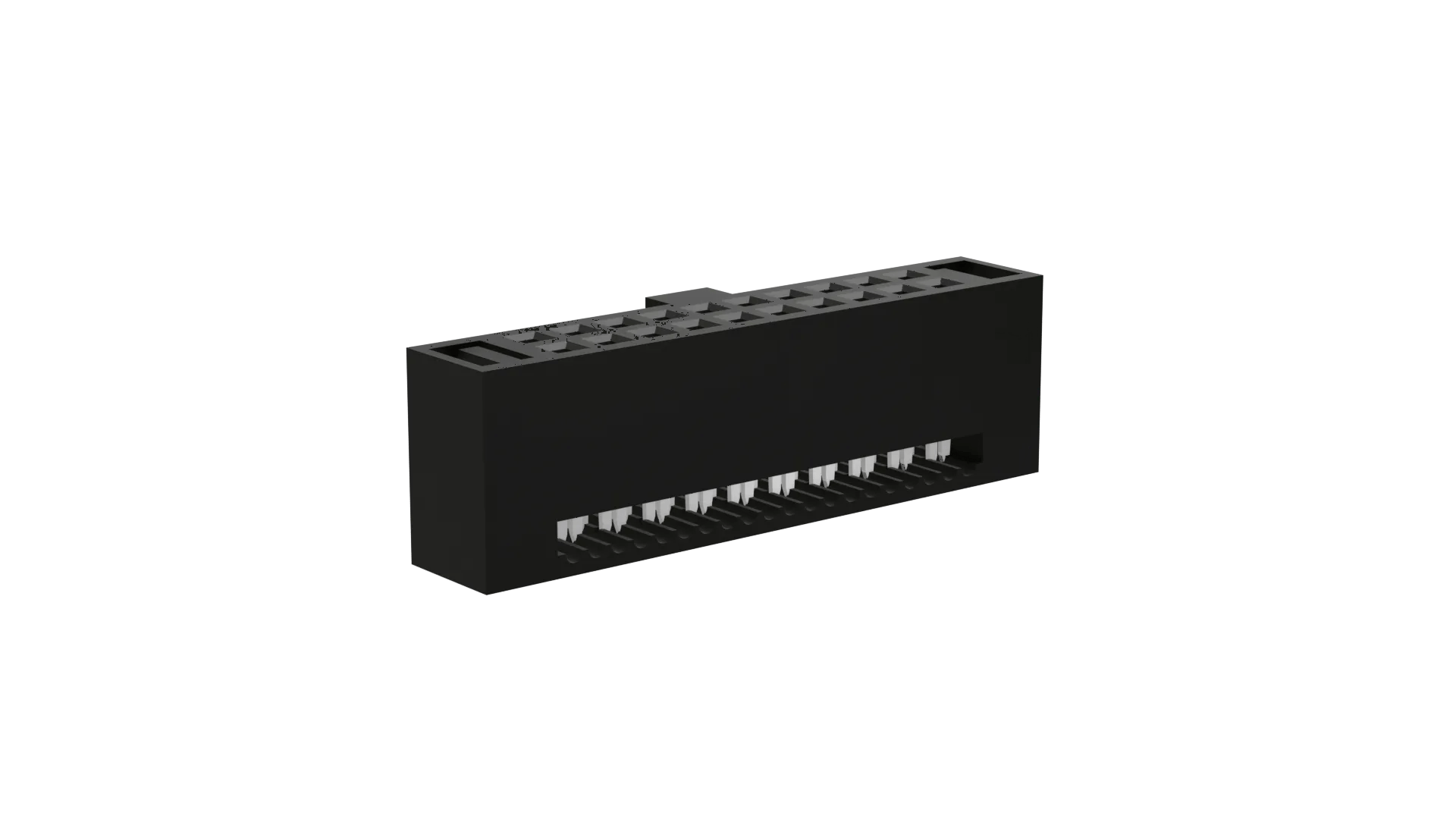

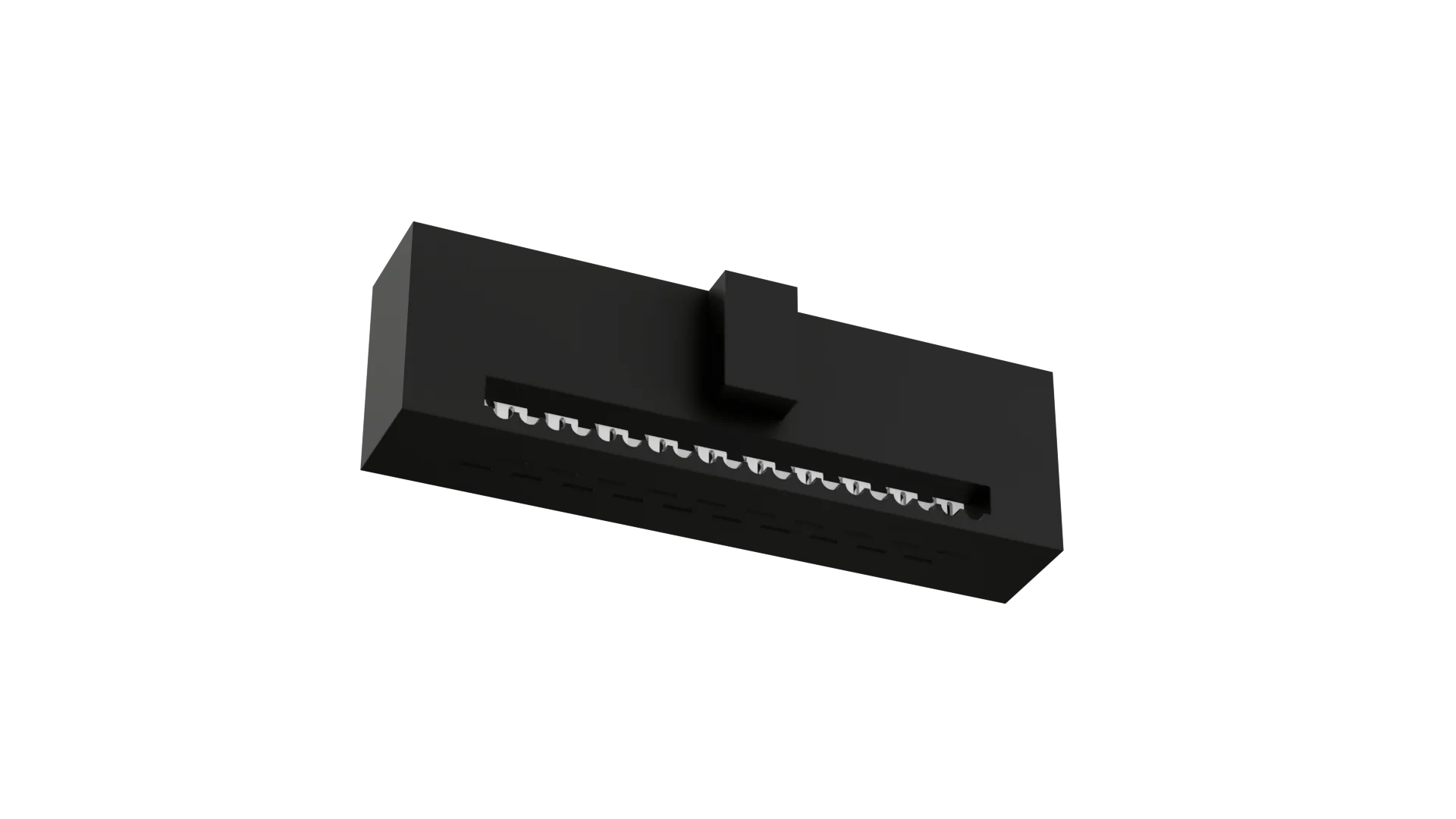

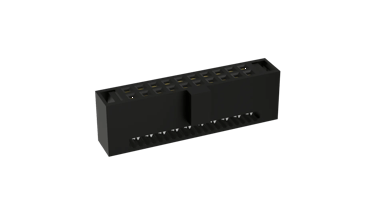

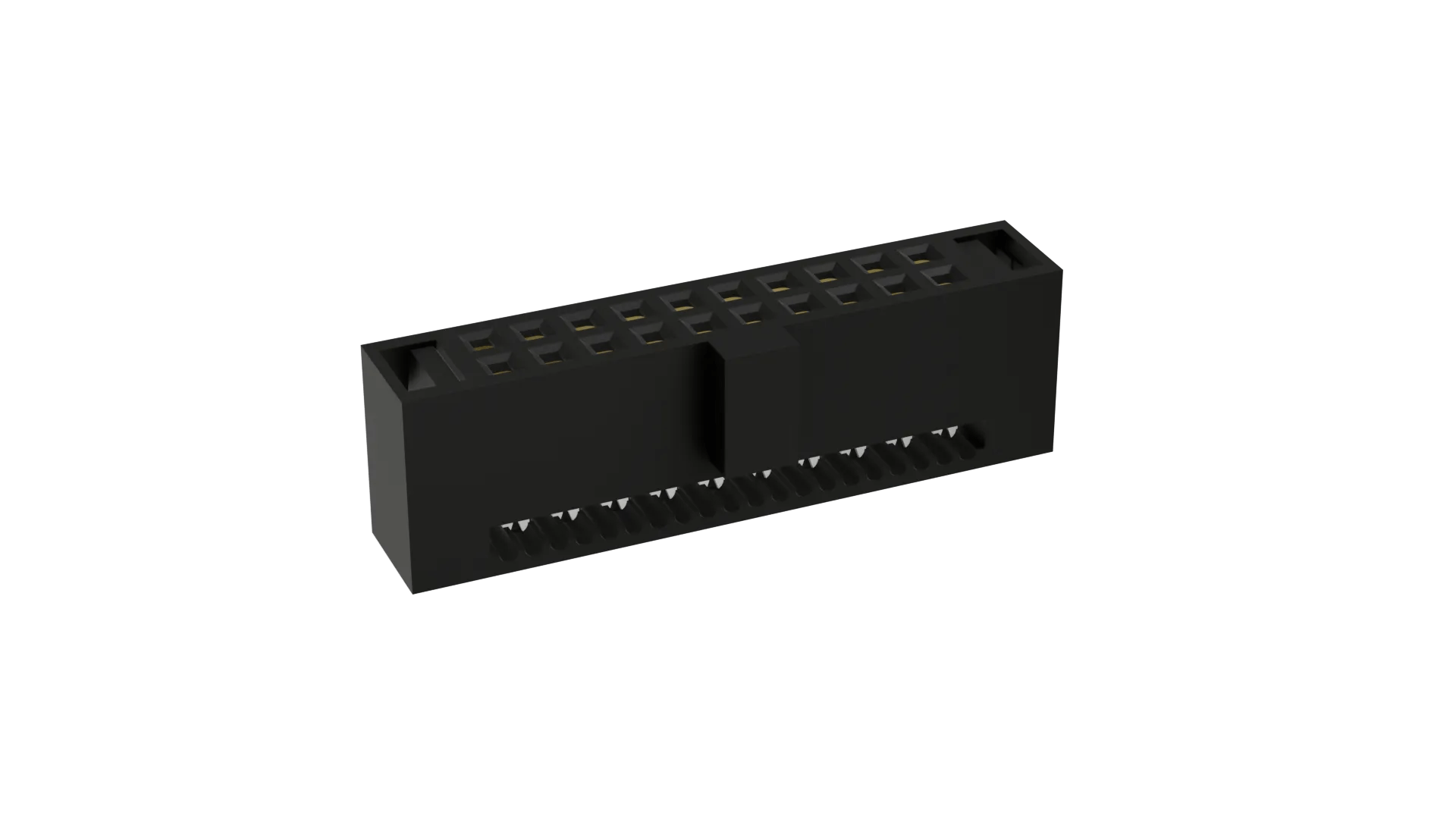

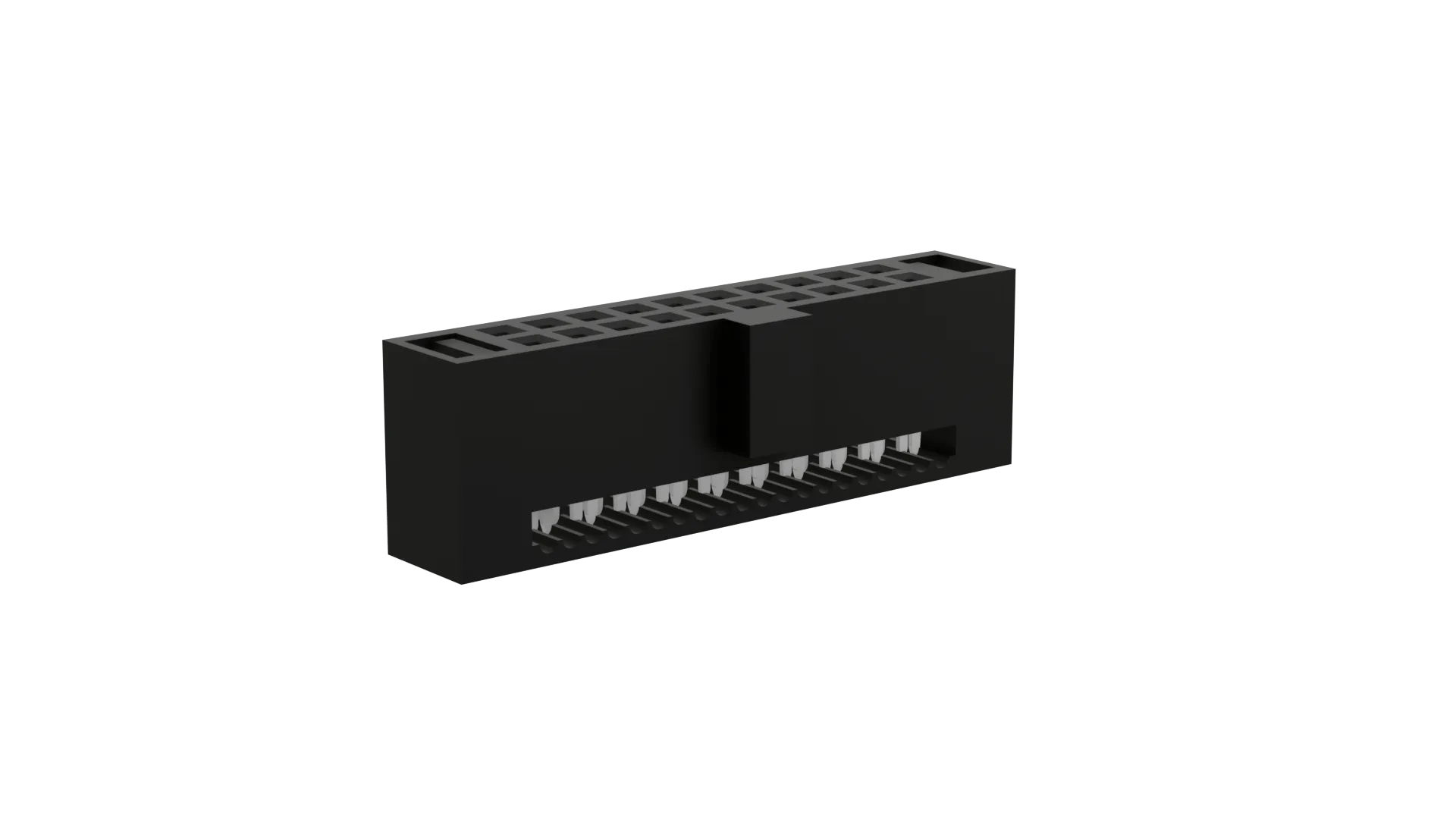

10+10 Pos. Female DIL Ribbon Cable Connector

1.27mm (0.05") Pitch PCB Connector - Archer M50 IDC

  • Double Row Female IDC connector with polarization – 20 contacts (10+10).
  • Gold finish on contact area, Tin finish on termination.
  • For use with 0.635mm pitch, 30AWG ribbon cable.
Add to Favorites

Technical Details

Specification

Contact Pitch:

1.27mm (0.05")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Angled

Connection Type:

Cable (Ribbon IDC)

Mating Pin Size:

0.4mm square

Current Rating:

1A per contact

Operating Temperature:

-40°C to +105°C

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

20

Materials

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Phosphor Bronze

Housing Material:

PBT

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

0.415g

Overall Dimensions (L x W x D) in mm:

16.90 x 4.05 x 5.10

Availability

1,934 in stock

Info Circle

Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.

Popular product
Distributor Location Quantity (Updated Daily)
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 674
Distributor Farnell
Location Europe
Quantity (Updated Daily) 554
Distributor TTI Europe
Location Europe
Quantity (Updated Daily) 340
Distributor TTI Inc
Location USA
Quantity (Updated Daily) 204
Distributor Newark
Location USA
Quantity (Updated Daily) 134
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 18
Distributor Anglia
Location Europe
Quantity (Updated Daily) 10

Questions & Answers Ask a Question

Can you please specify maximum and minimum insertion depth for this connector?

For the minimum depth, the Technical Drawing shows the contact point as 1.90±0.25mm below the mating face. Ideally you should aim for 0.5mm of wipe beyond this point, and you will also want to consider any chamfer on the end of the mating male pin. Maximum insertion depth has not been specifically determined, but should not exceed the 3.2mm height of the housing.

Can you please specify the correct crimping tool for this product?

The IDC termination tool for this product is Z50-020 – you can see it listed if you scroll down to Related Products. The instruction sheet for using this tool is IS-43.
