Active Product

M50-3300542

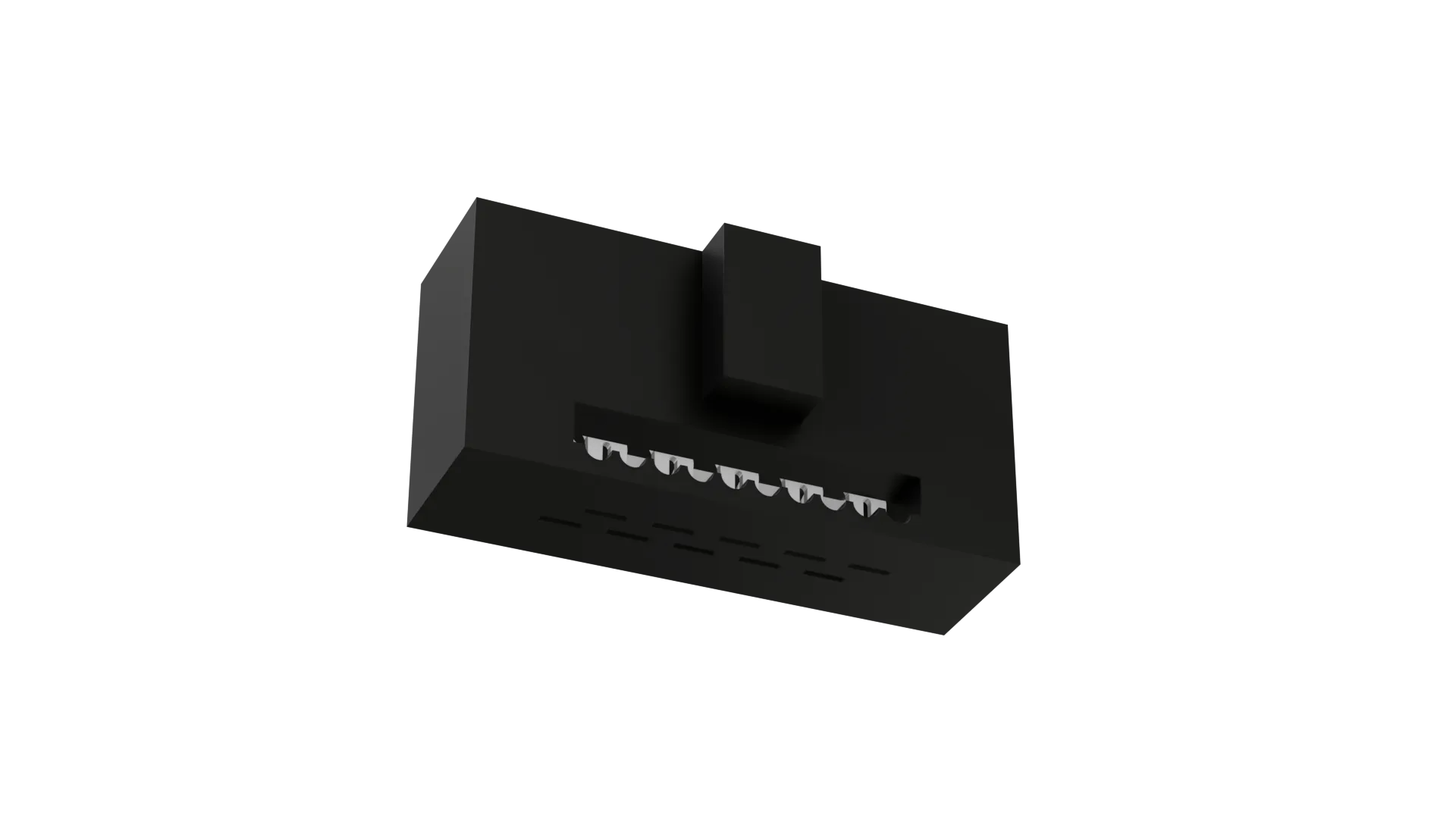

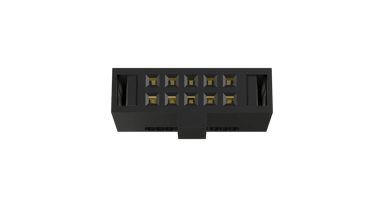

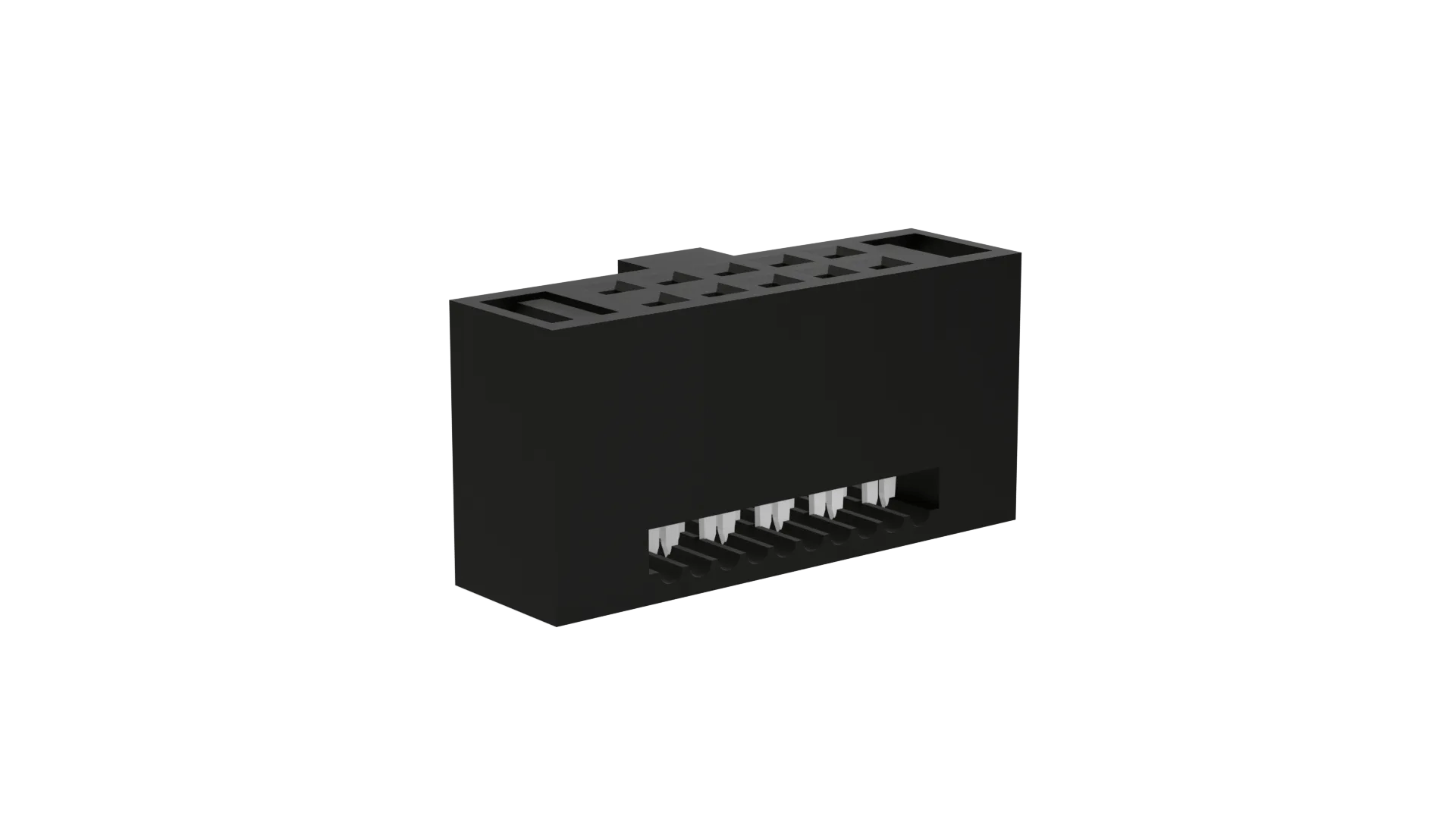

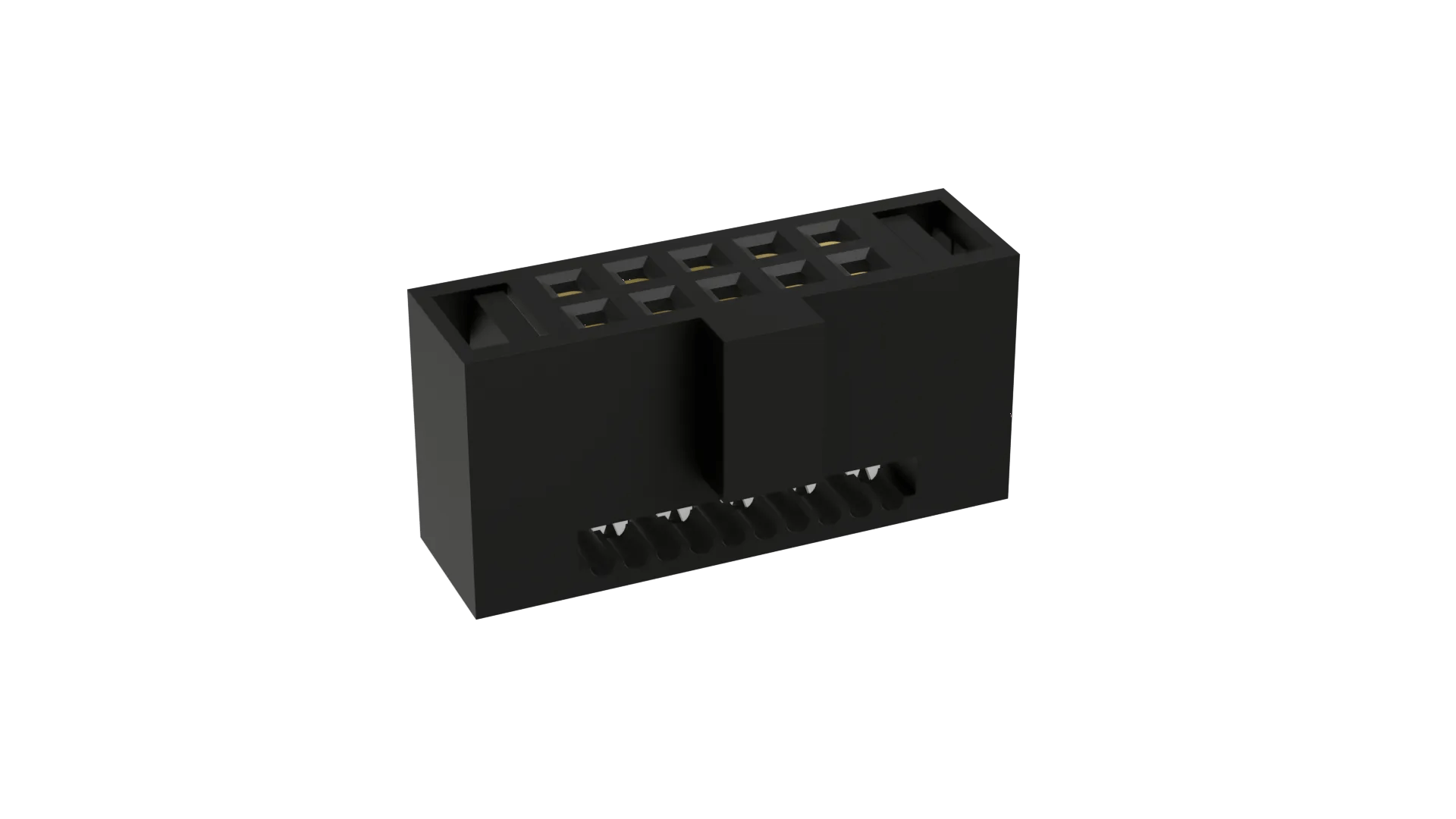

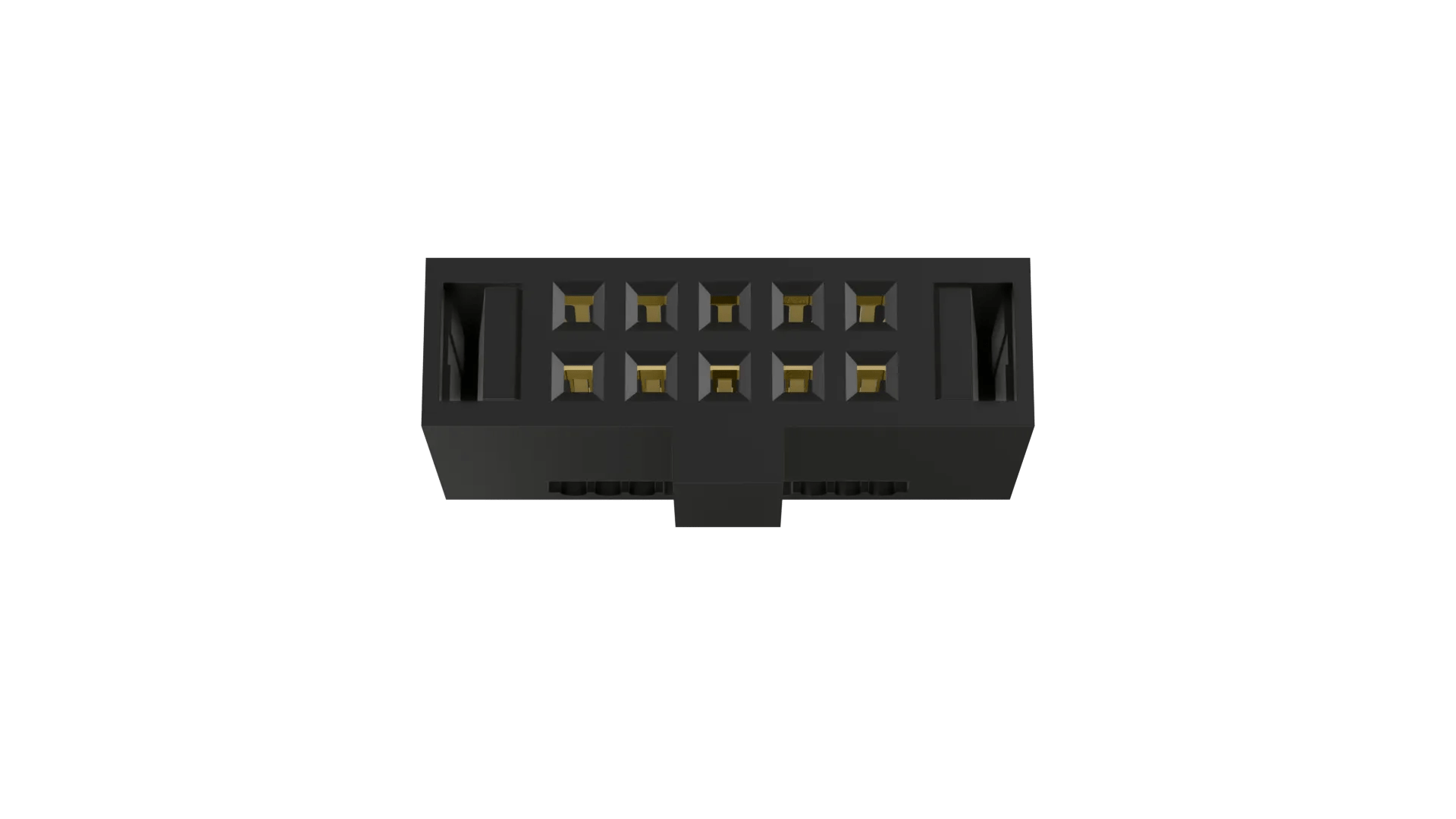

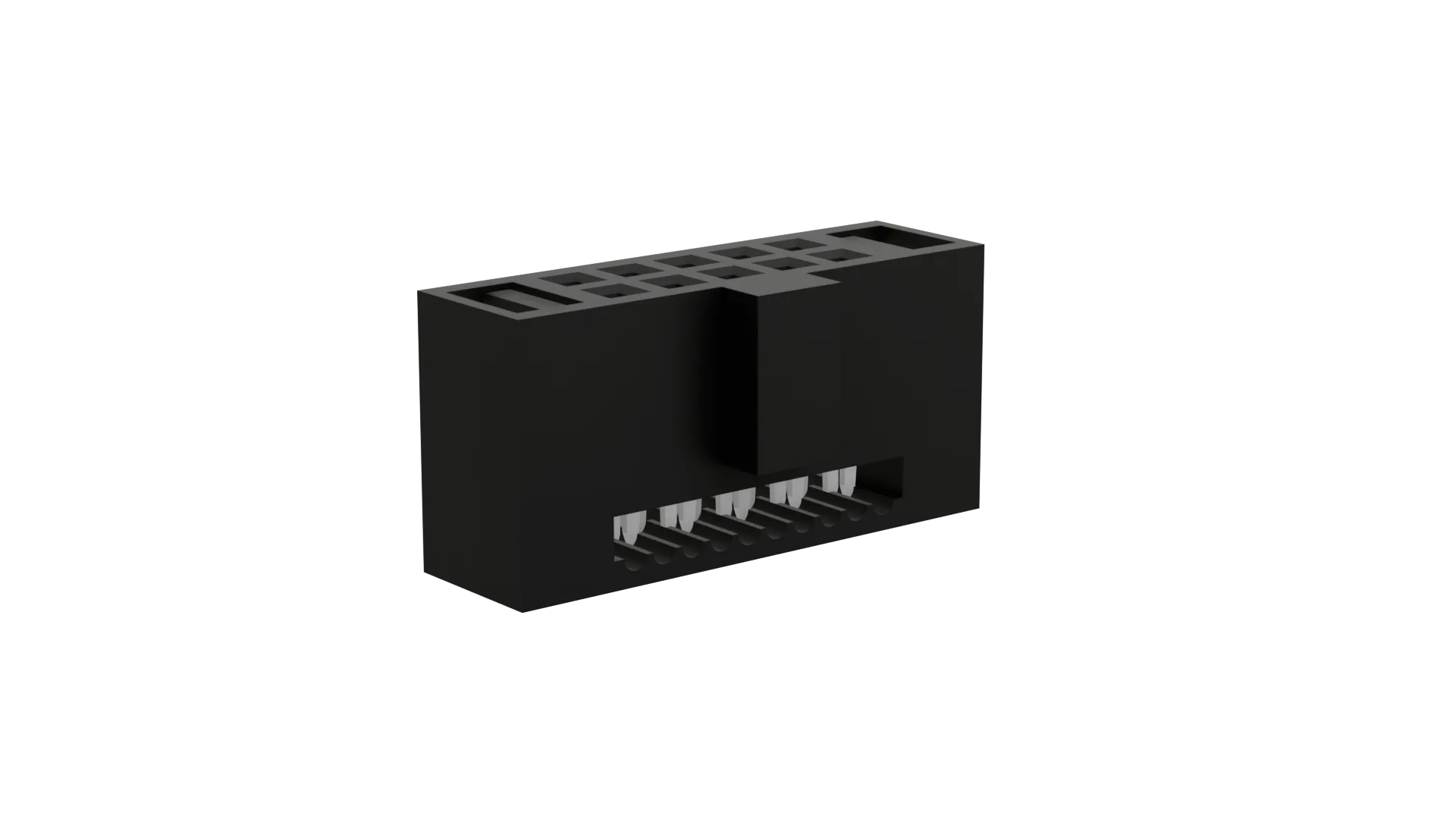

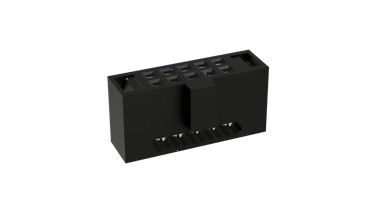

5+5 Pos. Female DIL Ribbon Cable Connector

1.27mm (0.05") Pitch PCB Connector - Archer M50 IDC

Order Sample

Add to Favorites

31,076 in stock Check availability

10 similiar products View products

Samacsys account required

Download

No login is required

Product Description

Double Row Female IDC connector with polarization – 10 contacts (5+5).
Gold finish on contact area, Tin finish on termination.
For use with 0.635mm pitch, 30AWG ribbon cable.

M50-3300542 - 5+5 Pos. Female DIL Ribbon Cable Connector

Samacsys account required

Download

No login is required

Technical Details

EU RoHS Status:

RoHS Compliant (2015/863/EU) with no Exemption required

Contact Pitch:

1.27mm (0.05")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Angled

Connection Type:

Cable (Ribbon IDC)

Mating Pin Size:

0.4mm square

Current Rating:

1A per contact

Operating Temperature:

-40°C to +105°C

Polarising Features:

Yes

End Stackable:

Side Stackable:

Can be cut to another size:

Number of Rows:

Number of Signal Contacts:

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Phosphor Bronze

Housing Material:

PBT

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Bulk/Loose

Individual Part Weight:

0.259g

Overall Dimensions (L x W x D) in mm:

10.55 x 4.05 x 5.10

Mating Profiles:

Catalog page - Archer M50 IDC Specification, Mating Profiles

Frequently Asked Questions Ask a Question

The IDC termination tool for this product is Z50-020 – you can see it listed if you scroll down to Related Products. The instruction sheet for using this tool is IS-43.
