Home > M50-3201245
Active Product

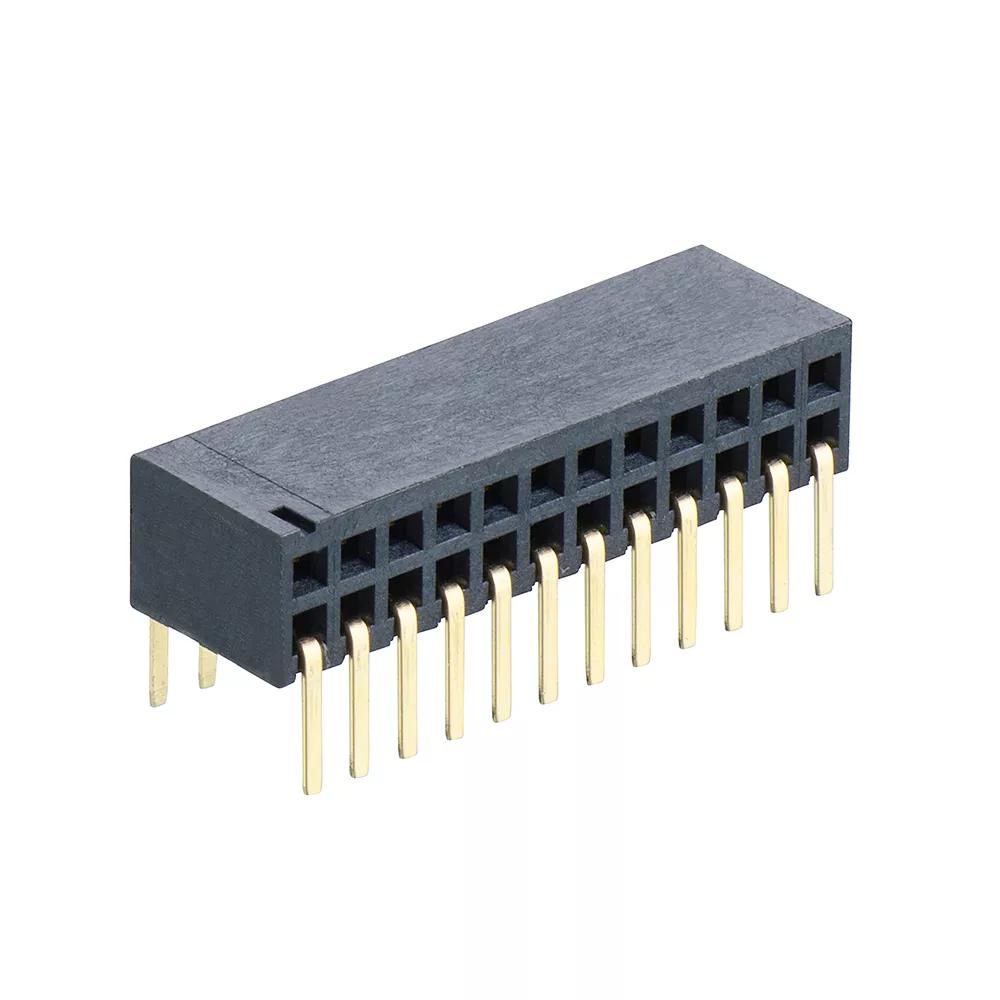

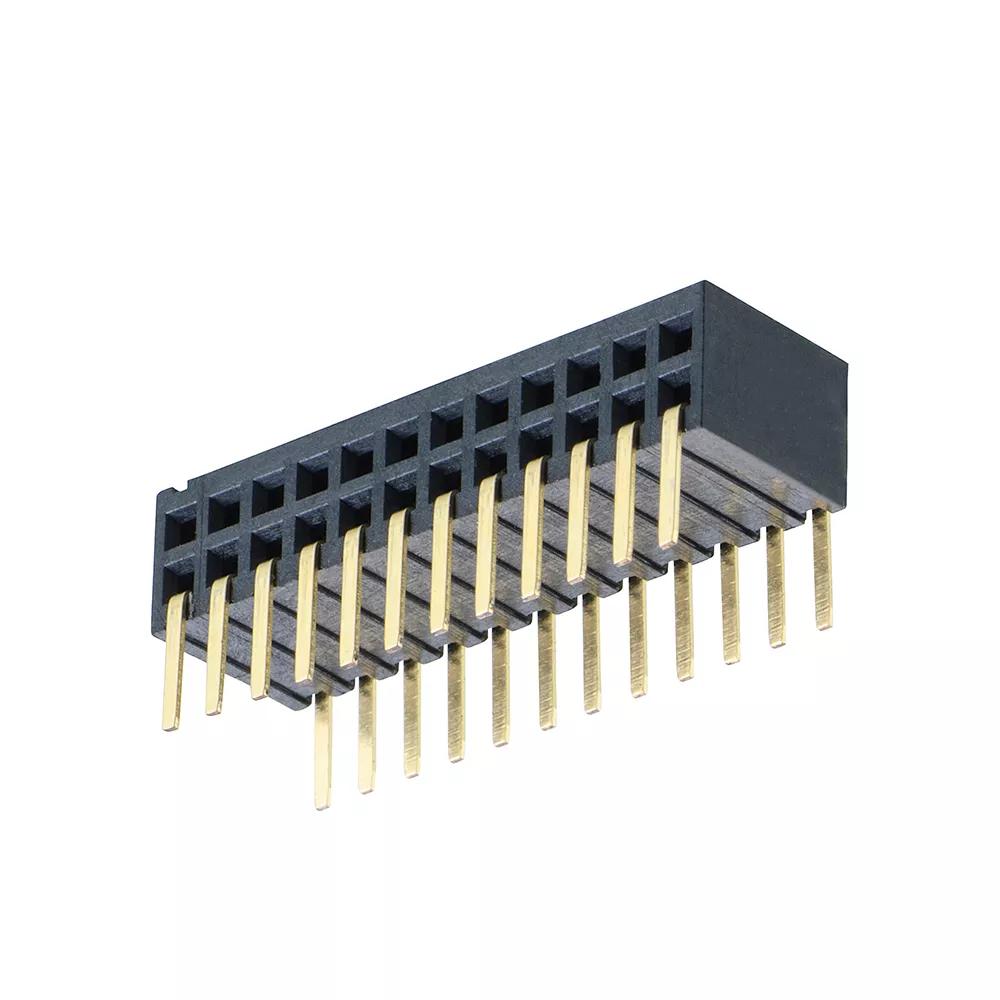

M50-3201245

12+12 Pos. Female DIL Horizontal Throughboard Conn.

1.27mm (0.05") Pitch PCB Connector - Archer M50 Board-To-Board

Add to Favorites

Loading…   Check availability

7 similar products View products

Traceparts account required

Product Description

  • Double Row, 2.4mm PC Tail, 3.45mm connector height – 24 contacts (12+12).
  • Gold finish on contact area and termination.
  • 5.08mm between PC tail rows.

Technical Details

Specification

Contact Pitch:

1.27mm (0.05")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Horizontal

Connection Type:

PC Tail / Throughboard

Mating Pin Size:

0.4mm square

Current Rating:

1A per contact

Operating Temperature:

-40°C to +105°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

24

Entry Style:

Side Entry

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Phosphor Bronze

Housing Material:

Polyamide (Nylon) 9T

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tube

Dimensions

Individual Part Weight:

0.557g

Overall Dimensions (L x W x D) in mm:

15.64 x 5.23 x 5.85

Height of Connector above PCB:

3.45mm

Length of Throughboard Tail:

2.40mm

Frequently Asked Questions Ask a Question

No questions have been asked yet. Click here to ask a question.

Downloads

TECHNICAL DOCUMENTS

ENVIRONMENTAL COMPLIANCE

RoHS Compliant (2015/863/EU) with no Exemption required
