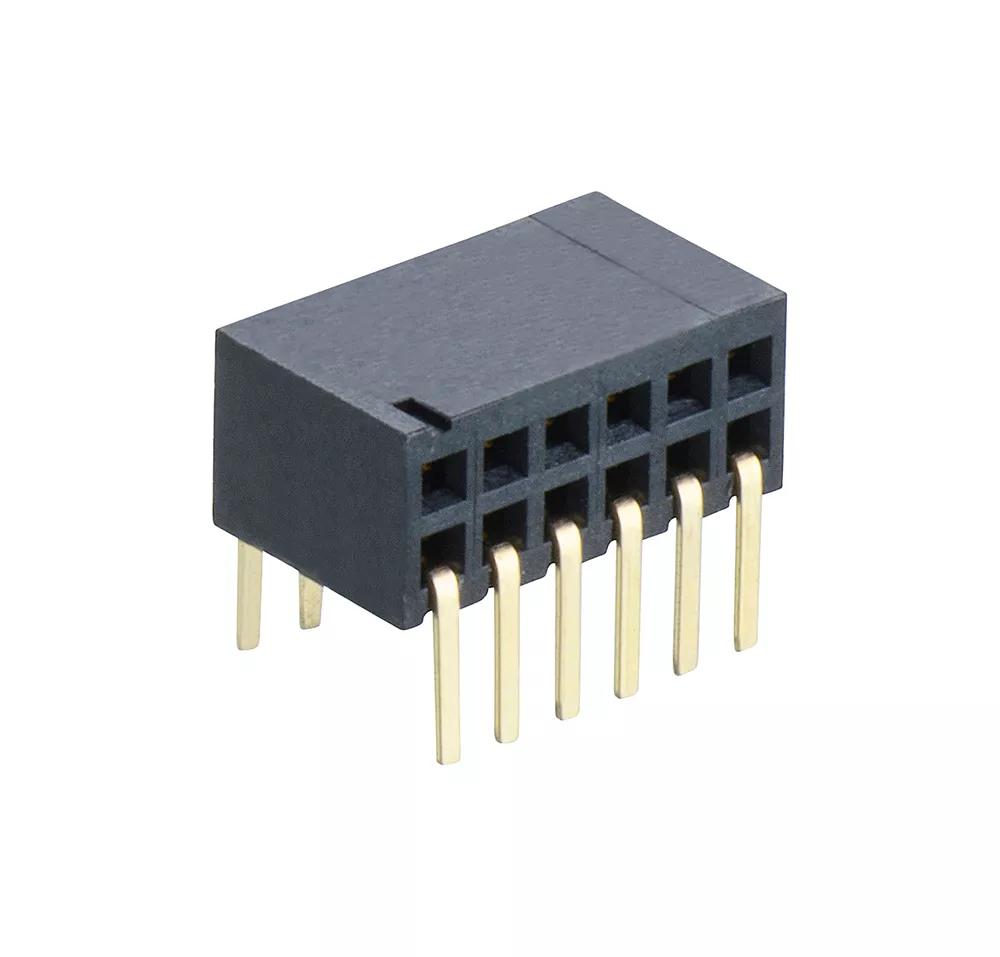

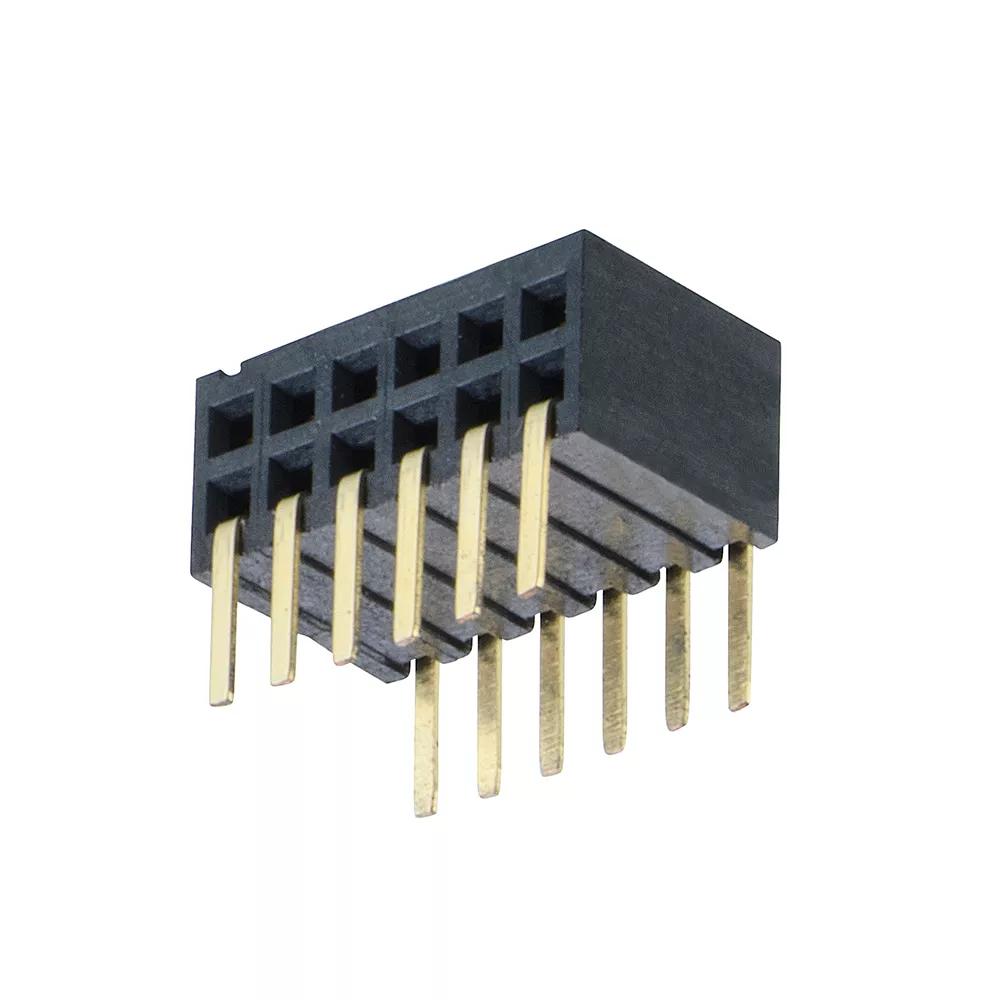

M50-3200645
6+6 Pos. Female DIL Horizontal Throughboard Conn.
1.27mm (0.05") Pitch PCB Connector - Archer M50 Board-To-Board
569 in stock Check availability
8 similiar products View products
Samacsys account required
No login is required
Product Description
- Double Row, 2.4mm PC Tail, 3.45mm connector height – 12 contacts (6+6).
- Gold finish on contact area and termination.
- 5.08mm between PC tail rows.
Samacsys account required
No login is required
Technical Details
Specification
EU RoHS Status:
Contact Pitch:
1.27mm (0.05")
Contact Gender:
Female/Socket/Jack
Connector Orientation:
Horizontal
Connection Type:
PC Tail / Throughboard
Mating Pin Size:
0.4mm square
Current Rating:
1A per contact
Operating Temperature:
-40°C to +105°C
Soldering Data:
Max Solder Temperature: 260°C for 10 seconds
Polarising Features:
No
End Stackable:
No
Side Stackable:
No
Can be cut to another size:
No
Number of Rows:
2
Number of Signal Contacts:
12
Entry Style:
Side Entry
Materials
Finish / Plating on Termination:
Gold
Finish / Plating on Contact Surface:
Gold
Base Material of Contact:
Phosphor Bronze
Housing Material:
Polyamide (Nylon) 9T
Housing Colour:
Black
Housing Material UL Rating:
UL94V-0
Packaging Style:
Tube
Dimensions
Individual Part Weight:
0.278g
Overall Dimensions (L x W x D) in mm:
8.02 x 5.23 x 5.85
Height of Connector above PCB:
3.45mm
Length of Throughboard Tail:
2.40mm
Mating Profiles:
