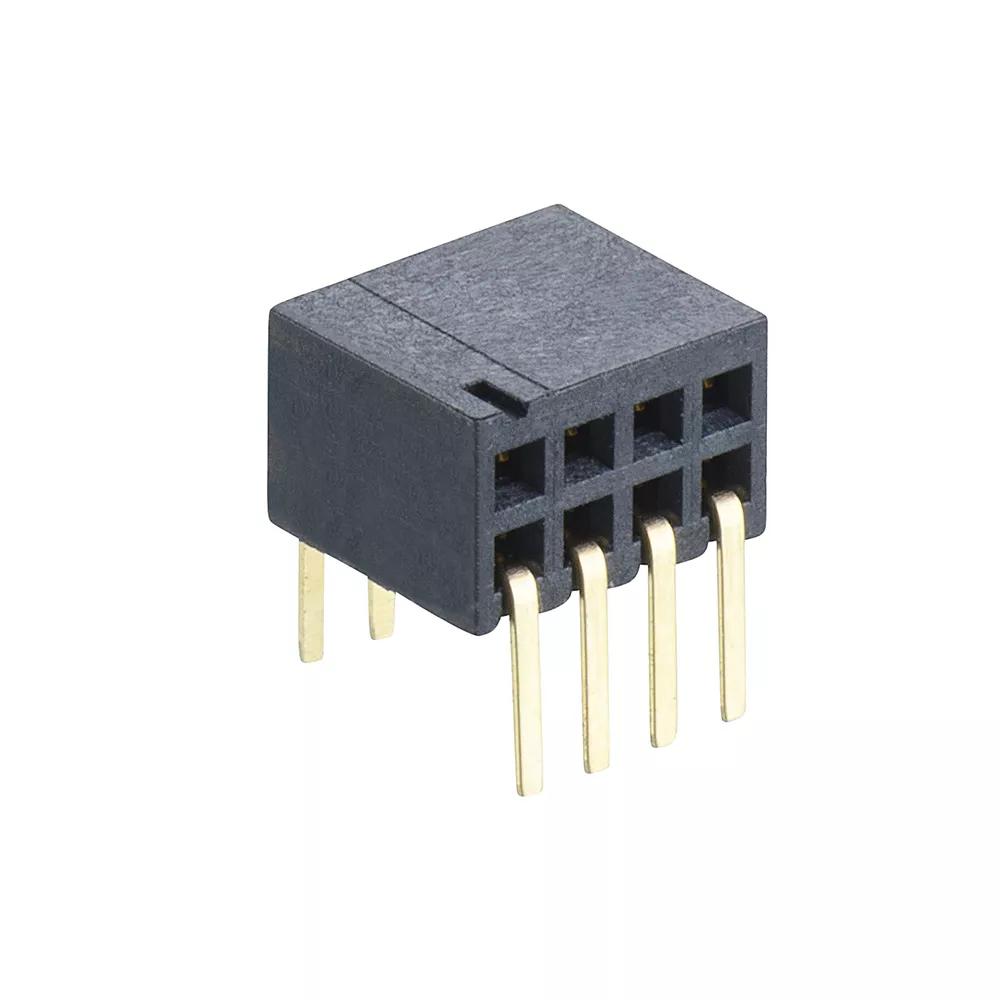

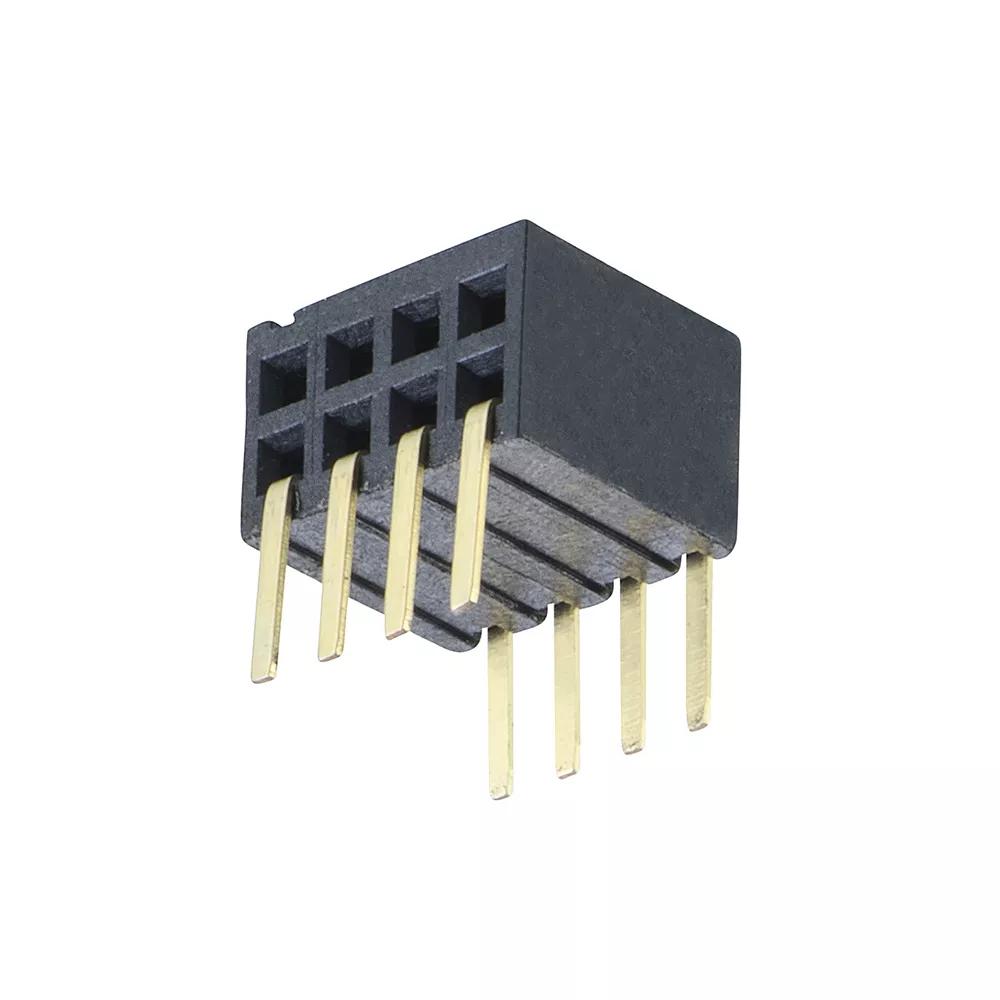

4+4 Pos. Female DIL Horizontal Throughboard Conn.
1.27mm (0.05") Pitch PCB Connector - Archer M50 Board-To-Board
- Double Row, 2.4mm PC Tail, 3.45mm connector height – 8 contacts (4+4).
- Gold finish on contact area and termination.
- 5.08mm between PC tail rows.
EU RoHS Status:
PC Tail / Throughboard
Mating Pin Size:
1A per contact
-40°C to +105°C
Max Solder Temperature: 260°C for 10 seconds
Can be cut to another size:
Number of Rows:
Number of Signal Contacts:
Finish / Plating on Termination:
Finish / Plating on Contact Surface:
Base Material of Contact:
Polyamide (Nylon) 9T
Housing Material UL Rating:
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
5.48 x 5.23 x 5.85
Height of Connector above PCB:
Length of Throughboard Tail:
623 in stock
