M50-3152542

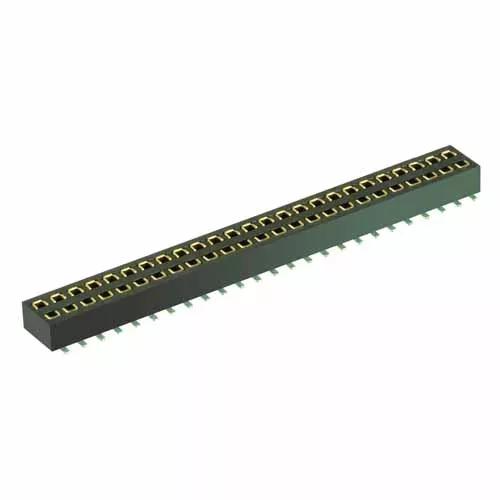

25+25 Pos. Female DIL Vertical SMT Conn.

1.27mm (0.05") Pitch PCB Connector - Archer M50 Board-To-Board

  • Double Row Dual (Top or Bottom) Entry Surface Mount, with location pegs – 50 contacts (25+25).
  • Gold finish on contact area, Tin finish on termination. Low profile – 2.2mm connector height.
  • Packaged in tubes.
Add to Favorites

Technical Details

Specification

Contact Pitch:

1.27mm (0.05")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Vertical

Connection Type:

Surface Mount (SMT)

Mating Pin Size:

0.4mm square

Current Rating:

1A per contact

Operating Temperature:

-40°C to +105°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

50

Entry Style:

Dual Entry (Bottom Entry, Top Entry)

Materials

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Phosphor Bronze

Housing Material:

Polyamide (Nylon) 6T

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tube

Dimensions

Individual Part Weight:

0.445g

Overall Dimensions (L x W x D) in mm:

32.13 x 4.50 x 2.80

Height of Connector above PCB:

2.20mm

Availability

2,401 in stock

Info Circle

Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.

Popular product
Distributor Location Quantity (Updated Daily)
Distributor Anglia
Location Europe
Quantity (Updated Daily) 598
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 125
Distributor TTI Europe
Location Europe
Quantity (Updated Daily) 72
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 65
Distributor Farnell
Location Europe
Quantity (Updated Daily) 11

Stock held by Harwin: contact distributor to purchase.

Distributor Harwin
Location Global
Quantity (Updated Daily) 1530
