M50-3151042

M50-3151042

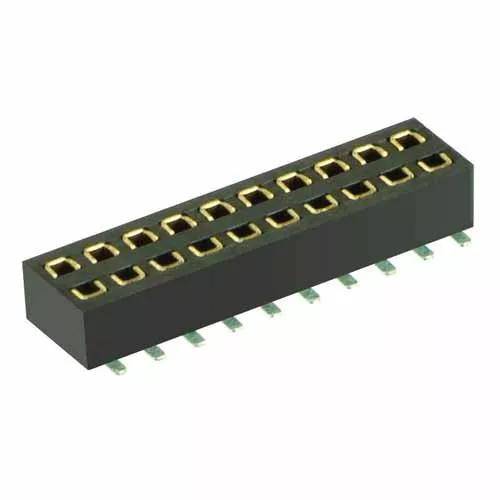

1.27mm (0.05") Pitch DIL Vertical SMT Socket Assembly, location pegs, low profile, selective gold + tin, 10+10 contacts

BBi
BBi

Traceparts account required

M50-3151042

1.27mm (0.05") Pitch DIL Vertical SMT Socket Assembly, location pegs, low profile, selective gold + tin, 10+10 contacts


1.27mm (0.05") Pitch PCB Connector - Archer M50 Board-To-Board

  • Double Row Dual (Top or Bottom) Entry Surface Mount, with location pegs - 20 contacts (10+10).

  • Gold finish on contact area, Tin finish on termination. Low profile - 2.2mm connector height.

  • Packaged in tubes.


Checking stock availability...

Check Availability

Further Details

Jump To:

Technical Details

Specification

Downloads

Environmental Compliance

Technical Documentation

Product Information

Technical Details

Specifications

  • Contact Pitch:

    1.27mm (0.05")

  • Contact Gender:

    Female/Socket/Jack

  • Connector Orientation:

    Vertical

  • PCB Mounting:

    Surface Mount (SMT)

  • Mating Pin Size:

    0.4mm square

  • End Stackable:

    No

  • Side Stackable:

    No

  • Number of Rows:

    2

  • Number of Signal Contacts:

    20

  • Entry Style:

    Dual Entry (Bottom Entry, Top Entry)

  • Finish / Plating on Termination:

    100% Tin over Nickel

  • Finish / Plating on Contact Surface:

    Gold

  • Base Material of Contact:

    Phosphor Bronze

  • Housing Material:

    Polyamide (Nylon) 6T

  • Flammability Rating:

    UL94V-0

  • Packaging Style:

    Tube

  • Height of Connector above PCB:

    2.20mm

  • RoHS Status:

    RoHS Compliant (2015/863/EU) with no Exemption required

  • Connection Type:

    Surface Mount (SMT)

  • Current Rating:

    1A per contact

  • Soldering Data:

    Max Solder Temperature: 260°C for 10 seconds

  • Weight:

    0.181g

  • Dimensions:

    13.08 x 4.50 x 2.80

  • Operating Temperature:

    -40°C to +105°C

  • Country of Origin:

    CN

  • Polarised:

    No

  • Cuttable:

    No

  • Housing Colour:

    Black

Downloads

    Environmental Compliance

  • RoHS - M50-3151042R

  • RoHS - M50-3151042

  • Material composition for M50-315 series

  • REACH - Harwin statement including all current SVHCs & Annex XIV & XVII

  • Conflict Minerals Reporting Template (CMRT) - Company Summary Statement

  • Environmental Legislation Statement - includes all material legislations

  • Extended Mineral Reporting Template (EMRT) - Company Summary Statement

  • Technical Documentation

  • Technical Drawing / Datasheet - M50-315.pdf

  • C029XX Component Specification - Archer M50 and M52 Series (1.27mm pitch PCB connectors)

  • Outgassing data for Harwin products (plastics)

  • Product Information

  • Catalog page - Archer M50 Mating Profiles

  • Product Datasheet - ARCHER: M50 and M52 ranges (BBi)

  • Product Training Module - Overview Guide to the Harwin Archer range
