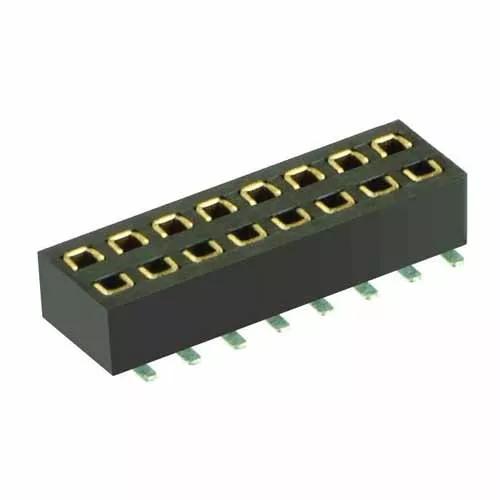

8+8 Pos. Female DIL Vertical SMT Conn.
1.27mm (0.05") Pitch PCB Connector - Archer M50 Board-To-Board
- Double Row Dual (Top or Bottom) Entry Surface Mount, with location pegs – 16 contacts (8+8).
- Gold finish on contact area, Tin finish on termination. Low profile – 2.2mm connector height.
- Packaged in tubes.
EU RoHS Status:
Surface Mount (SMT)
Mating Pin Size:
1A per contact
-40°C to +105°C
Max Solder Temperature: 260°C for 10 seconds
Can be cut to another size:
Number of Rows:
Number of Signal Contacts:
Dual Entry (Bottom Entry, Top Entry)
Finish / Plating on Termination:
100% Tin over Nickel
Finish / Plating on Contact Surface:
Base Material of Contact:
Polyamide (Nylon) 6T
Housing Material UL Rating:
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
10.54 x 4.50 x 2.80
Height of Connector above PCB:
