M50-3150642

6+6 Pos. Female DIL Vertical SMT Conn.

1.27mm (0.05") Pitch PCB Connector - Archer M50 Board-To-Board

Order Sample

Add to Favorites

Loading… Check availability

8 similar products View products

Traceparts account required

Product Description

Double Row Dual (Top or Bottom) Entry Surface Mount, with location pegs – 12 contacts (6+6).
Gold finish on contact area, Tin finish on termination. Low profile – 2.2mm connector height.
Packaged in tubes.

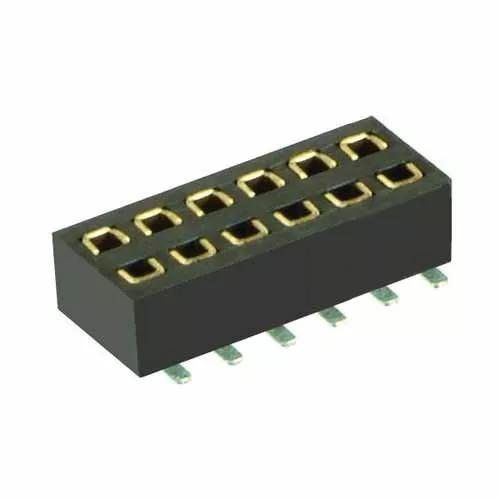

M50-3150642 - 6+6 Pos. Female DIL Vertical SMT Conn.

Traceparts account required

Technical Details

EU RoHS Status:

RoHS Compliant (2015/863/EU) with no Exemption required

Contact Pitch:

1.27mm (0.05")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Vertical

Connection Type:

Surface Mount (SMT)

Mating Pin Size:

0.4mm square

Current Rating:

1A per contact

Operating Temperature:

-40°C to +105°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

End Stackable:

Side Stackable:

Can be cut to another size:

Number of Rows:

Number of Signal Contacts:

Entry Style:

Dual Entry (Bottom Entry, Top Entry)

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Phosphor Bronze

Housing Material:

Polyamide (Nylon) 6T

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tube

Individual Part Weight:

0.111g

Overall Dimensions (L x W x D) in mm:

8.00 x 4.50 x 2.80

Height of Connector above PCB:

2.20mm

Mating Profiles:

Catalog page - Archer M50 Mating Profiles
